DSP 260
Owner‘s Manual 37

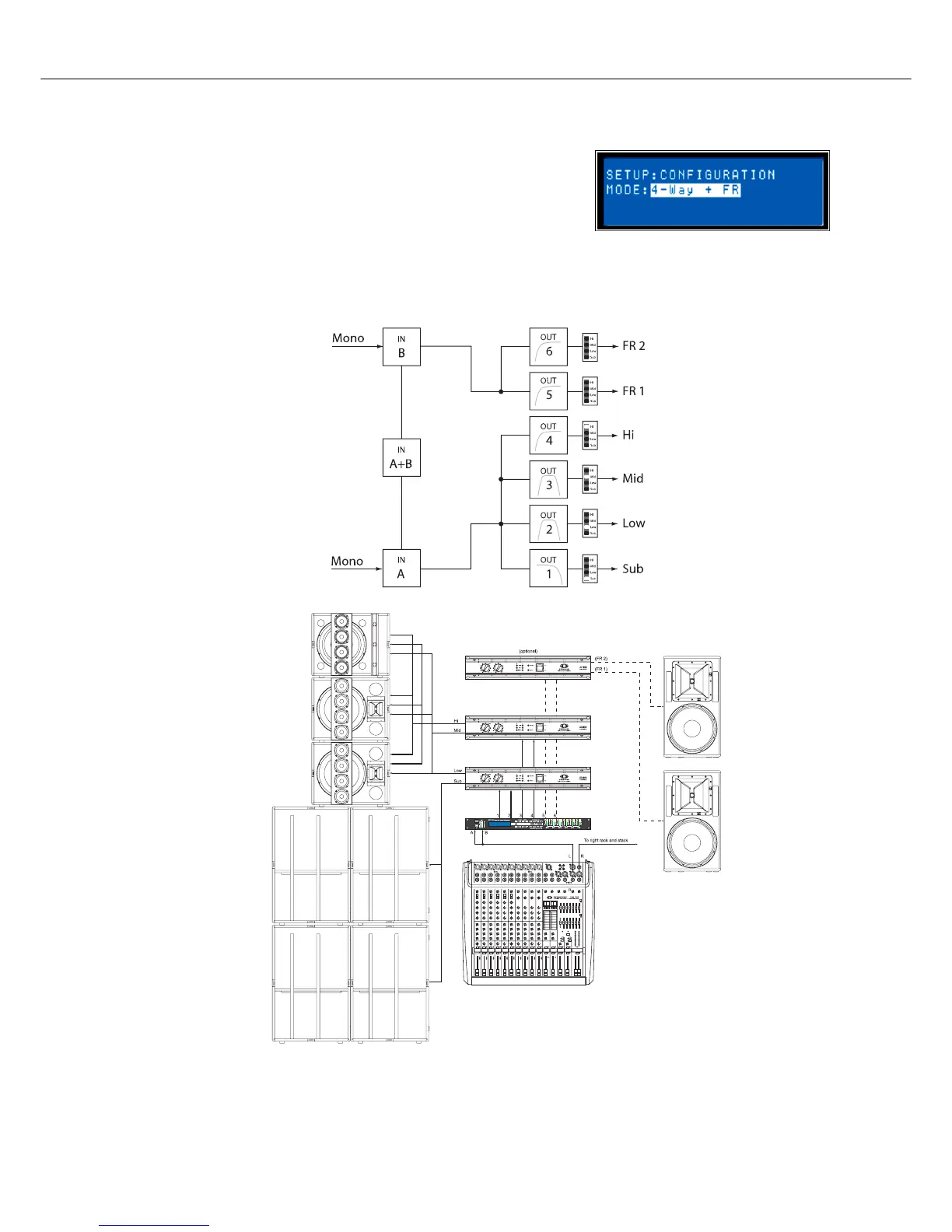

7.3 4-Way + FR
The 4-Way configuration is a monaural 4-way frequency x-over.
Crossover channels are fed from IN A, full range channels are from
IN B. OUT 1 is a mono Sub frequency channel, OUT 2 is a mono
Low-frequency channel, OUT 3 is a mono Mid-frequency channel,
and OUT 4 is the mono High-frequency. OUT 5 and OUT 6 are Full-
range channels.
Note: On Input channels, all Parametric EQ and Graphic EQ parameters are not linked. For Output
channels, linking applies to Crossover Highpass and Lowpass filters (see page 42 for details).
