7.7 4-Way Stereo-MonoSub/LF

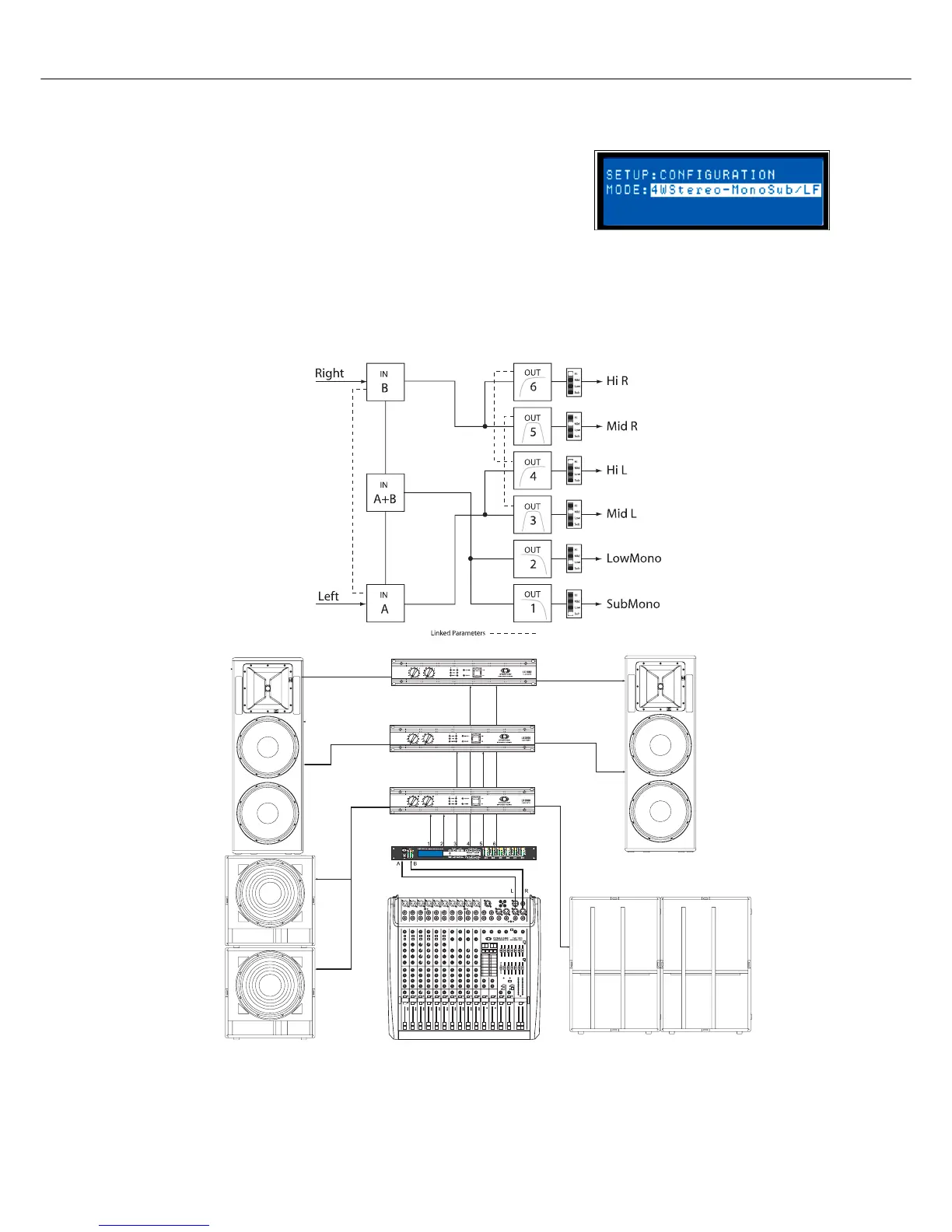

The 4-Way Stereo – MonoSub / LF configuration is a stereo 4-way
frequency x-over. Mono Sub-frequency and Low-frequency
channels are fed from IN A + IN B, Mid-frequency and High-
Frequency left are fed from IN A, Mid-frequency and High-
Frequency right are fed from IN B. OUT 1 is a mono Sub-frequency
frequency channel, OUT 2 the mono Low-frequency channel, OUT 3 is the left Mid-frequency channel,
OUT 4 is the left High-frequency channel , OUT 5 is the right Mid-frequency channel and OUT 6 is the right
High-frequency channel.
Note: On Input channels, all Parametric EQ and Graphic EQ parameters are linked. For Output channels,
linking applies to Crossovers, EQ, Delay Level and Limiter.
Low
(Mono)
Hi L
Mid L
Sub
Hi R
Mid R
To Next Page
