DSP 260
36 Owner‘s Manual

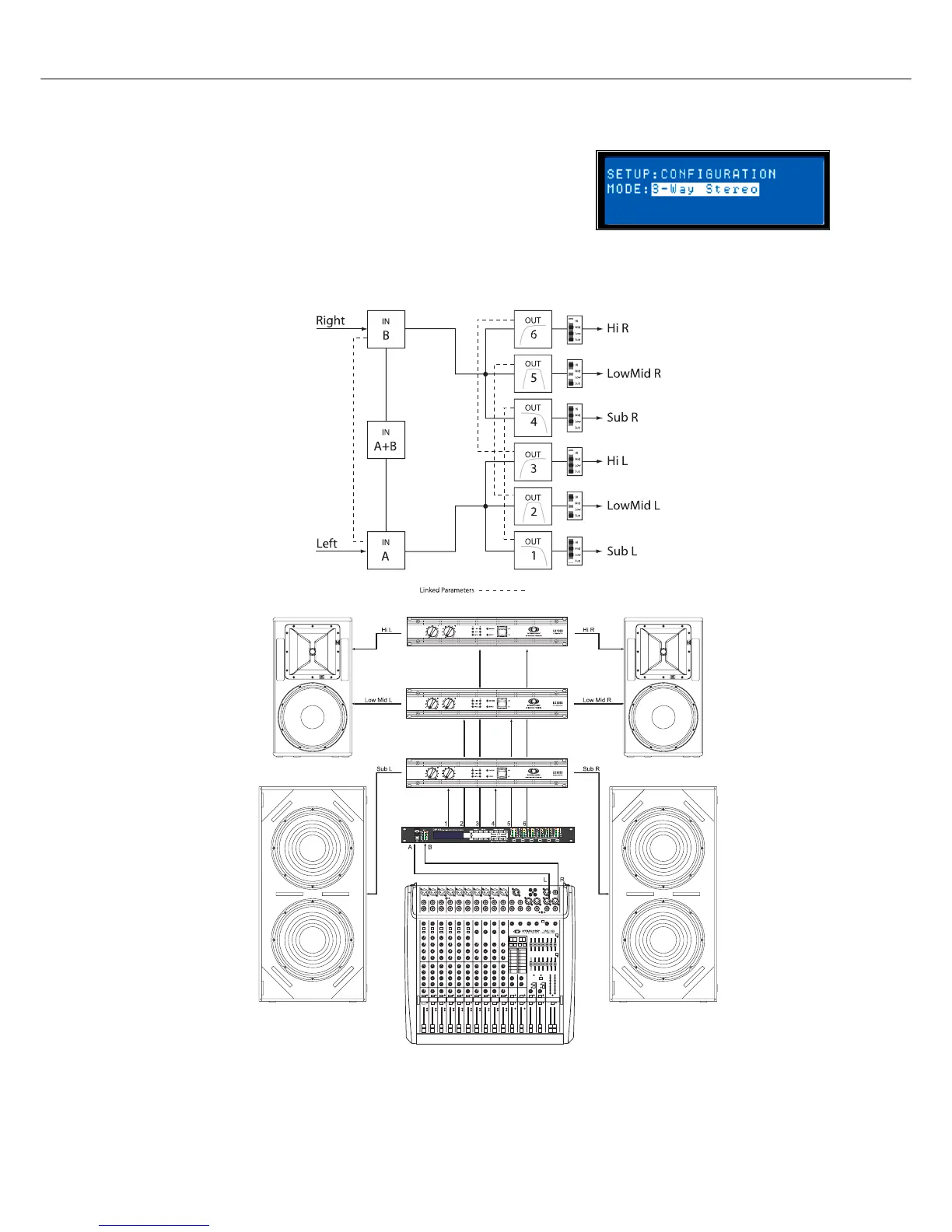

7.2 3-Way Stereo
This configuration represents a 3-way frequency crossover where IN
A serves as the left input channel and IN B as the right input
channel. OUTs 1 & 4 L/R are the Sub frequency channel, OUT 2 &5
L/R are Low and Mid-frequency channels, 3 & 6 L/R are the High-
frequency channels.
Note: On Input channels, all Parametric EQ and Graphic EQ parameters are linked. For Output channels,
linking applies to Crossovers, EQ, Delay Level and Limiter.
