reason, the time and date will need to be reset when the DU is re-activated.
IMPORTANT FEATURE: Survey Data Storage is NOT affected by the removal of the batteries.
However, be sure to use reasonably fresh batteries when downloading data from the DU.
2.3 Getting Started

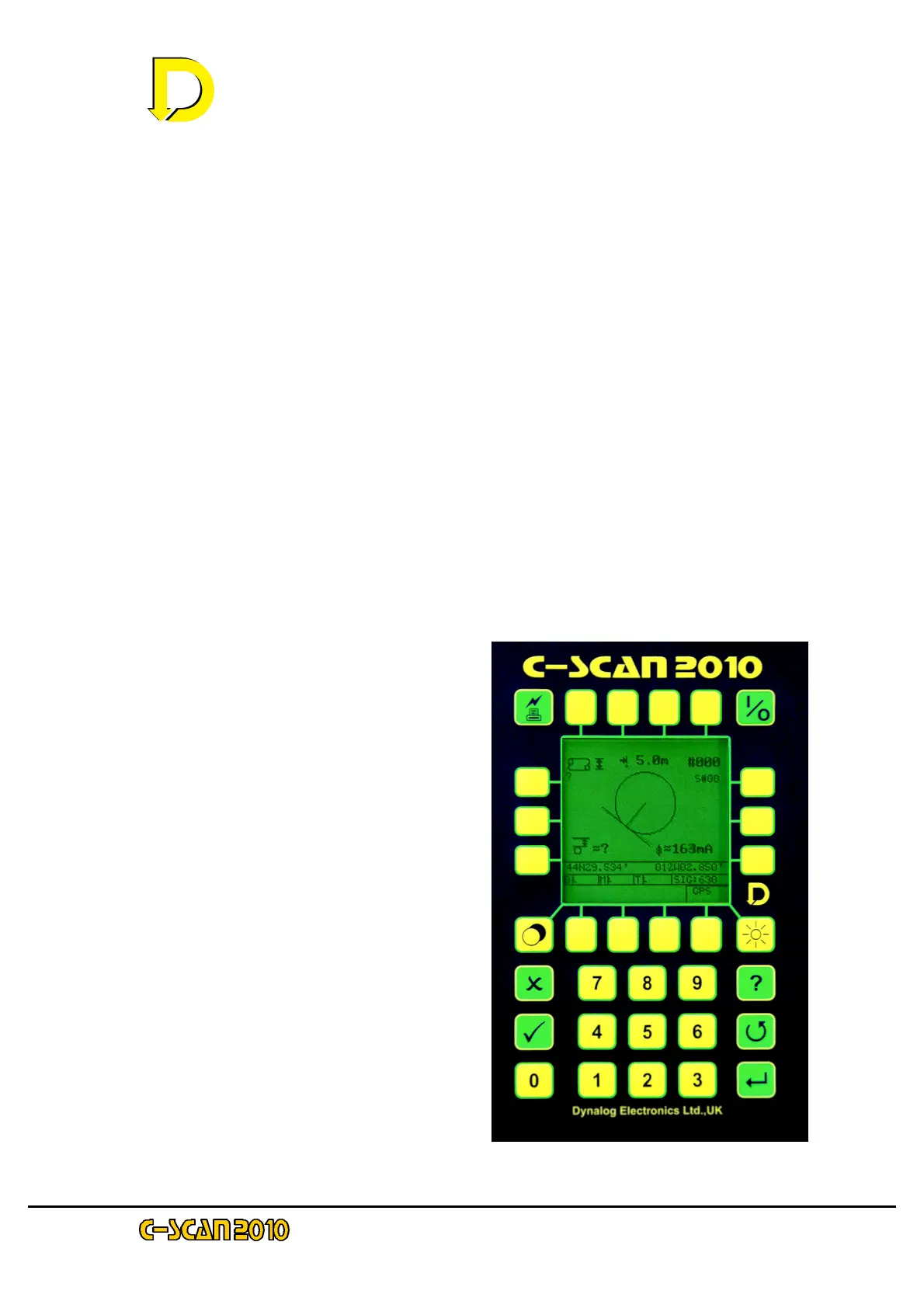

2.3.1 The display screen and keypad
The C-SCAN 2010 is the next generation design in the 2000 series Pipeline Survey
System. The system increases the speed and accuracy and includes more statistical
features for noise reduction, including:
• Built in Global Positioning System (GPS) unit for precision position indication.
• Attenuations can be calculated using GPS position information
• Full graphic interface allows the displaying of data without the use of a laptop or PC.
The Search facility displays:
• Pipeline position
• GPS position
• Approximate Depth/Cover
• Pipeline diameter
• Survey and location number
• Facility for recording pipeline
diameter and wall thickness.
• Display of approximate coating
conductance in µS/m
2
.
• Display of approximate coating
resistance in ¿/m
2
• Symbol inclusion for landscape
features
• Graphs include:
Attenuation – by chainage
or increment
Depth – cover or
to centre line
Current – including
close interval plots
GPS position –
show the plan
