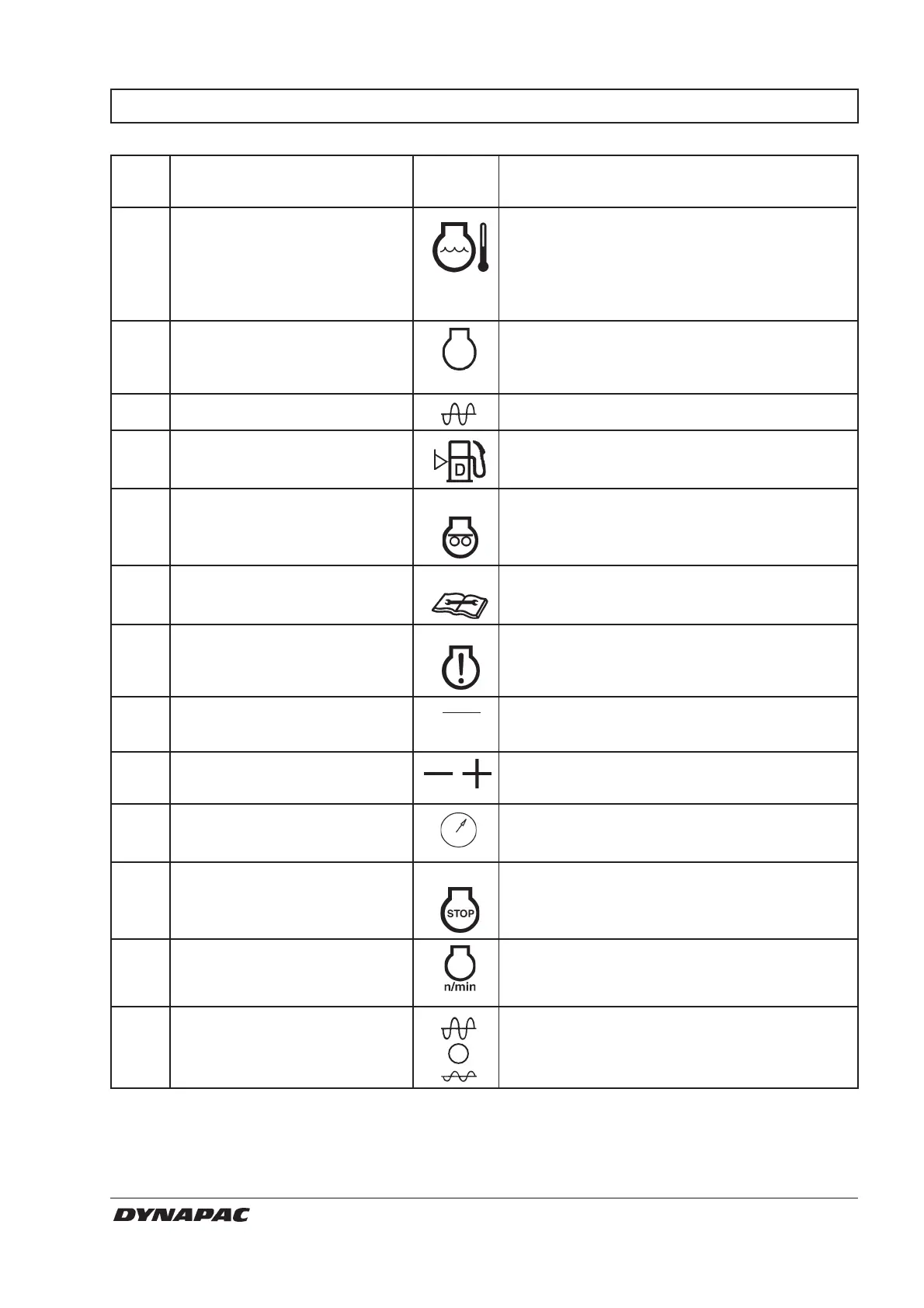

Item in Designation Symbol Function
fig. 7
12 Temperature gauge, Indicates engine temperature.
meter, (Optional) Normal temperature is about 90°C (194°F).
Stop the engine if the gauge indicates a
temperature higher than 103°C (217°F).
Locate and remedy the fault.
13 Engine revs/Frequency The inner scale shows the actual engine
meter, (Optional) speed. The outer scale shows the vibration
frequency.
14 Compaction meter (Optional) See separate instructions.
15 Fuel gauge Indicates fuel level.
16 Preheating of diesel engine Green Lights when preheating temperature is not right.
17 Service indicator lamp White If the lamp lights for a few seconds, it is time
for the 250-hour service.
18 Fault alarm lamp, Yellow Indicates fault and displays error code
not serious fault together with 19. See error codes under
brace 7 in the machine binder.
19 Diagnostic "ON" Checks error code together with lamp 18
and 20.
20 Scroll through error codes. Turn right to scroll forward.
Turn left to scroll backward.
21 Speedometer (Optional) The outer scale shows roller speed in km/h.
The inner scale shows roller speed in mph.
22 Fault alarm lamp, serious fault Red Stop the engine.
23 Rev selector, diesel engine 900 = Idling revs
1500 = Revs for loading/unloading
2200 = Working and transport revs
24 Amplitude selector Left mode gives low amplitude.
Right mode gives high amplitude.
Vibration switched OFF in O mode.
INSTRUMENTS AND CONTROLS, FUNCTIONAL DESCRIPTION
