12 CA 602 O602EN1

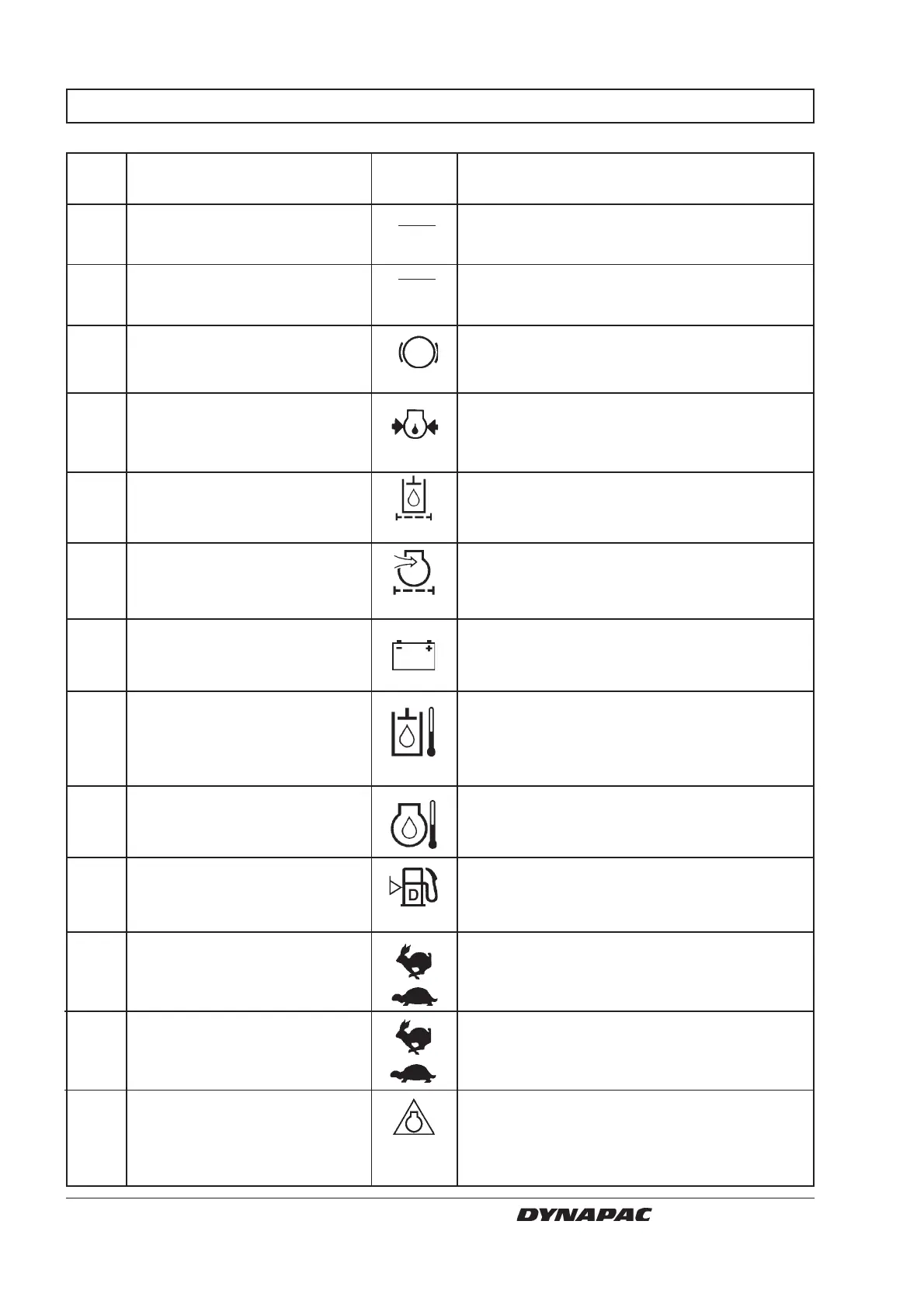

Item in Designation Symbol Function
fig. 7
25 CMV selector (Optional) Mode 150 gives reading on outer scale.
Mode 50 gives reading on inner scale.
26 Hourmeter Engine running time is indicated in hours.
27 Brake warning lamp This lamp will light when the parking or re
serve brake knob is pressed and the brakes
are applied.
28 Warning lamp, oil pressure This lamp lights if lubricating pressure in the
engine is too low.
Stop the engine immediately and locate the fault.
29 Warning lamp, hydraulic filter If the lamp lights up when the diesel engine is
running at full speed, the hydraulic fluid filters
must be replaced.
30 Warning lamp, air filter The air filter should be cleaned or replaced if
this lamp lights when the engine is running at
full speed.
31 Warning lamp, battery The alternator is not charging if this lamp
charging lights when the engine is running.
Stop the engine and locate the fault.
32 Warning lamp, hydraulic This lamp lights if the hydraulic fuel is too hot.
temperature Stop the roller, and allow the fluid to cool
down by idling the engine. Locate and remedy
the fault.
33 Warning lamp, This lamp lights if the engine is too hot. Stop
engine temperature the engine immediately and locate and
remedy the fault. See also the engine manual.
34 Warning lamp, low fuel level This lamp lights when there is only sufficient
fuel left for a short period. Refuel without
delay.
35 Speed selector, drum Transport speed (High)
(Optional)
Working speed (Low)
36 Speed selector, rear axle Transport speed (High)
Working speed (Low)
37 Reserve brake/Parking brake Push in to activate the reserve brake. Parking
brake is applied if pushed in when machine is
stationary. Both brakes are released when
knob is pulled out.
STOP
INSTRUMENTS AND CONTROLS, FUNCTIONAL DESCRIPTION
