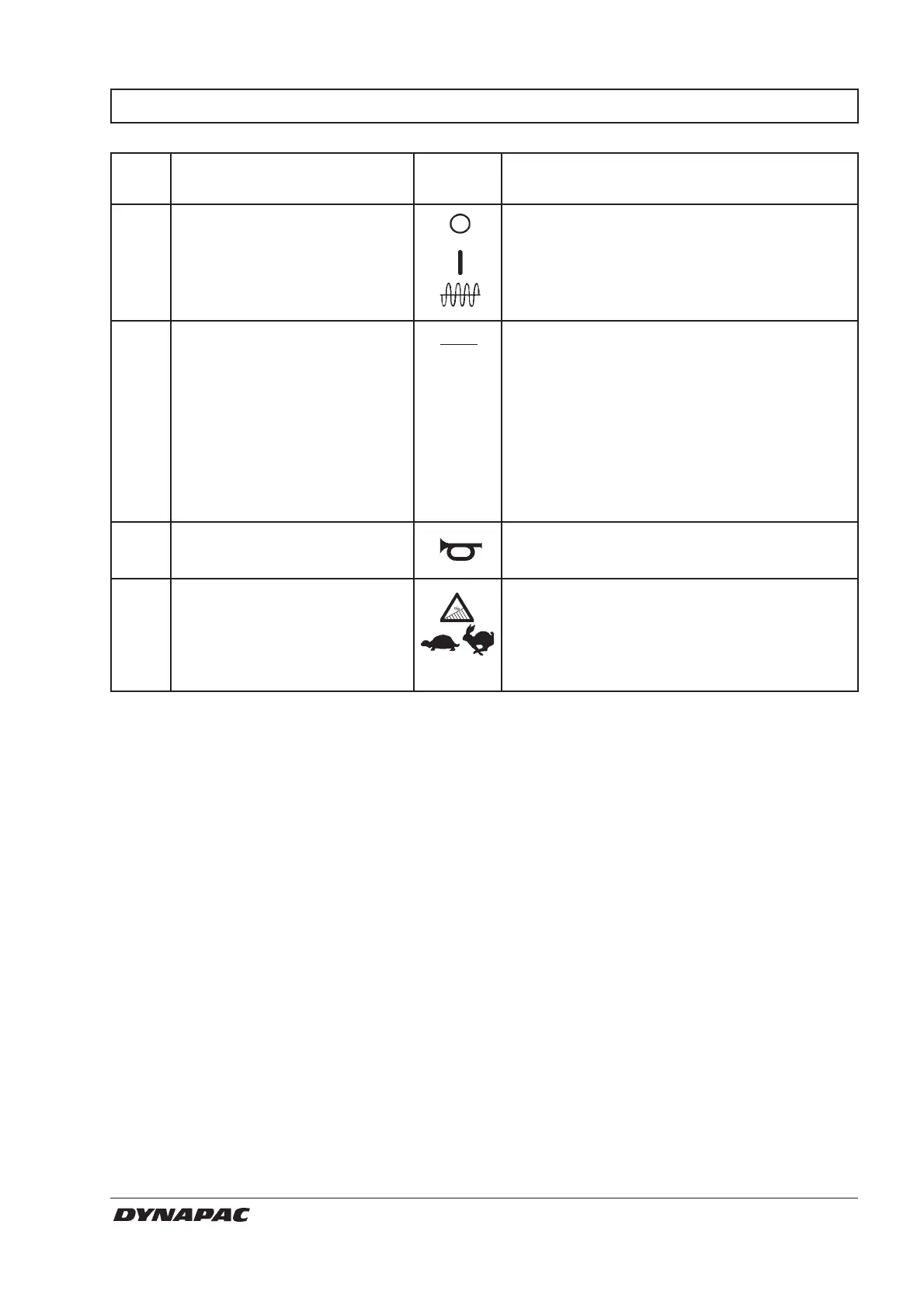

Item in Designation Symbol Function
fig. 7
38 Vibration ON/OFF, switch Push and release the switch to engage vibra
tion, push once more to disengage vibration.
The above applies only when the amplitude
selector (24) is in position High or Low.
39 Forward/Reverse control The lever must be in neutral to start the
engine, it cannot be started with the forward/
reverse lever in any other position.
Direction of travel and speed of the roller is
regulated with the forward/reverse lever. The
roller moves forward when the lever is moved
forward, etc. Speed of the roller is regulated in
proportion to how far the lever is moved from
neutral. The further from neutral, the higher
the speed.
40 Horn, switch Press to sound the horn.
41 Anti-spin function Set the knob to the left for forward anti-spin
function.
Set the knob in the middle for reverse anti-spin
function.
Set the knob to the right for transport driving.
INSTRUMENTS AND CONTROLS, FUNCTIONAL DESCRIPTION
