Dynapac CA300 - Instruments and Controls

9CA300 O300EN1
INSTRUMENTS AND CONTROLS
1. Horn
2. Starter switch
3. Hazard beacon
4. Working lights
5. Reserve/Parking brake knob
6. Instrument protection
7. Warning lamp, charging
8. Brake warning lamp
9. Warning lamp, engine oil pressure/
Warning lamp, engine temperature
10. Warning lamp, hydraulic filter
11. Warning lamp, air filter

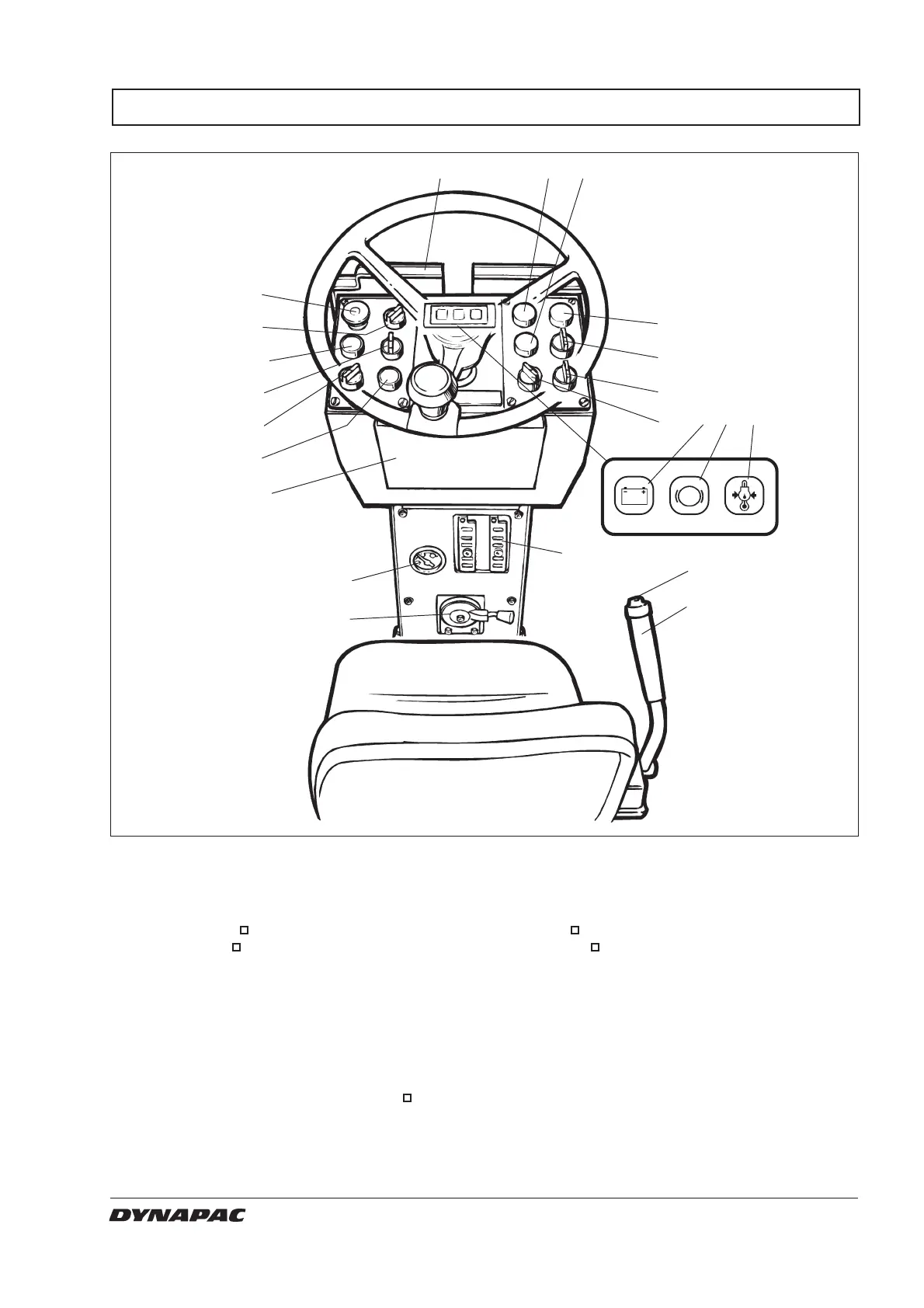

Fig. 6 Instruments and control panel
12. Warning lamp, hydraulic temperature
13. Amplitude selector Low/0/High
14. Speed selector, drum
15. Speed selector, rear axle
16. Engine revs control
17. Fuel gauge
18. Fuse box
19. Vibration ON/OFF
20. Forward/Reverse lever
21. Test button for warning lamps
22. Handbook compartment
= Optional
61011
5
4
21
3
2
1
22
17
16
19
20
18
12
13
14
15
78 9
