INSTRUCTIONS FOR TOWING
Drum axle, brake disengagement
Disengage the drum brake by unscrewing the four
hexagonal socket screws (5) about 5 mm (3/16 in) and
then by pulling out the motor adapter against the screw
heads.
The brakes are now disengaged and the roller can be
towed.
After towing, remember to tighten the towing
valves (1). Screw out the adjusting screws (4)
to their initial position 34 mm (1.34 in) from the
contact surface, and tighten the locknuts (3).
Tighten the four hexagonal socket screws (5).
Normal mode
Brake is active
Towing mode
Brake disengaged

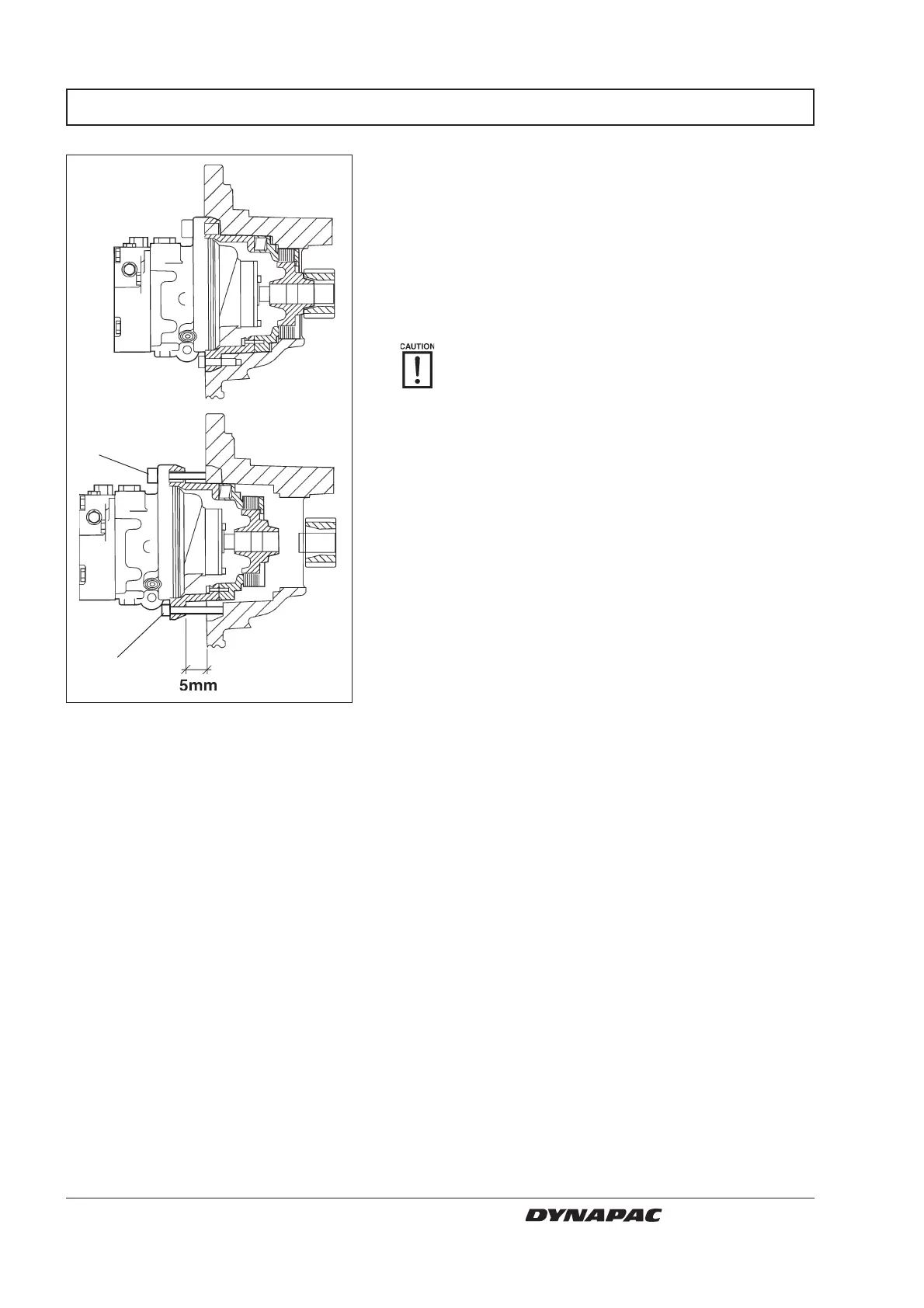

Fig. 28 Drum brake
5. Screw
5
5
