Machine description
ICC1300-1EN3.pdf 2011-10-10

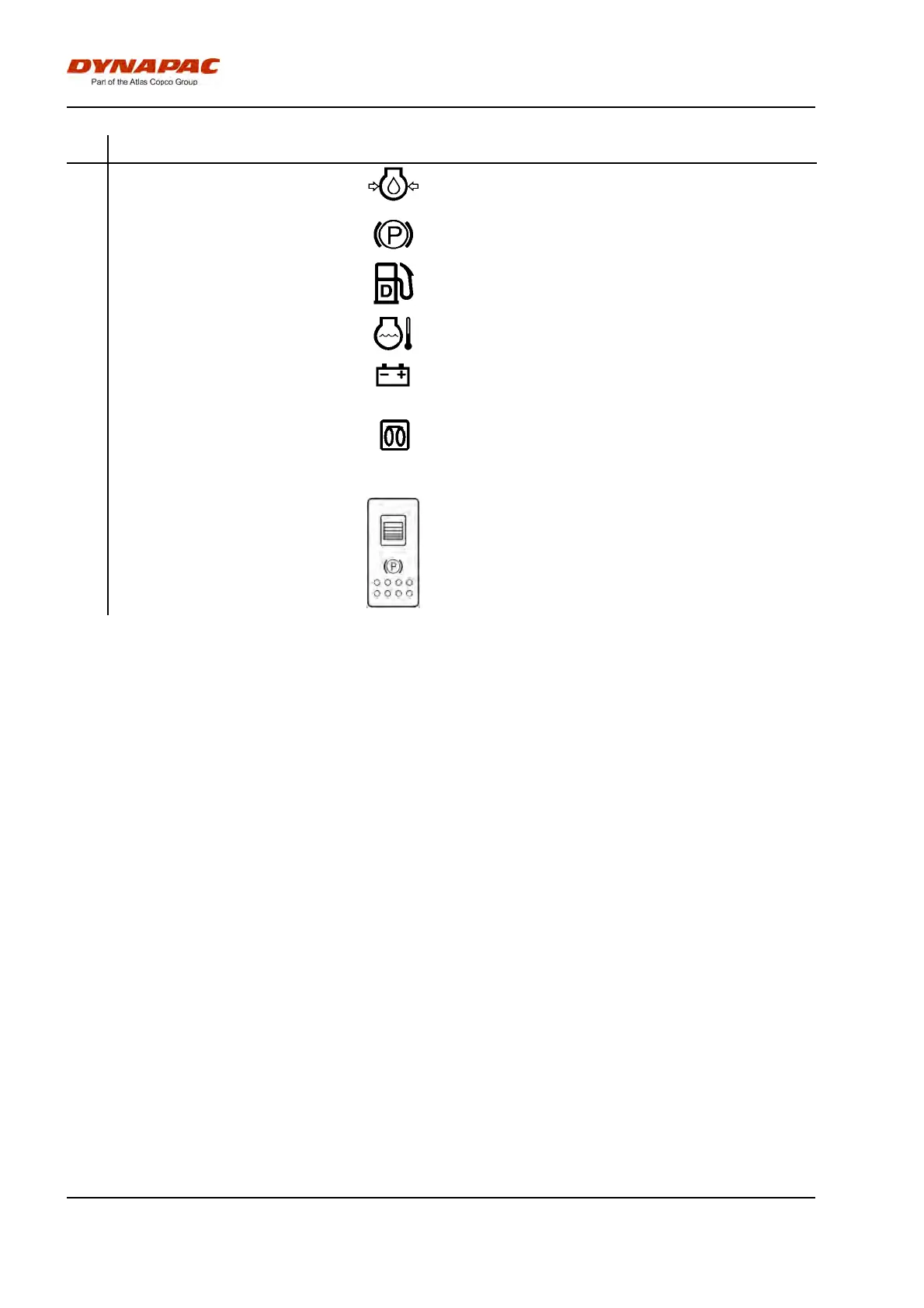

No Designation Symbol FunctionNo Designation Symbol Function
24. Warning lamp, oil pressure This lamp lights if the lubricating pressure in the
engine is too low. Stop the engine immediately and
locate the fault.
24. Warning lamp, oil pressure This lamp lights if the lubricating pressure in the
engine is too low. Stop the engine immediately and
locate the fault.
25. Warning lamp, parking brake The lamp lights when the parking brake is
activated.
25. Warning lamp, parking brake The lamp lights when the parking brake is
activated.
26. Fuel level Shows the fuel level in the diesel tank.26. Fuel level Shows the fuel level in the diesel tank.
27. Warning lamp, water
temperature
The light comes on if the water temperature is too
high.
27. Warning lamp, water
temperature
The light comes on if the water temperature is too
high.
28. Warning lamp, battery
charging
If the lamp lights while the engine is running the
alternator is not charging. Stop the engine and
locate the fault.
28. Warning lamp, battery
charging
If the lamp lights while the engine is running the
alternator is not charging. Stop the engine and
locate the fault.
29. Warning lamp, glow plug The lamp must go out before the starter switch is
moved to position 3c for activation of the starter
motor.
29. Warning lamp, glow plug The lamp must go out before the starter switch is
moved to position 3c for activation of the starter
motor.
30. Hourmeter Shows the number of hours the engine has run.30. Hourmeter Shows the number of hours the engine has run.
31. Parking brake On/Off, switch Push in to activate the parking brake, the machine
stops with the engine running. Always use the
parking brake when the machine is stationary
on a sloping surface.
31. Parking brake On/Off, switch Push in to activate the parking brake, the machine
stops with the engine running. Always use the
parking brake when the machine is stationary
on a sloping surface.
30
