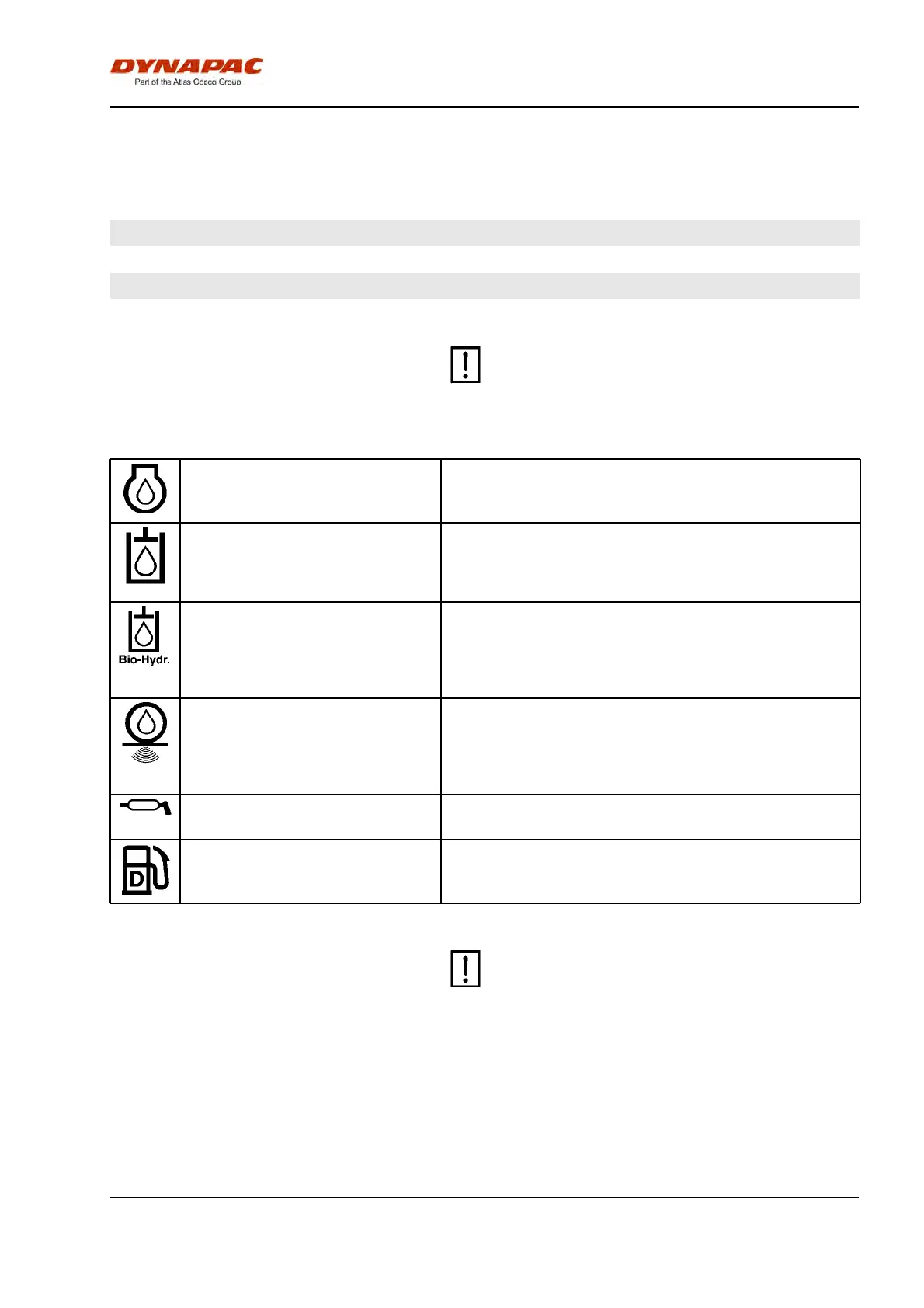

Maintenance - Lubricants and symbols
ICC1300-1EN3.pdf2011-10-10
Maintenance - Lubricants and symbols
Fluid volumesFluid volumes
Hydraulic tank 45 liters 47.5 qtsHydraulic tank 45 liters 47.5 qts
Diesel engine 7 liters 10 qtsDiesel engine 7 liters 10 qts
Drum 5 liters 5.3 qtsDrum 5 liters 5.3 qts
Always use high-quality lubricants and the
amounts recommended. Too much grease or
oil can cause overheating, resulting in rapid
wear.
Always use high-quality lubricants and the
amounts recommended. Too much grease or
oil can cause overheating, resulting in rapid
wear.
ENGINE OIL Air temperature -15°C - +50°C (5°F-122°F)
Shell Rimula R4 L 15W-40, API CH-4 or equivalent.
ENGINE OIL Air temperature -15°C - +50°C (5°F-122°F)
Shell Rimula R4 L 15W-40, API CH-4 or equivalent.
HYDRAULIC FLUID Air temperature -15°C - +40°C (5°F-104°F)
Shell Tellus T68 or equivalent.
Air temperature over +40°C (104°F)
Shell Tellus T100 or equivalent.
HYDRAULIC FLUID Air temperature -15°C - +40°C (5°F-104°F)
Shell Tellus T68 or equivalent.
Air temperature over +40°C (104°F)
Shell Tellus T100 or equivalent.
BIOLOGICAL HYDRAULIC
FLUID, PANOLIN
PANOLIN HLP Synth 46
When it leaves the factory, the machine may be
filled with biologically degradable fluid. The same
type of fluid must be used when changing or topping
up. (www.panolin.com)
BIOLOGICAL HYDRAULIC
FLUID, PANOLIN
PANOLIN HLP Synth 46
When it leaves the factory, the machine may be
filled with biologically degradable fluid. The same
type of fluid must be used when changing or topping
up. (www.panolin.com)
DRUM OIL Air temperature -15°C - +40°C (5°F-104°F)
Shell Spirax AX 80W/90, API GL-5, Dynapac Gear
Oil 300 or equivalent.
Air temperature 0°C (32°F) - over +40°C (104°F)
Shell Spirax AX 85W/140, API GL-5 or equivalent.
DRUM OIL Air temperature -15°C - +40°C (5°F-104°F)
Shell Spirax AX 80W/90, API GL-5, Dynapac Gear
Oil 300 or equivalent.
Air temperature 0°C (32°F) - over +40°C (104°F)
Shell Spirax AX 85W/140, API GL-5 or equivalent.
GREASE Shell Retinax LX2, Dynapac Roller Grease or
equivalent
GREASE Shell Retinax LX2, Dynapac Roller Grease or
equivalent
FUEL See engine manual.FUEL See engine manual.
Other fuel and lubricants are required when
operating in areas with extremely high or
extremely low ambient temperatures. See the
‘Special instructions’ chapter, or consult
Dynapac.
Other fuel and lubricants are required when
operating in areas with extremely high or
extremely low ambient temperatures. See the
‘Special instructions’ chapter, or consult
Dynapac.
