Maintenance - 1000h
ICC1300-1EN3.pdf 2011-10-10

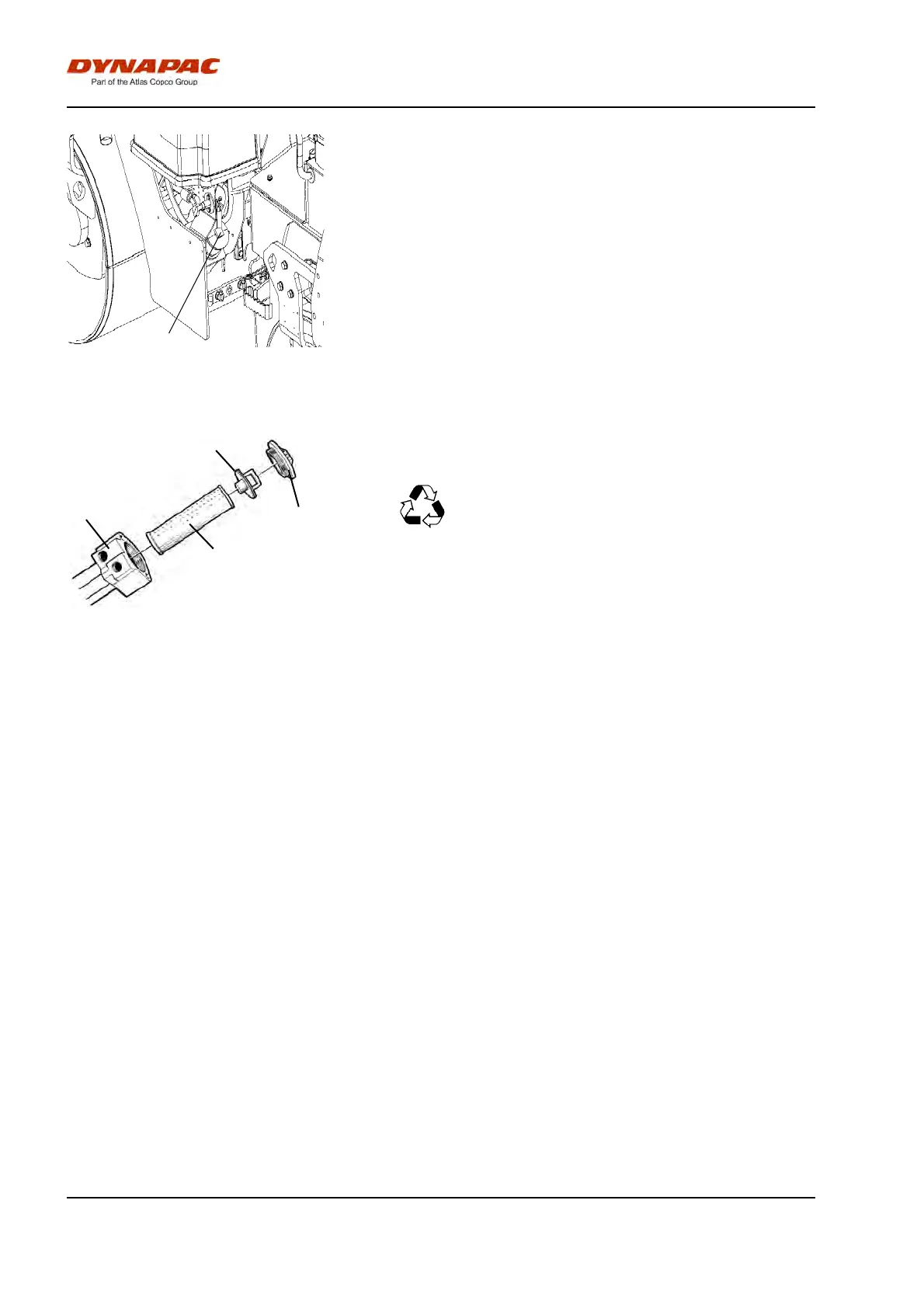

Fig. Hydraulic oil filter
3. Cap
3
Loosen the red cap (3) and pull up the filter insert (4).
Refit the red cap temporarily to prevent dust and dirt
getting into the tank.
6
4
3
5
Fig. Hydraulic oil filter
3. Cap
4. Filter insert
5. Handle
6. Filter holder
Release the filter insert (4) from the handle (5).
Remove the filter (4) and hand in to an
environment-friendly waste disposal station. This
is a disposable filter and cannot be cleaned.
Remove the filter (4) and hand in to an
environment-friendly waste disposal station. This
is a disposable filter and cannot be cleaned.
Mount the new insert on the handle, refit the unit into
the filter holder (6), and refit the red cover.
Start the engine and allow it to run at full revs for 30
seconds. Check that the filter cap (3) is tight.
