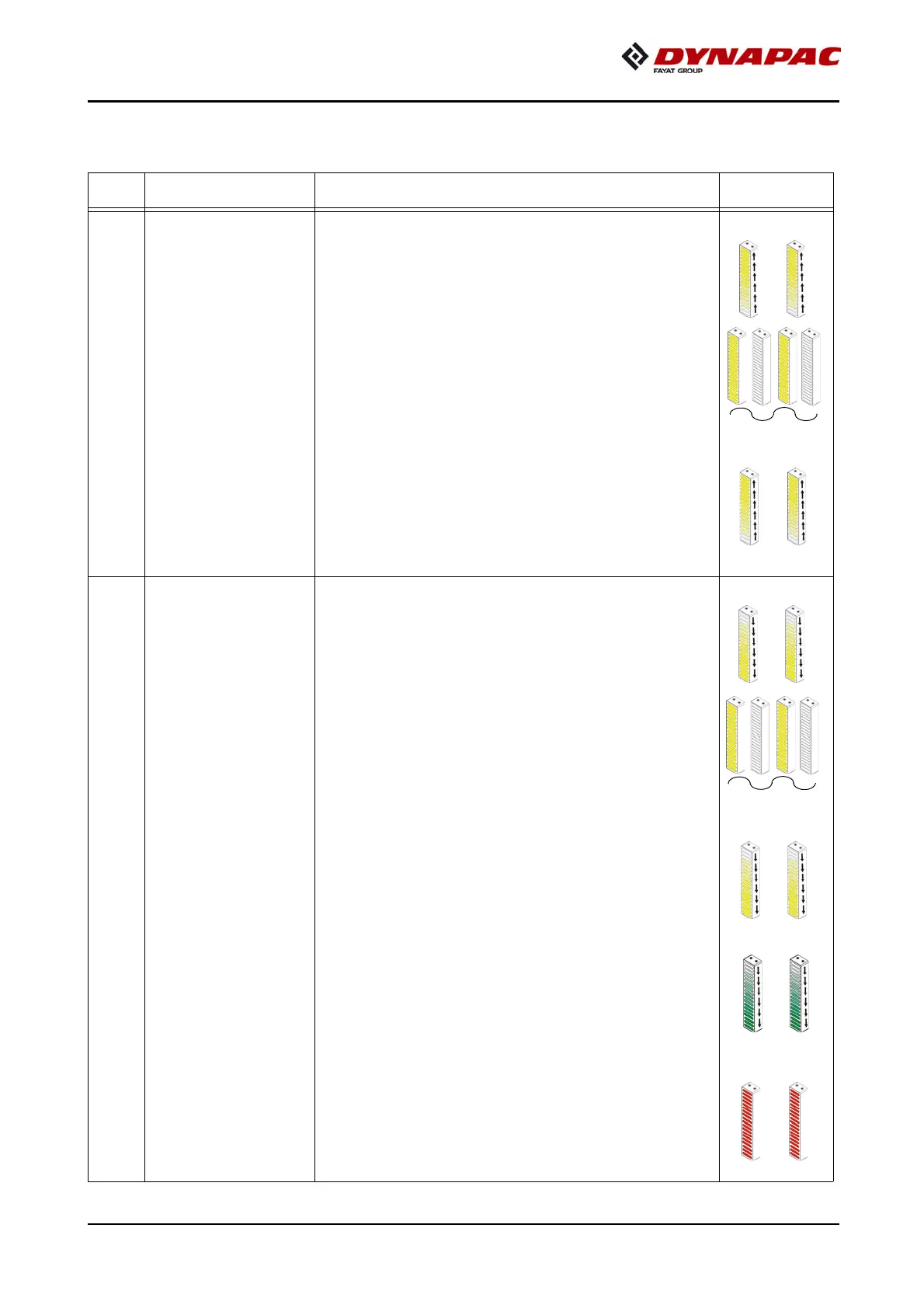

Item Designation Brief description LED display
86
Tell truck
to "Start
Tipping"(raise truck
hopper)
Pushbutton function with LED feedback:
- To change over to the "Start Tipping"
signal.
(YELLOW SIGNAL, running light as-
cending)
- Press button again to change signal
over to "Pause".
(YELLOW SIGNAL, flashing).
A
The button LED + button LED (87) flashes
in the "PAUSE" MODE
-Press button once more to switch
again to "Start Tipping" signal.
(YELLOW SIGNAL, running light as-
cending)
87
Tell truck
to "End Tipping"
(lower truck
hopper)
+
tell truck to "Detach,
Depart"
Pushbutton function with LED feedback:
- To change over to the "End Tipping" sig-
nal.
(YELLOW SIGNAL, running light de-
scending)
- Press button again to change signal
over to "Pause".
(YELLOW SIGNAL, flashing).
A
The button LED + button LED (86) flashes
in the "PAUSE" MODE
-Press button once more to switch
again to "Start Tipping" signal.
(YELLOW SIGNAL, running light de-
scending)
- After material transfer completed:
Press button >3 seconds to change
signal to "Detach, Depart".
(GREEN SIGNAL, running light de-
scending) + button LED (84), flashing.
- After 10 seconds the system automati-
cally changes over to the "STOP" sig-
nal.
(RED SIGNAL)
