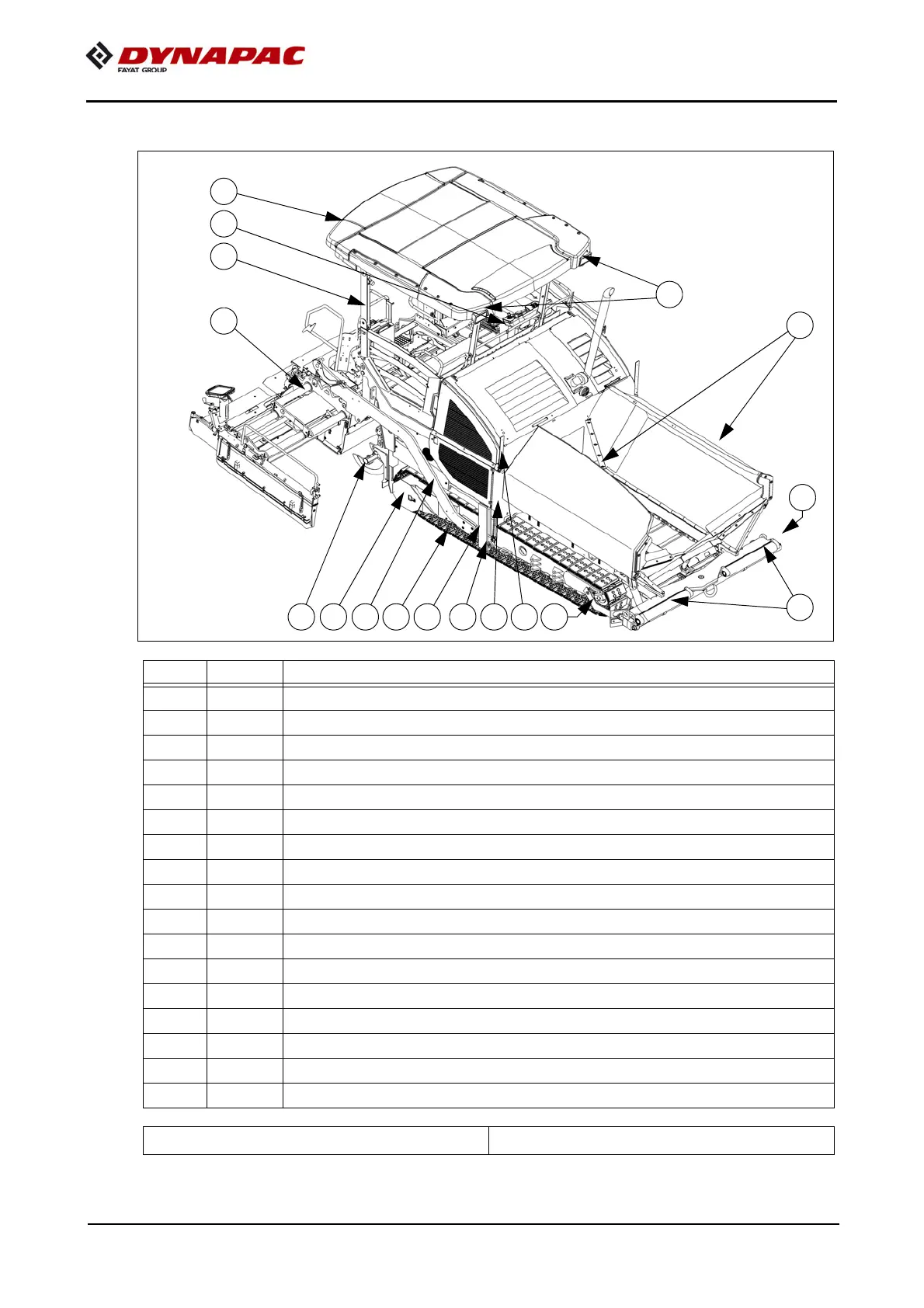

2 Description of assemblies and functions
Item Designation
1
t
Material compartment (hopper)
2
t
Truck push rollers
3
t
Tube for sensor rod (direction indicator) and holder for levelling shoe
4
t
Caterpillar drive
5
t
Levelling cylinder for paving thickness
6
t
Traction roller
7
t
Crossbeam pull bar
8
t
Paving thickness indicator
9
t
Crossbeam
10
t
Travel drive of the caterpillar drive
11
t
Auger
12
t
Screed
13
t
Operator’s platform
14
t
Operating panel (can be moved to either side)
15
t
Protective roof
16
o
Working lights
17
t
Lane cleaner
t
= Standard equipment
o = Optional equipment
