Dynapac LP 650 - MAINTENANCE - SERVICE POINTS; Maintenance Service Points Overview; Daily Maintenance Checks (10 Hours)

19
LP 650/750 — ILP650EN1
Item in fig. Maintenance see page Comments
1 Check engine oil level 21
6 Refuel 21
4 Check the engine air filter 21
7 Check hydraulic fluid level 21
11 Check setting of the scrapers 22
14 Check level of battery fluid and top up as
required (optional) 24
10 Fill the sprinkler system with water 22
Check for leakage of oil
Check that all bolted joints are tight
Keep the machine clean
Every 10 hours of operation (Daily)
1. Engine oil
2. Engine oil filter
3. Fuel filter
4. Engine air filter
5. Engine cooling system

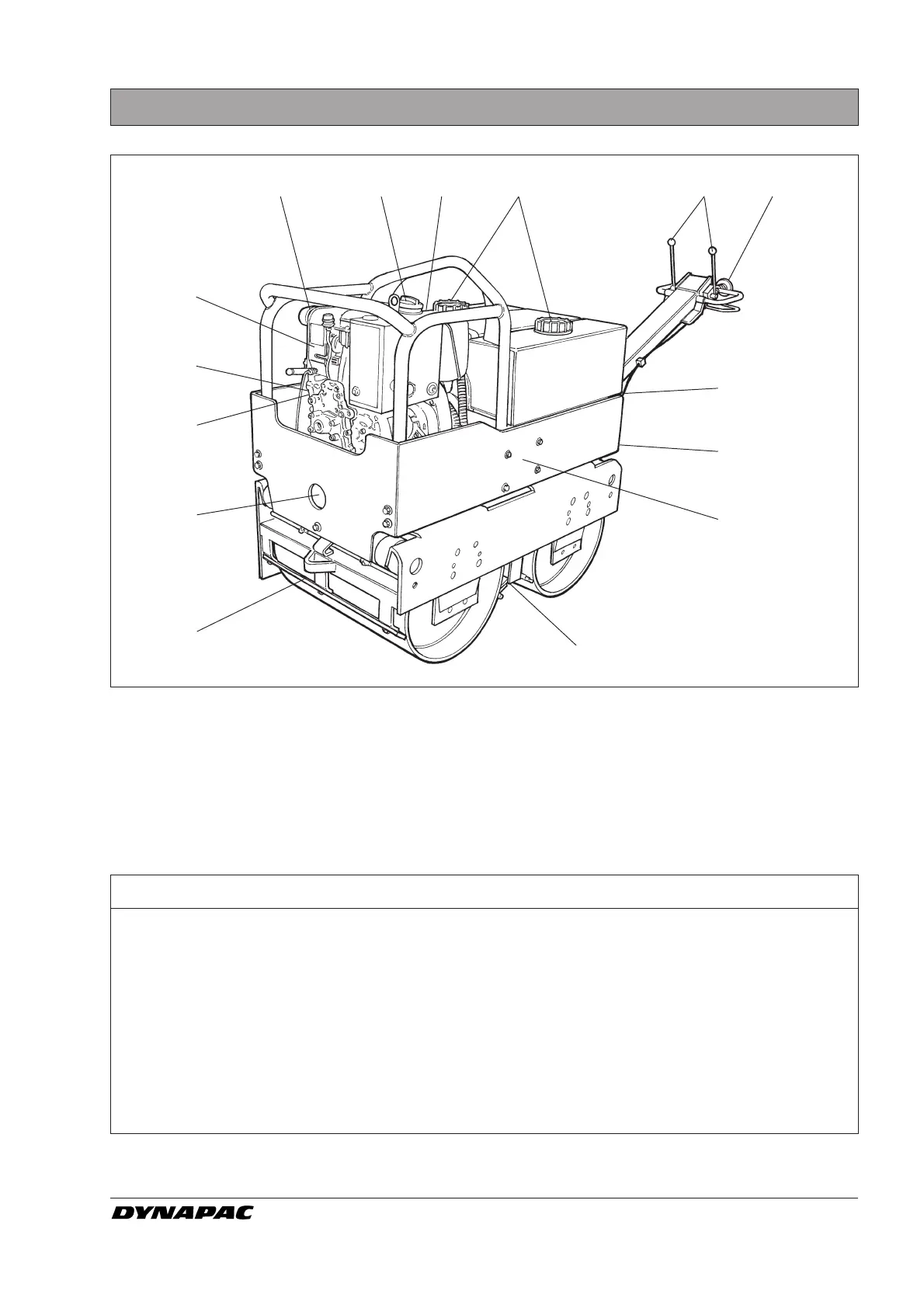

L000004A
1
2
12 1513 10
14
6
6. Fuel tank
7. Hydraulic fluid
8. Hydraulic filter
9. Eccentric element
10. Water tank
11. Scrapers
12. Controls
13. Handbrake
14. Battery (optional)
15. Push-stop (optional)
11
7
8
9
4
5
3
MAINTENANCE – SERVICE POINTS
