25
LP 650/750 — ILP650EN1

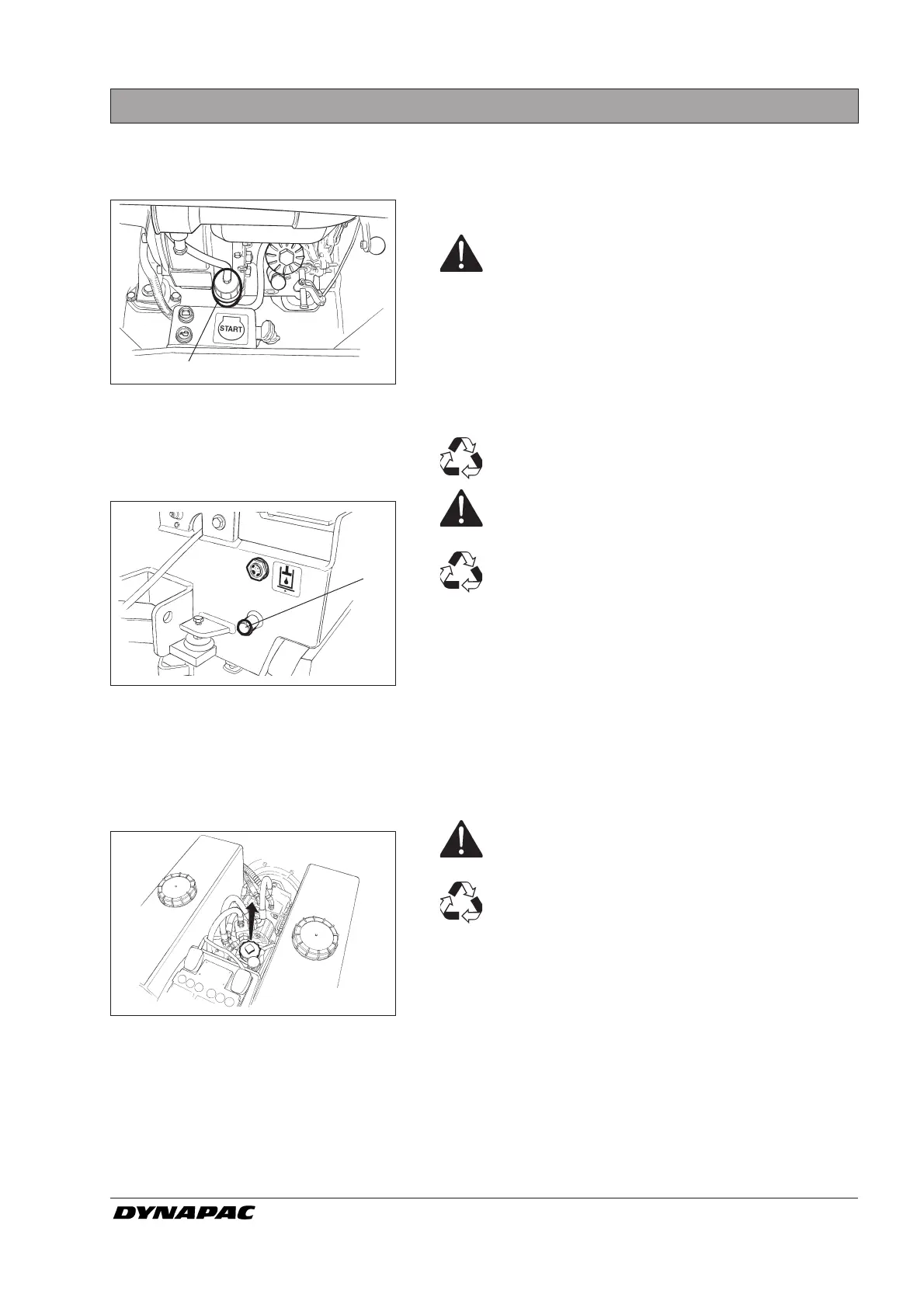

MAINTENANCE – EVERY 500 HOURS OF OPERATION
Engine
1. Fuel filter
Diesel engine
– Fuel filter change
See engine manual.
Do not smoke or use an open flame when
working on the fuel system.
Contamination and the interval for changing the filter
depends on purity of the fuel.
Disconnect the hoses on both sides of the fuel filter
and replace the filter. When fitting the new filter ensure
that the arrow on the filter coincides with the direction
of flow of the fuel.
Dispose of fuel spillage properly to minimize
environmental impact.
Hydraulic fluid drain
1. Drain plug
Hydraulic reservoir
– Changing the fluid
Danger - hot oil!
Dispose of waste fluid in an environment
friendly manner.
1. Place a receptacle for at least 40 litres (10.6 gal)
underneath the hydraulic reservoir. Clean the area
around the drain plug and then unscrew the plug.
2. Drain off all the fluid and refit the drain plug.
3 Fill with 40 litres (10.6 gal) fresh hydraulic fluid.
4. Check that the right level of fluid is indicated in the
sight glass.
L000024A
Hydraulic filter
Hydraulic filter
– Replacement
Danger - hot oil!
Dispose of the hydraulic filter in an
environment friendly manner.
1. Unscrew the cover plate between the two water
tanks to gain access to the hydraulic filter.
2. Clean the area around the filter cover and then
unscrew the cover. Replace filter element. The
element is a once-only type and should be
disposed of in an environment friendly manner.
3. Insert the new filter in the housing and inspect the
O-ring in the cover.
4. Screw the cover back on and ensure that there is
no leakage.
L000030A
1
L000025A
1
