Dynapac LT6000 User Manual

8
WLT6000-1EN1

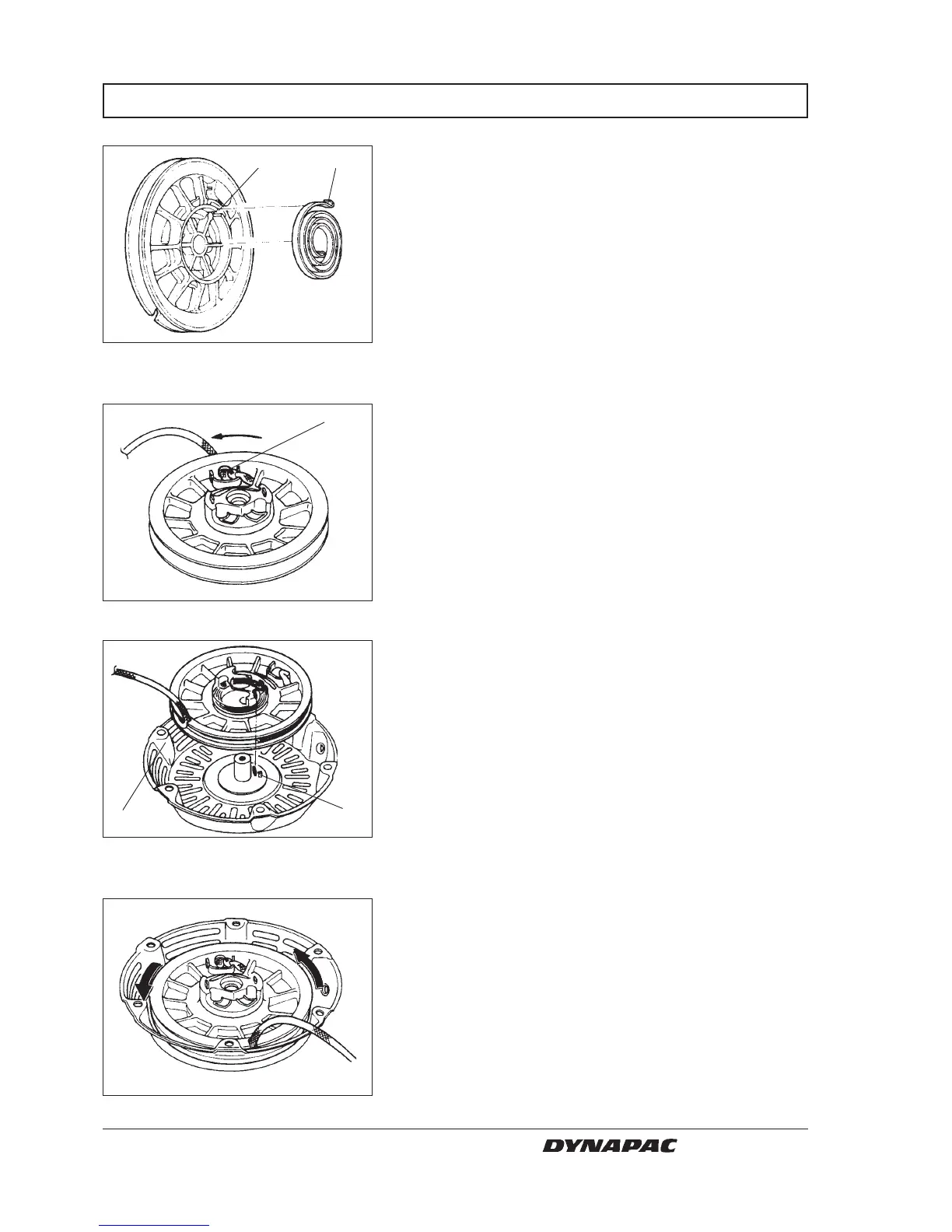

RECOIL STARTER, HONDA
1. Insert the hook (1) on the outer side of the spring
into the groove (2) inside the reel.
2
1
1
2
1
Fig. 7 Recoil starter
1. Hook
2. Groove
Fig. 8 Recoil starter
1. Tie
Fig. 9 Recoil starter
1. Starter case
2. Case tab
Fig. 10 Recoil starter
2. Pass the starter rope through the starter reel and tie
(1) it as shown. Wind the starter rope around the
starter reel in direction of arrow. Leave
approximately 30 cm of the starter rope outside of
the starter reel.
3. Install the starter reel on the starter case (1) so that
the spring inner hook is hooked to the case tab (2).
4. Hold the starter case and rotate the starter reel two
revolutions in the direction of the arrow for
preliminary winding.
W000009A
W000010A
W000011A
W000012A
