5
WLT6000-1EN1
DISASSEMBLY THE ENGINE (LT6000/7000)
1. Close the fuel valve on the tank.
2. Remove the throttle lever from the handle.
3. Remove the fuel hose from the tank.
4. Remove engine support (4) (only on LT 7000).
5. Remove the nuts (3) attaches engine to the gear
housing.
Separating the engine from the
gear housing
2
1
4
3

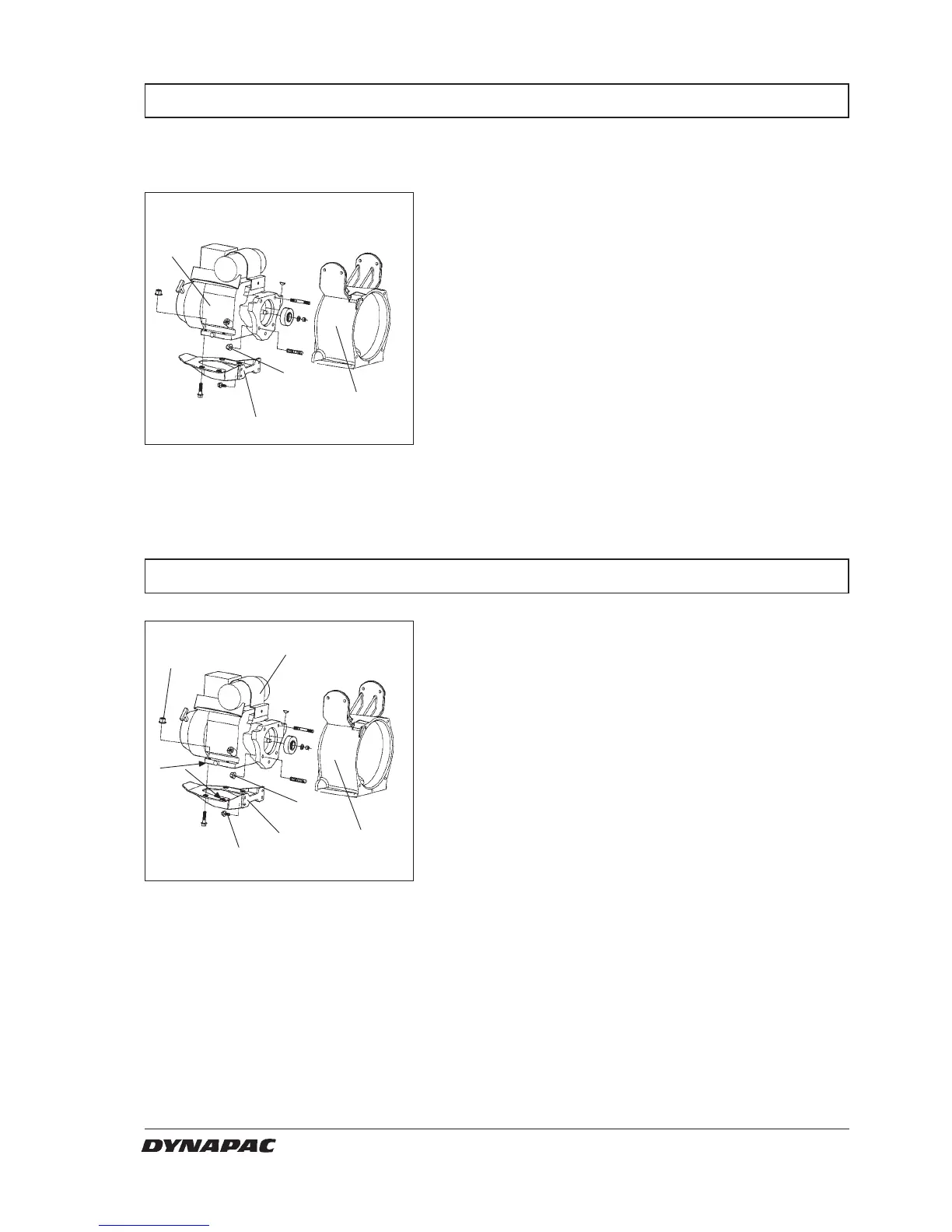

Fig. 1 Engine with gear housing.
1. Gear housing
2. Engine
3. Nut x4
4. Engine support (LT700)
REASSEMBLY THE ENGINE (LT6000/7000)
Fig. 2 Engine with gear housing.
1. Gear housing
2. Engine
3. Nut x4
4. Engine support (LT700)
5. Nut x4
6. Screw x4
1. Clean surfaces between engine, engine support and
gear housing.
2. Mount engine and torgue nuts (3) crosswise to 45 Nm.
3. Only for LT7000:
Mount engine support first by hand. When mounting
the engine support, it is important to check
parallelism between engine, gear housing and
support before the final torque. (see arrows)
4. Torque nuts (5) and screws (6) crosswise
dry to 23 Nm
1
2
3
5
6
4
W000037A
W000037A
