9
WLT6000-1EN1
5. Pass the starter rope end through the starter case
rope guide and pull it outwards. Pass the starter
rope though the starter grip and tie the rope as
shown.
Do not separate the starter reel from the
starter case. Otherwise the return spring
inside the case will come off, which could
cause injuries.
3
2
1
4

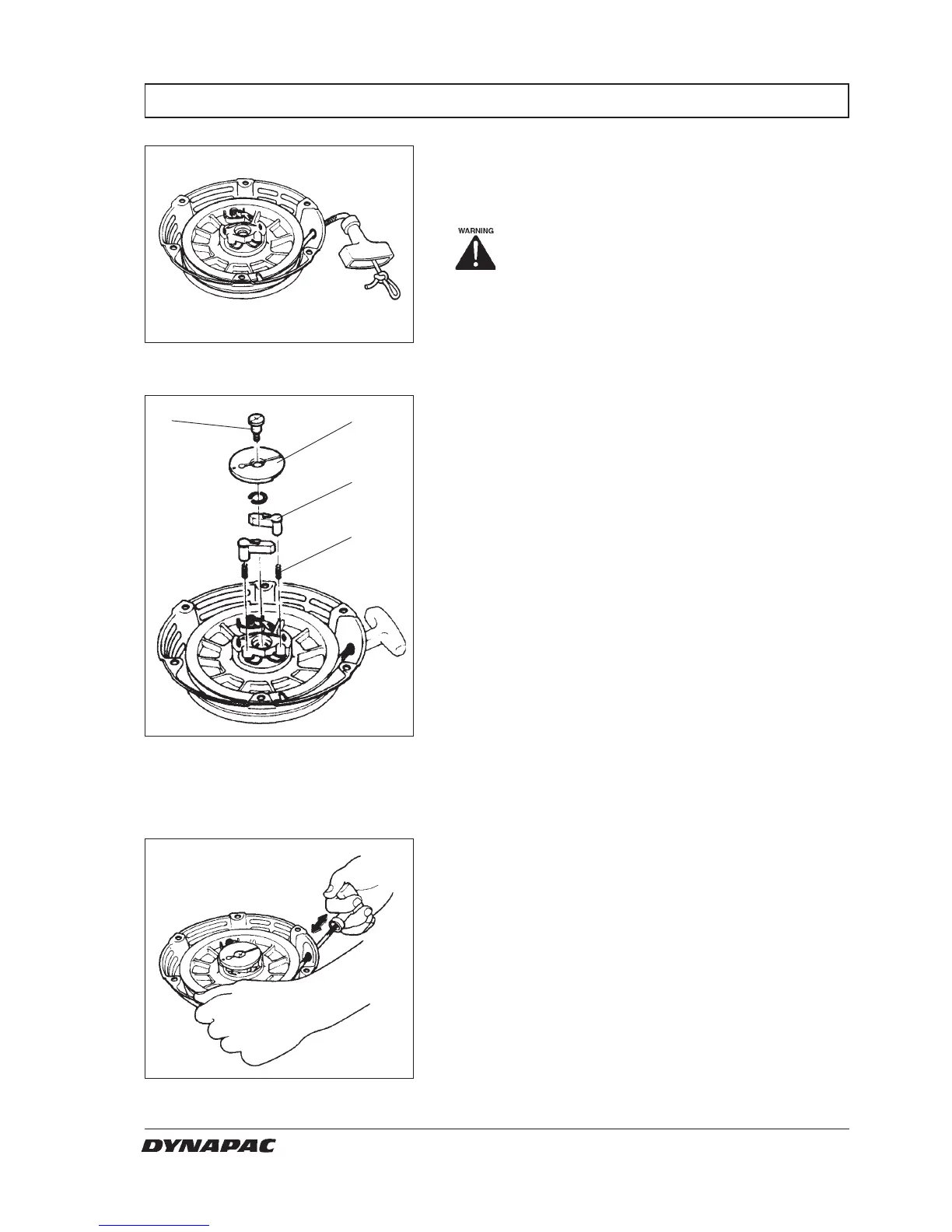

Fig. 12 Recoil starter
1. Ratchet x2
2. Friction spring x2
3. Reel cover
4. Reel cover bolt
RECOIL STARTER, HONDA
Fig. 11 Recoil starter
Fig. 13 Recoil starter
6. Install the ratchet (1) with the spring (2) and reel
cover (3). Tighten the reel cover bolt (4).
7. Check the operation of the ratchet by pulling the
starter rope several times.
8. Hold the starter case and rotate the starter reel two
revolutions in the direction of the arrow for
preliminary winding.
W000013A
W000014A
W000015A
