13
WLT6000-1EN1
DISASSEMBLY THE BELLOW

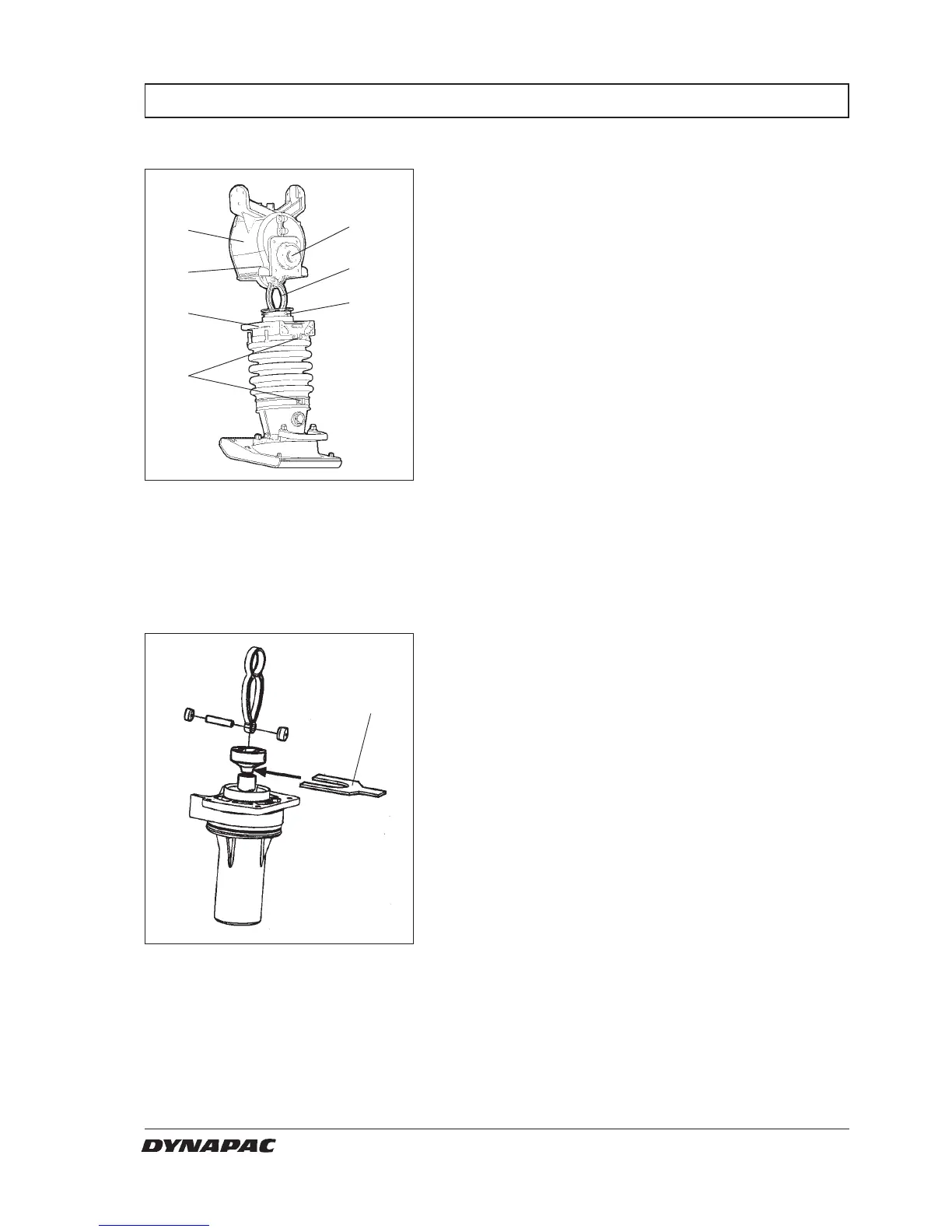

Fig. 23 Rammer leg
1. Crankcase
2. Clutch
3. Crankshaft
4. Outer tube
5. Pistonbolt
6. Hose clamps
7. Screw
Changing the bellows
1. Remove the engine from gear house (see page 4).
2. Loosen the four screws crosswise (7).
3. Turn the clutch (2) so the crankshaft (3) comes in
it`s outermost position. Lift up crankcase and press
down outer tube (4). Dismantle pistonbolt (5) thats
hold crankshaft. Lift away crankcase from the leg.
Tip!
Create an U-shaped tool made of 10-12 mm
plywood, it makes it easier to hold down the outer
tube (4). See fig.
4. Remove upper hose clamp (6). Tap the bellow loose
from outer tube. Lift away the outer tube.
5. Remove lower hose clamp.
6
3
5
4
2
1
Fig. 24 U-tool
1. U-tool
7
1
W000029A
W000040A
