Installation & Start Up
SECTION 5: INSTALLATION AND START UP
WHO SHOULD INSTALL THE PAU
The DS820F PAU operates as part of a system. If the system is not properly wired,
equipment may be damaged.
Only a qualied licensed electrician should install the DS820F PAU. All
installations should comply with the most current version of the National Electric
Code (NEC) as well as all local codes.
WALL MOUNT INSTALLATION
Enclosure Specifications
The Enclosure for the wall mount PAU meets the following industry standards: UL 50, File
No.E27567 Type I; NEMA/EEMAC Type I; CSA, File No.42184 Type I; IEC 60529, IP30. The
PAU enclosure does not meet oil-tight or dust tight specications.
Dimensions
17.8
(454)
1.06(27)
2.5 (64)
11.0 (279)
1.5 (38)
0.31 (8)
17.0
(432)
14.5 (368)
20.0 (508)
16.0 (406)
8.62 (219)
8.0
(203)
inches (mm)
Recommended
12” Mounting
Clearance

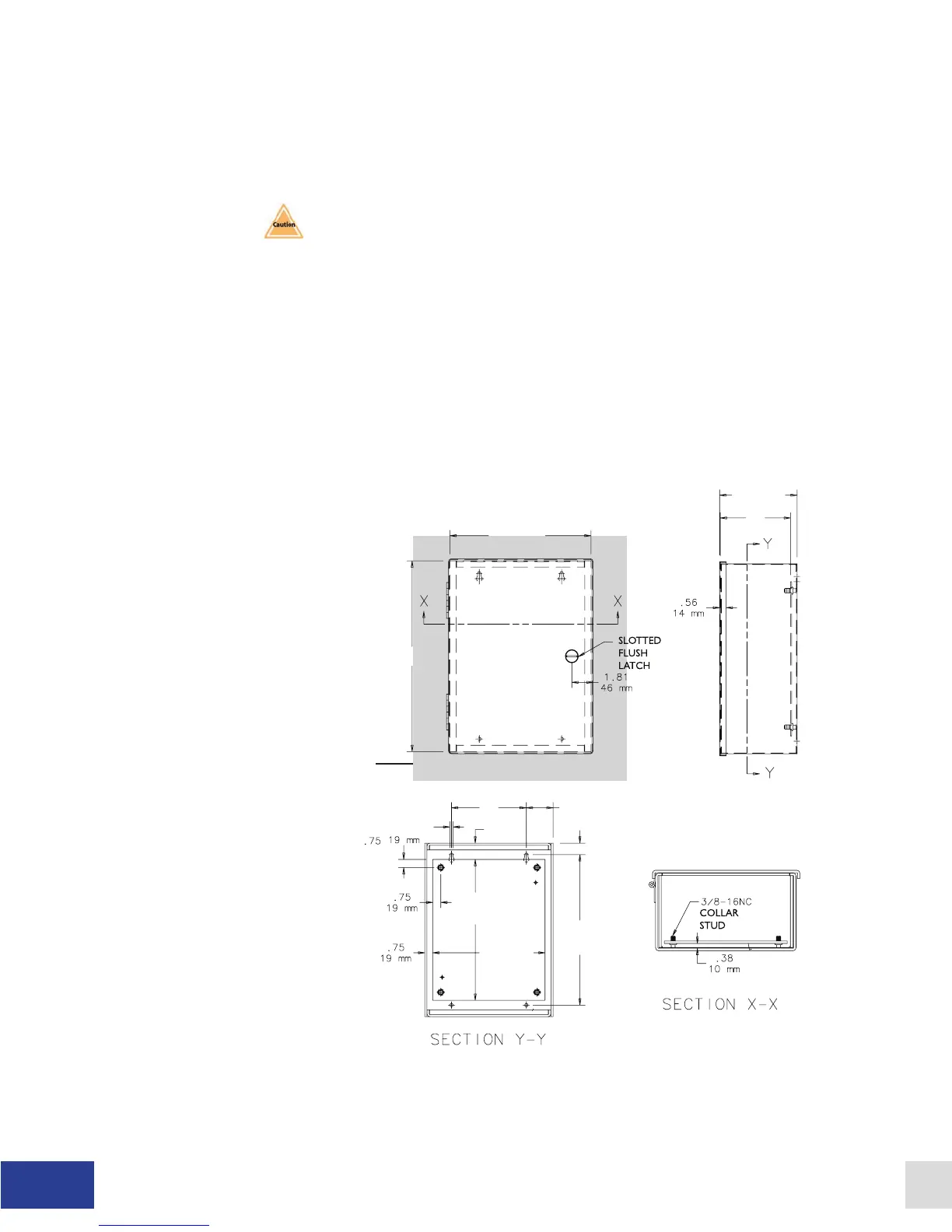

Figure 5.1 - Dimensions
