DyneSystems DS820F - Wall Mount Terminal Block Connections

Installation & Start Up
Wall Mount Terminal Block Connections

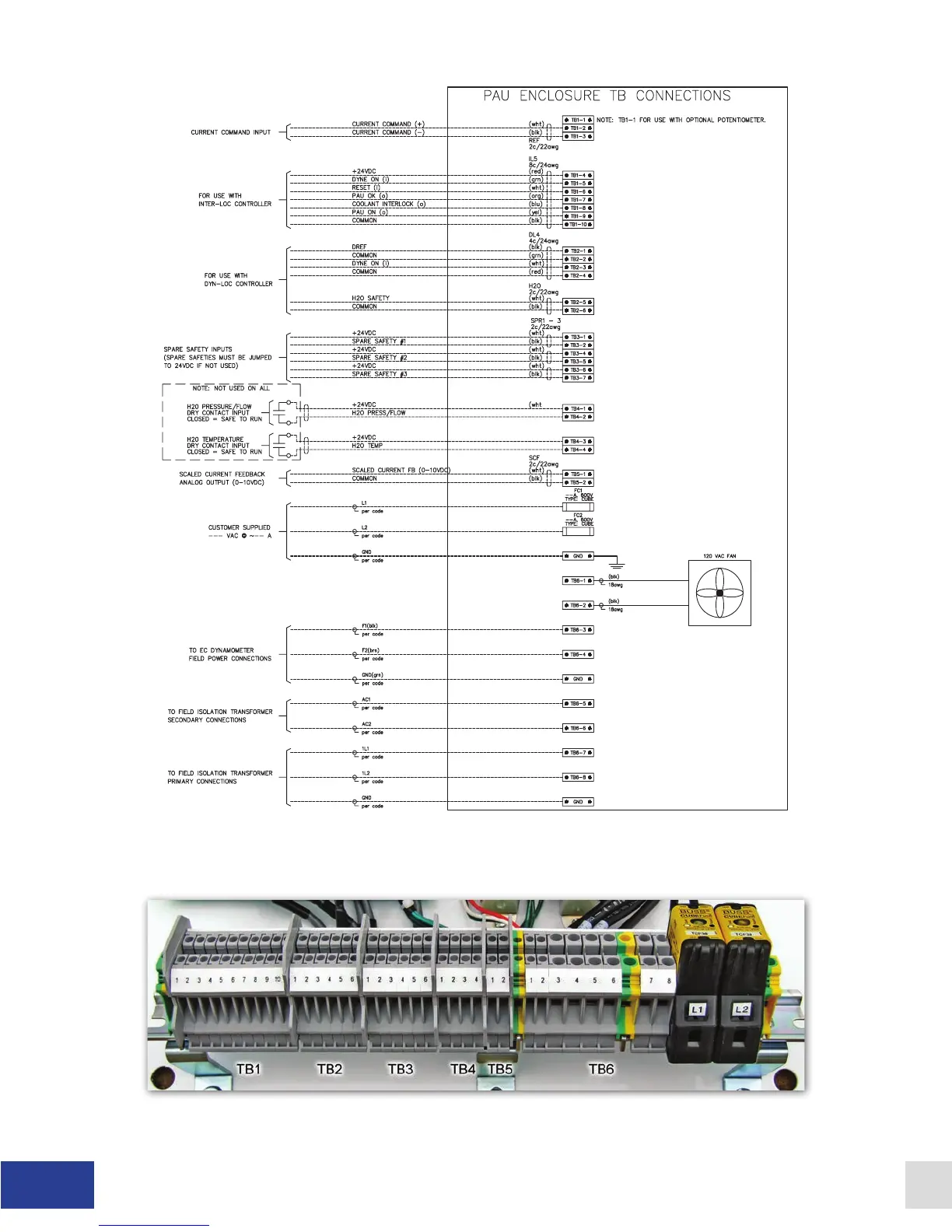

Figure 5.2 - Wall-Mount Terminal Block Connection
s
Figure 5.3 - Enlarged view of terminal block
