Installation & Start Up
RACK MOUNT INSTALLATION
Enclosure Specification
The DS820F PAU enclosure for the rack style PAU is designed for use in areas which do not
require oil-tight and dust-tight applications. Fans are used to cool the interior. The intake is
at the front of the unit.
Dimensions

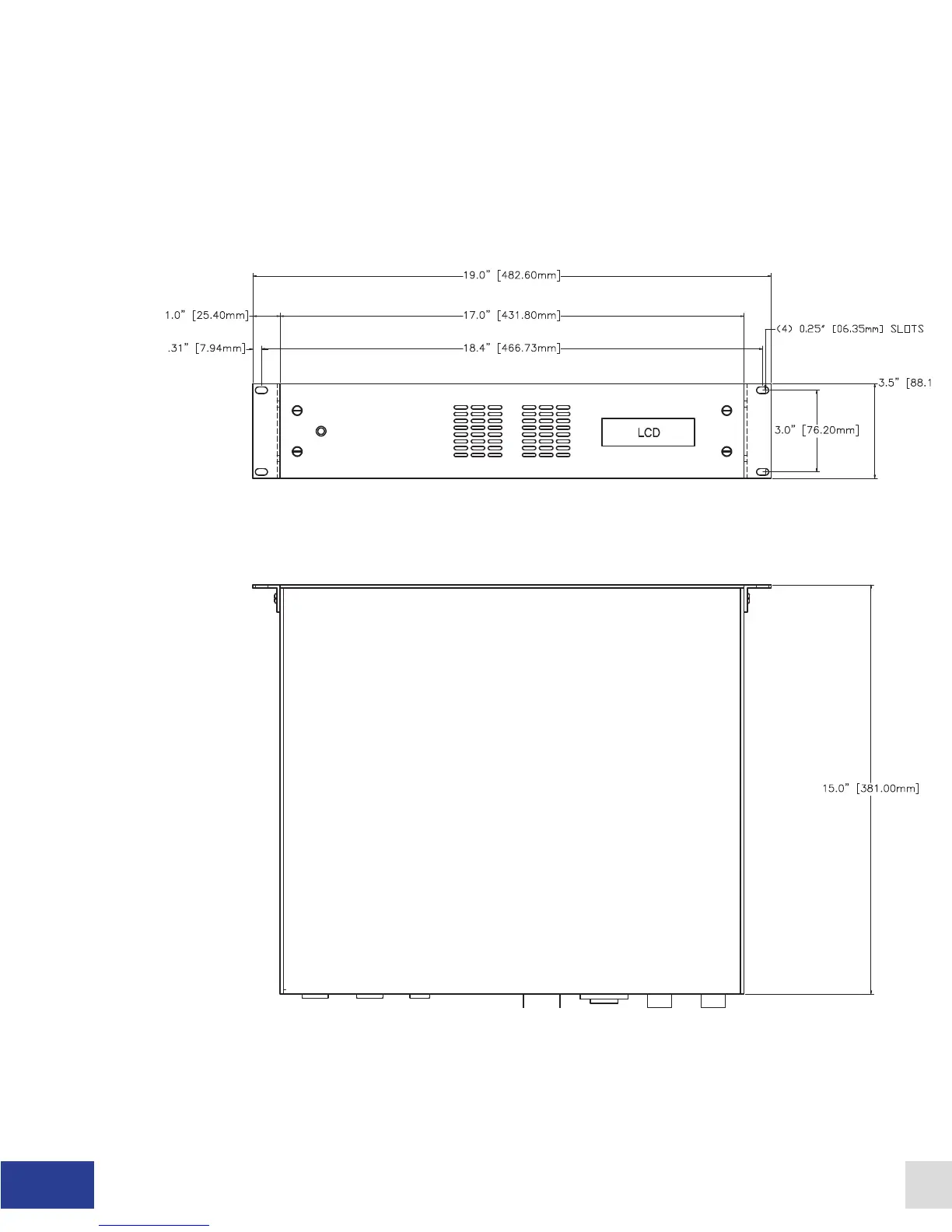

Figure 5.5 - Rack Mount Dimensions
18 Dyne Systems • DS820F PAU
DPD-001-04B • © Copyright Dyne Systems, Inc.
