Installation & Start Up
Rack Mount Mechanical Installation
The PAU enclosure is designed to install in a standard 19 inch server rack using
supplied rack mount brackets.
The method of securing the rack frame and mounting the PAU in the rack is the
responsibility of the end user.
If access to the back of the unit is available the PAU shall be securely mounted before
any connections are made.
1. Connect wires according to the 15 Amp wiring diagram (Figure 5.6) or 30 Amp
wiring diagram (Figure 5.7).
2. When connections are secure, the PAU should be in position and mounted to
the rack.
Rack Mount Wiring

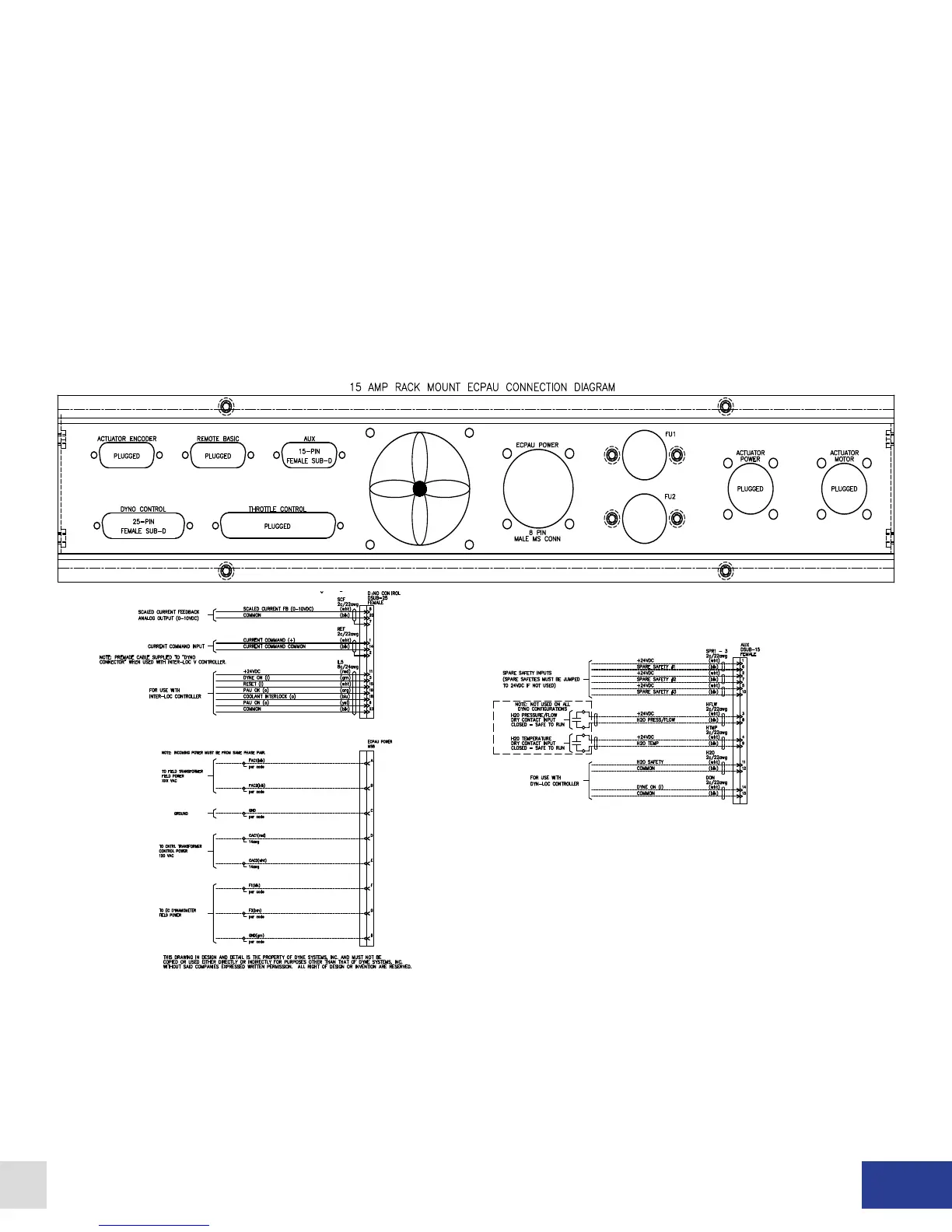

Figure 5.6 - 15 Amp Rack Mount PAU Back Panel Connections
