DYNO INSTALLATION
Cable Routing
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
4 Place a split snap bushing around the wheel clamp cable and secure into place in
one hole on the cable pass through cover.
5 Place a split snap bushing around the power carriage cable and secure into place
in the other hole on the cable pass through cover.
6 Secure the cable pass through cover to the dyno with the two screws removed
earlier.

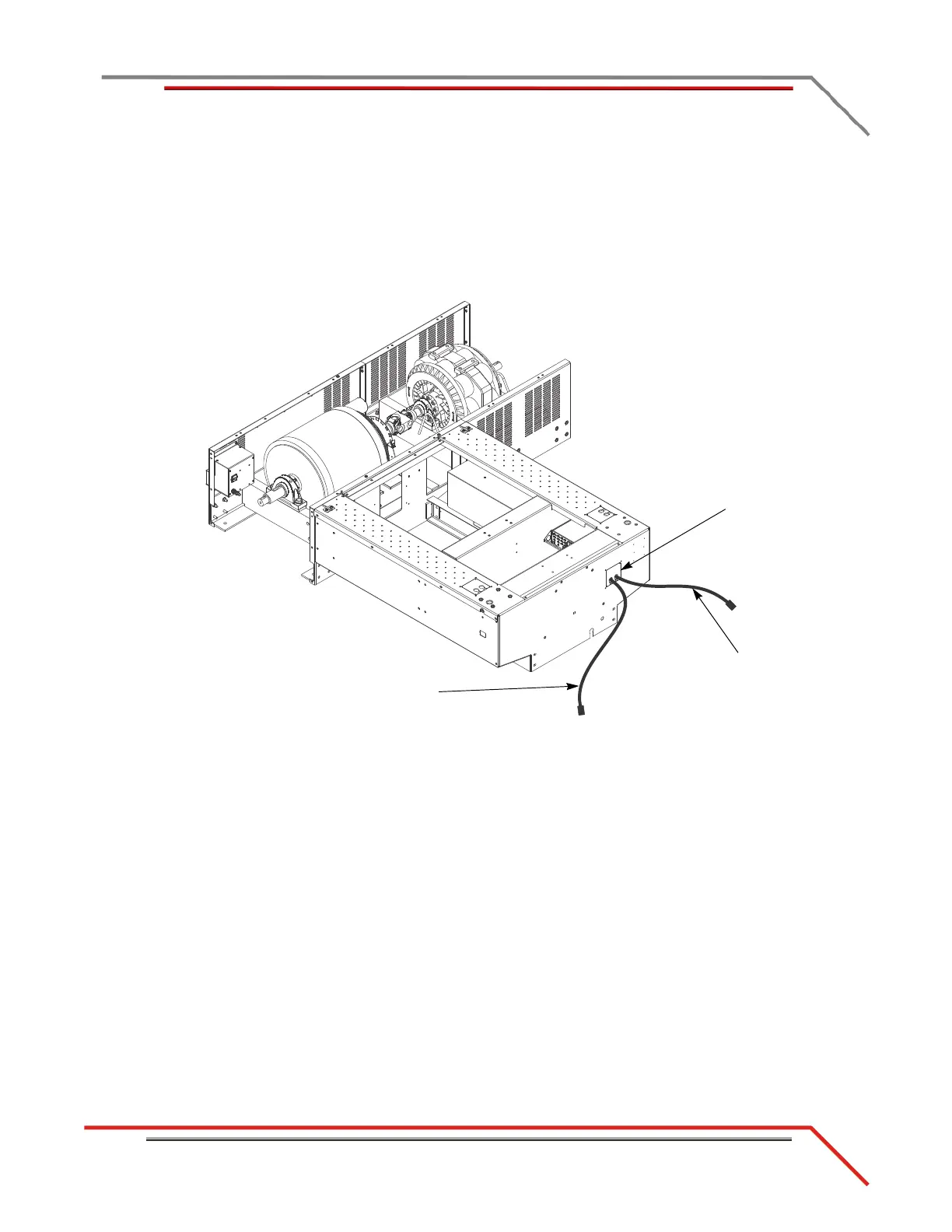

Figure 2-33: Routing Wheel Clamp and Power Carriage Cables
W016C
cable pass through
cover
2-pin power carriage cable
3-pin wheel clamp cable
