HIGH PRESSURE BLOWER INSTALLATION
Model 200i/250i In Ground Blower Installation
Version 4 High Pressure Blower Installation Guide
MARK AND DRILL BLOWER MOUNT HOLES
1 Using the carriage mounting plate and the dyno frame as reference, position the
blower mounts as shown.
2 Using the mounting plates as a template, mark and drill the four 1/2-inch holes
needed to secure the blower mounts to the floor.
3 Install the Red Head anchors. Refer to Appendix A for installation instructions.

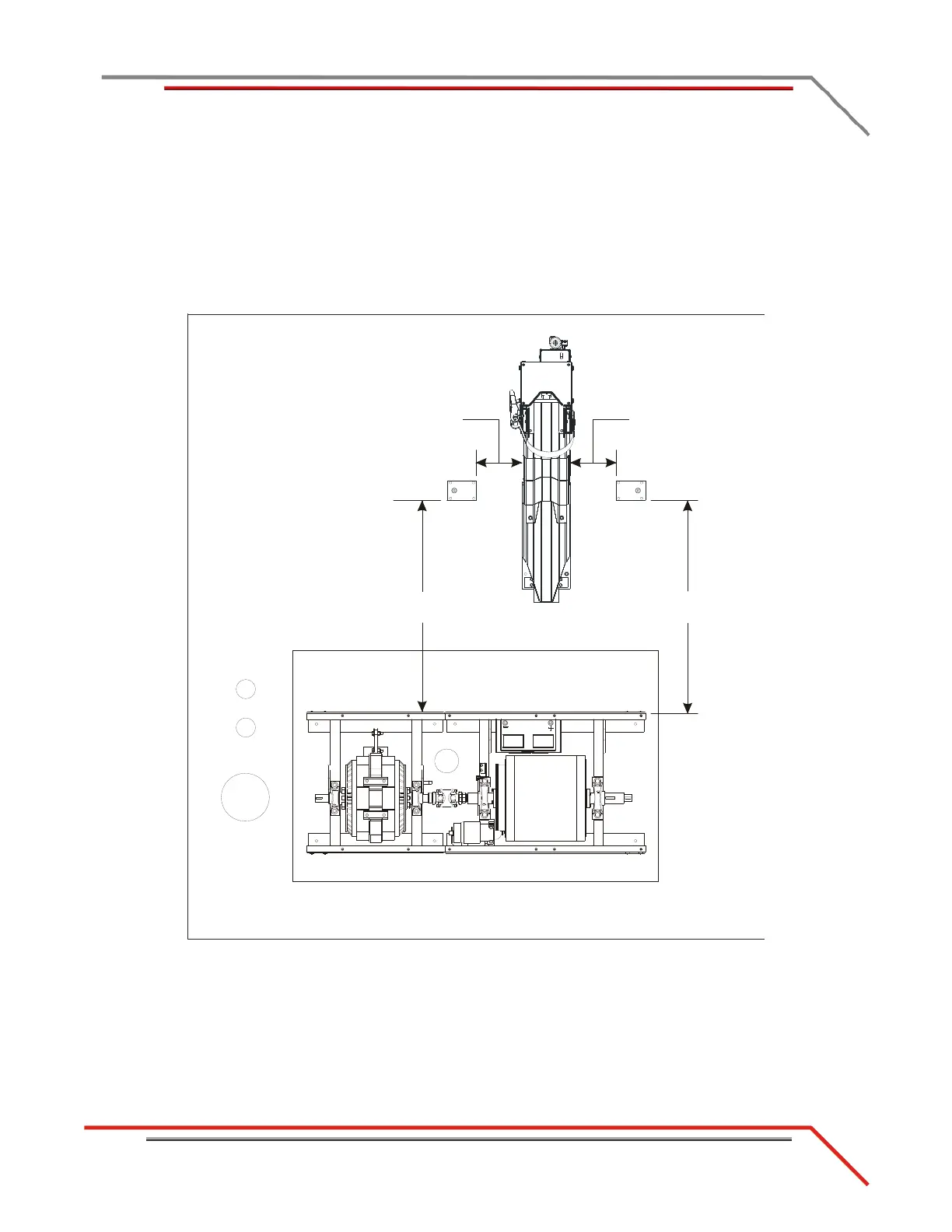

Figure 4: Blower Mounts Placement
PD158
111.76 cm
(44.00 in.)
111.76 cm
24.13 cm
(9.50 in.)
24.13 cm
(9.50 in.)
