C-5
MODEL 200/250 BLOWER INSTALLATION
Installation
Version 4 High Pressure Blower Installation Guide
INSTALLING THE BLOWER ASSEMBLIES
Repeat the following steps for each blower assembly.
Note: Your blowers may be different than the blowers shown in the following
figures. Installation procedures are the same.
1 Place a poly washer between the pin and the pivot arm.
Note: The poly washer is secured to the extension arm with a zip tie. Clip the zip
tie before installing the blower assembly.
2 Insert the pin on the blower assembly into the pivot arm.
3 If not already installed, secure the clamp lever to the pivot arm and to the blower
base.
Note: Your clamp levers may be different than the clamp levers shown in the
following figures.

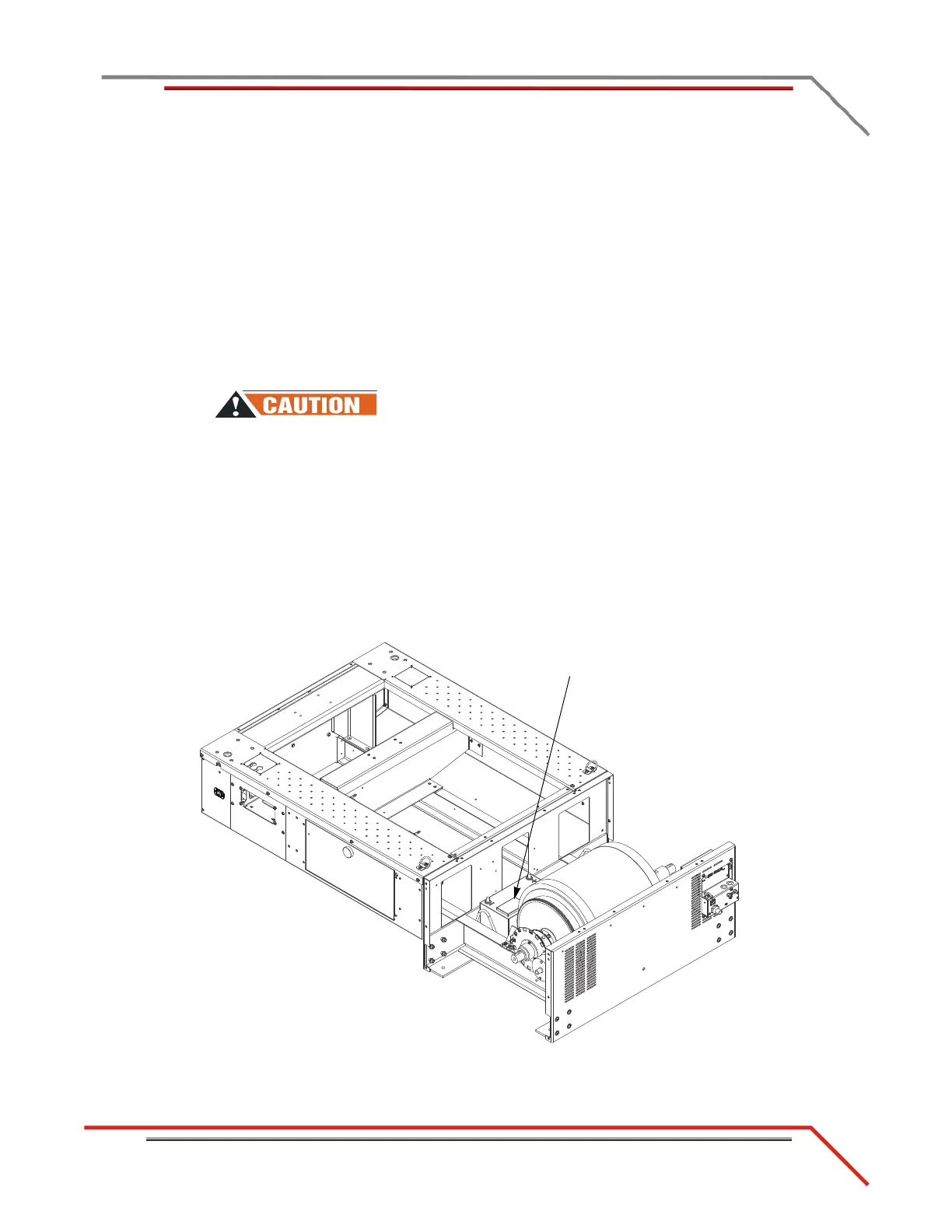

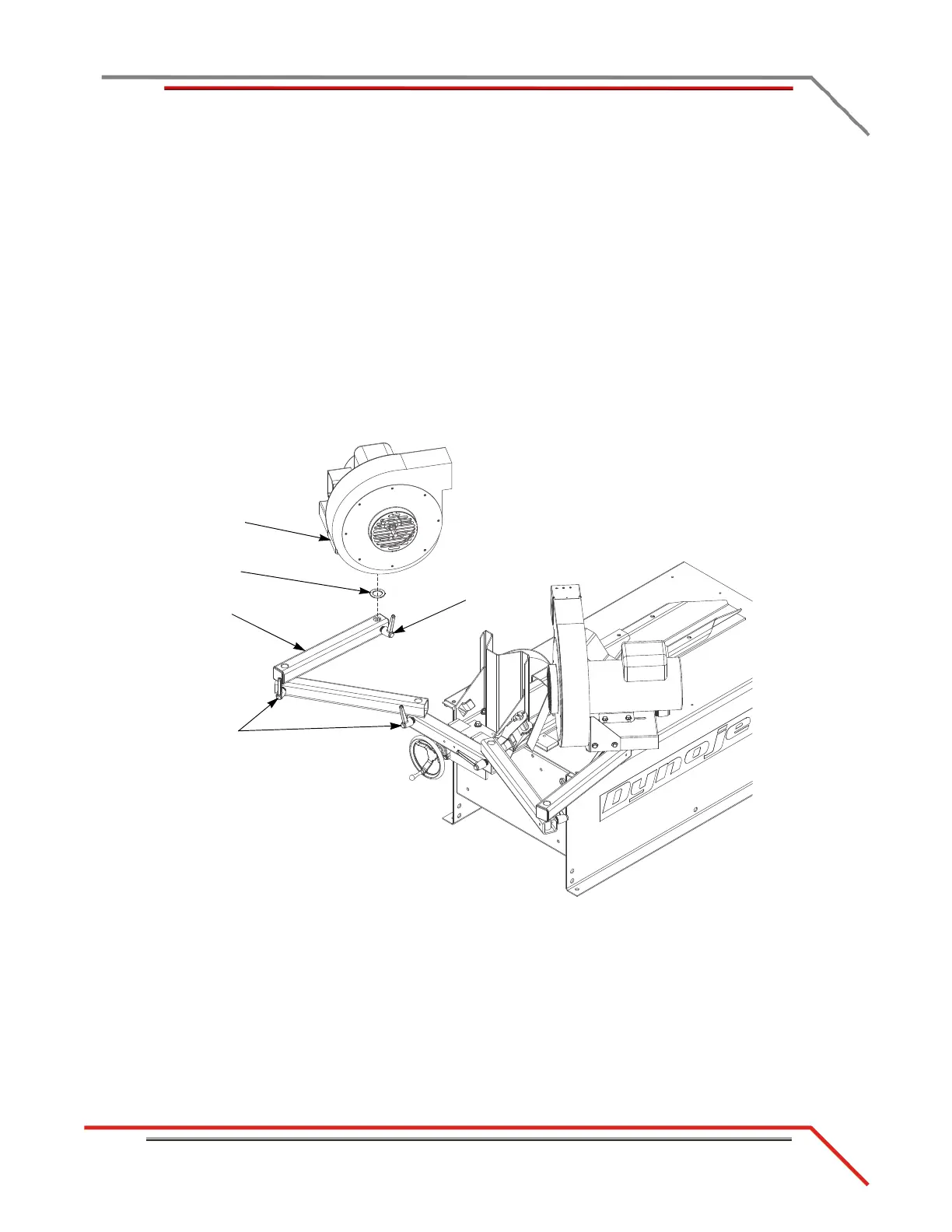

Figure C-3: Install the Blower Assemblies
blower assembly
poly washer
pivot arms
clamp lever
clamp lever
