HIGH PRESSURE BLOWER INSTALLATION
Stand Alone Blower Installation
Version 4 High Pressure Blower Installation Guide
STAND ALONE BLOWER INSTALLATION

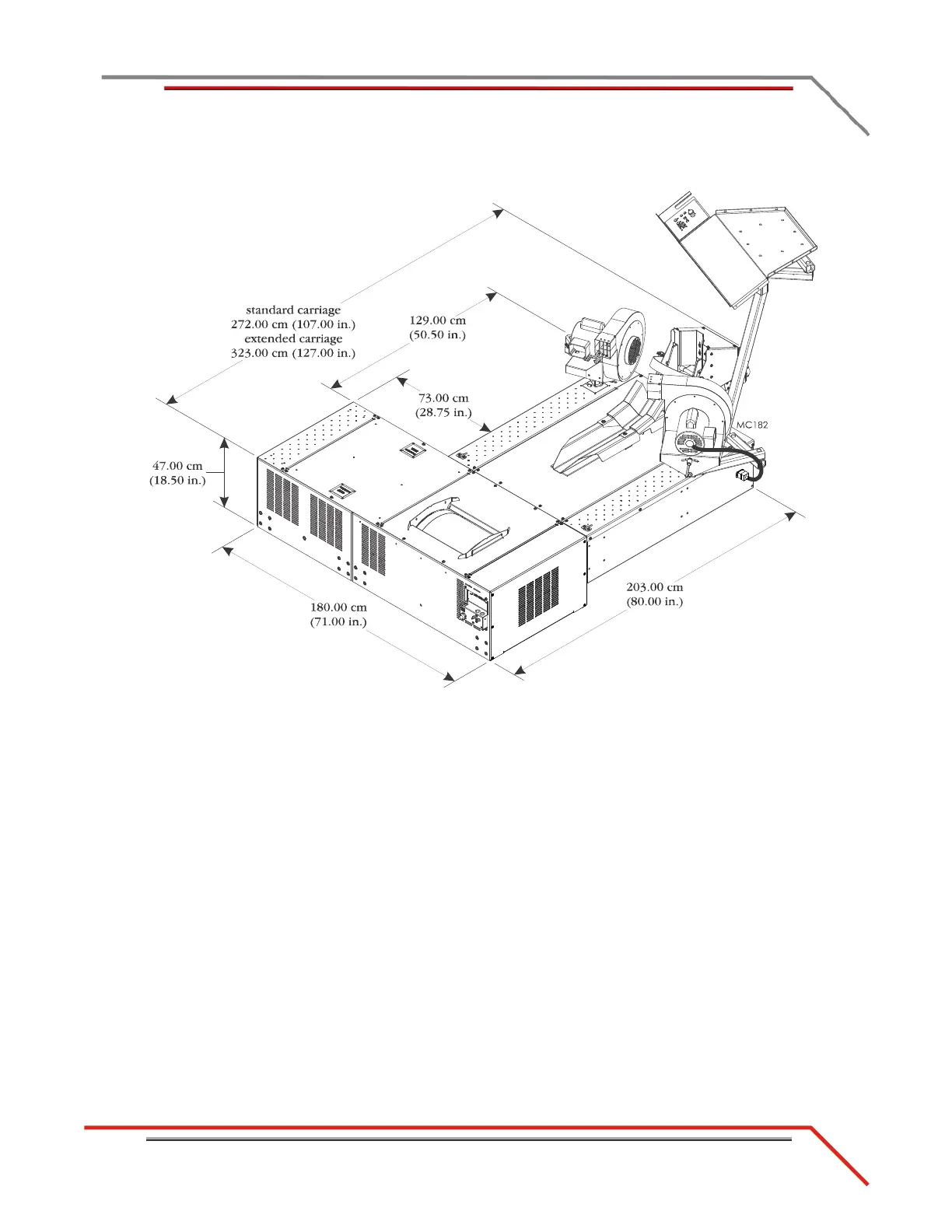

The stand alone blower base was designed for use with pit dynos and automotive
dynos allowing you to direct air flow where you need it. The stand alone base will also
accommodate the older style fans.

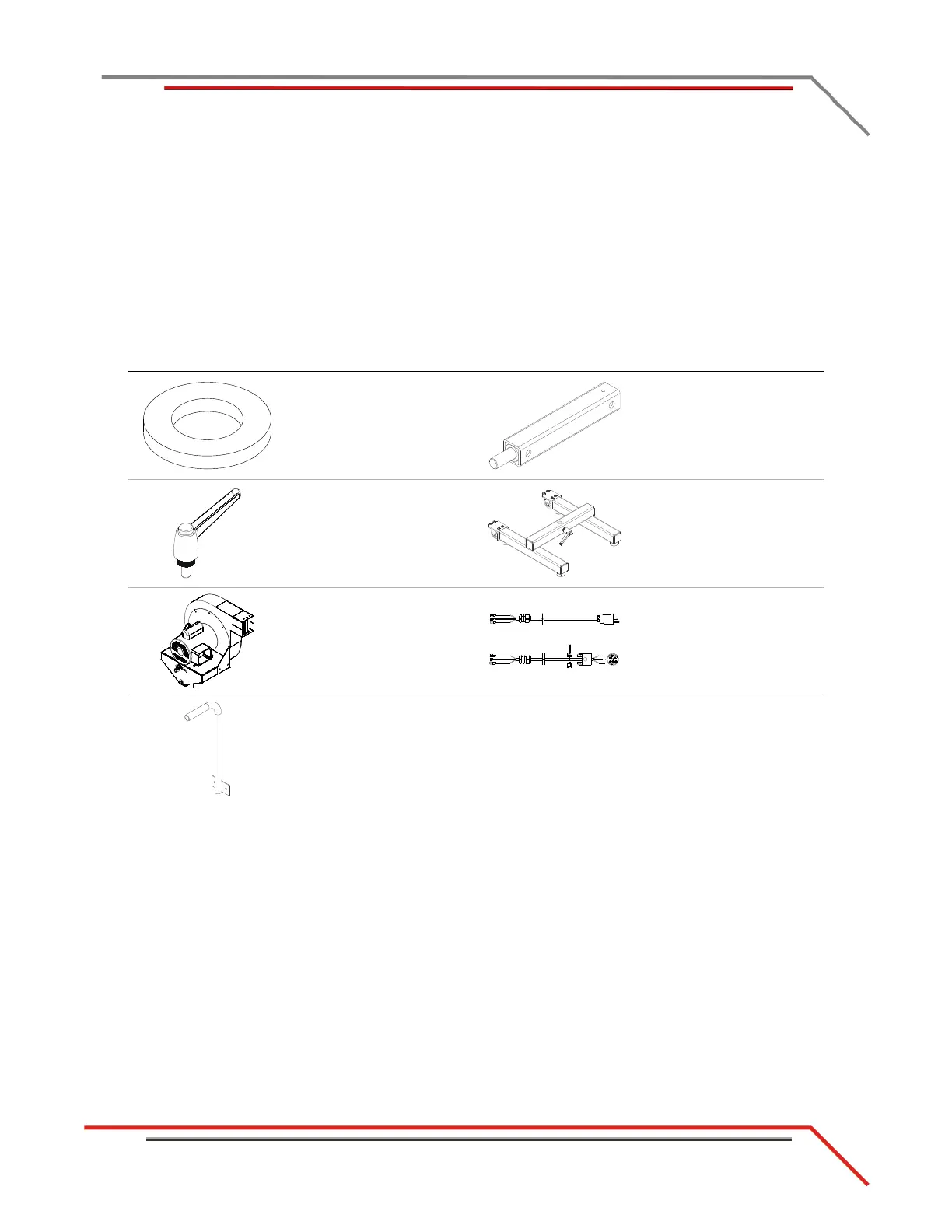

The following table lists all of the parts included in the Stand Alone High Pressure
Blower Base kit (P/N 71329002 for 120V or P/N 71329003 for 240V). Check your kit
against the parts listed to make sure you have received all of the parts. If any part is
missing, contact Dynojet Technical Support.
part description part description
washer 1.87 x 1.25 ID x .12
thick. poly (2)
P/N 26215520
stand alone extension
assembly (2)
P/N 61329111P
clamp lever, 3/8-16 x 3/4" (2)
P/N 35712991
stand alone base assembly (2)
P/N 61329600
blower assembly, right
P/N 61300000
blower assembly, left
P/N 61300003
cable, blower assembly
power, 120V (2)
P/N 76950001
cable, blower assembly
power, 240V (2)
P/N 76950026
stand alone handle
assembly (2)
P/N 61329001P
