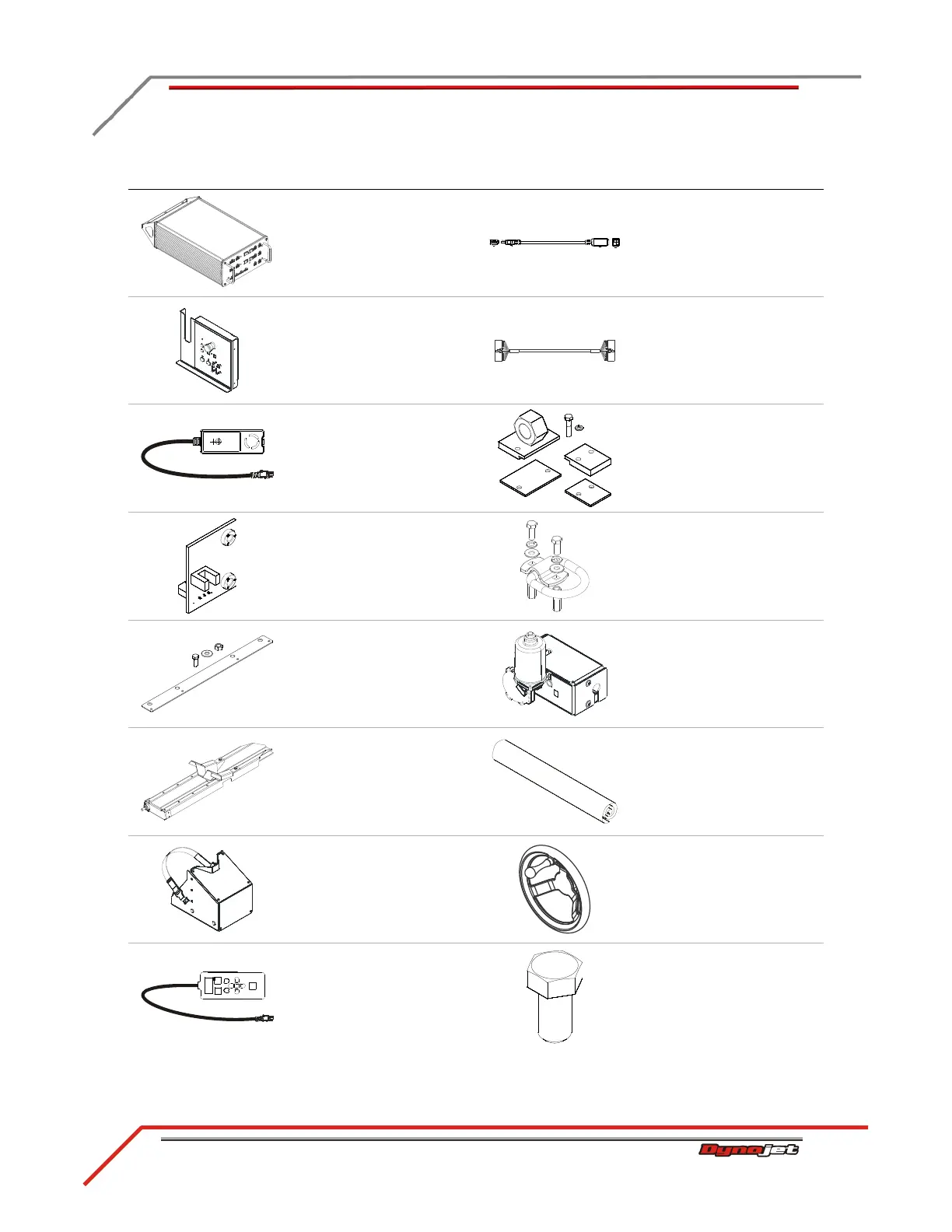

APPENDIX B
Model 200iX/250iX In Ground Blower Installation
High Pressure Blower Installation Guide
B-10
CABLE ROUTING
1 Route each high pressure blower cable from the CPI through the designated
power pit conduit, through the pit, and into the junction box.
2 Attach the two blower connectors to the junction box using 4-40 screws.
Note: The blower connectors are attached to the blower cables.
3 Connect the cables from each blower to the connectors on the junction box.
Note: Use the extension cable for the blower furthest from the junction box.
4 Plug the power cord from this blower into the supplied blower extension cable and
into the power source located at the junction box.

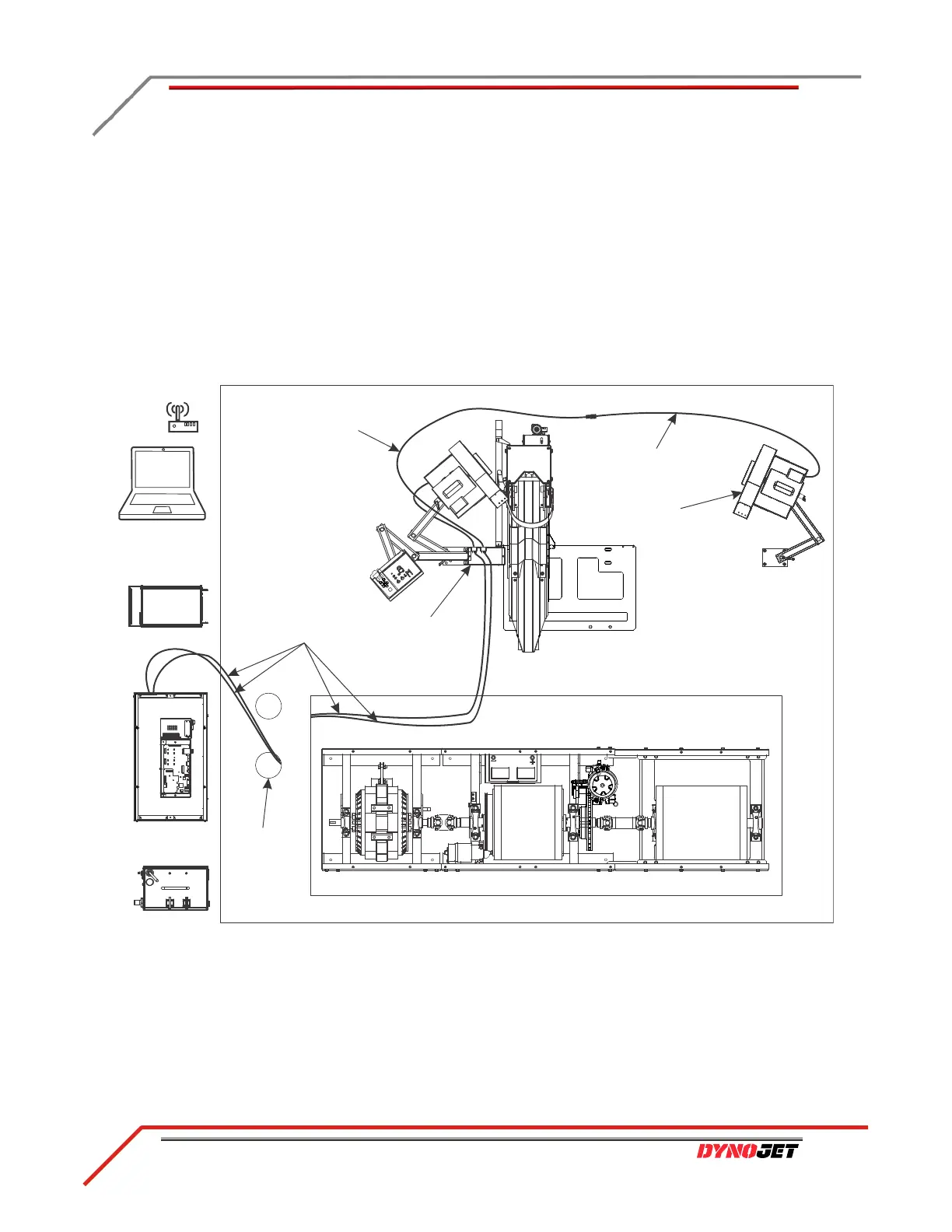

Figure B-7: Routing the Cables—In Ground
K
Q
L
junction box
route power cables
in designated
pit conduit
B
high pressure blower
extension cable
high pressure blower cable
high pressure blower cable
To Next Page
