APPENDIX B
Model 200iX/250iX Above Ground Blower Installation
High Pressure Blower Installation Guide
B-2
MODEL 200IX/250IX ABOVE GROUND BLOWER INSTALLATION
The high pressure blower supplies air to cool the bike’s engine. This section will walk
you through the blower installation procedures. For complete dyno installation
instructions, refer to the Above Ground Model 200iX/250iX Motorcycle
Dynamometer Installation Guide
P/N 98200077.

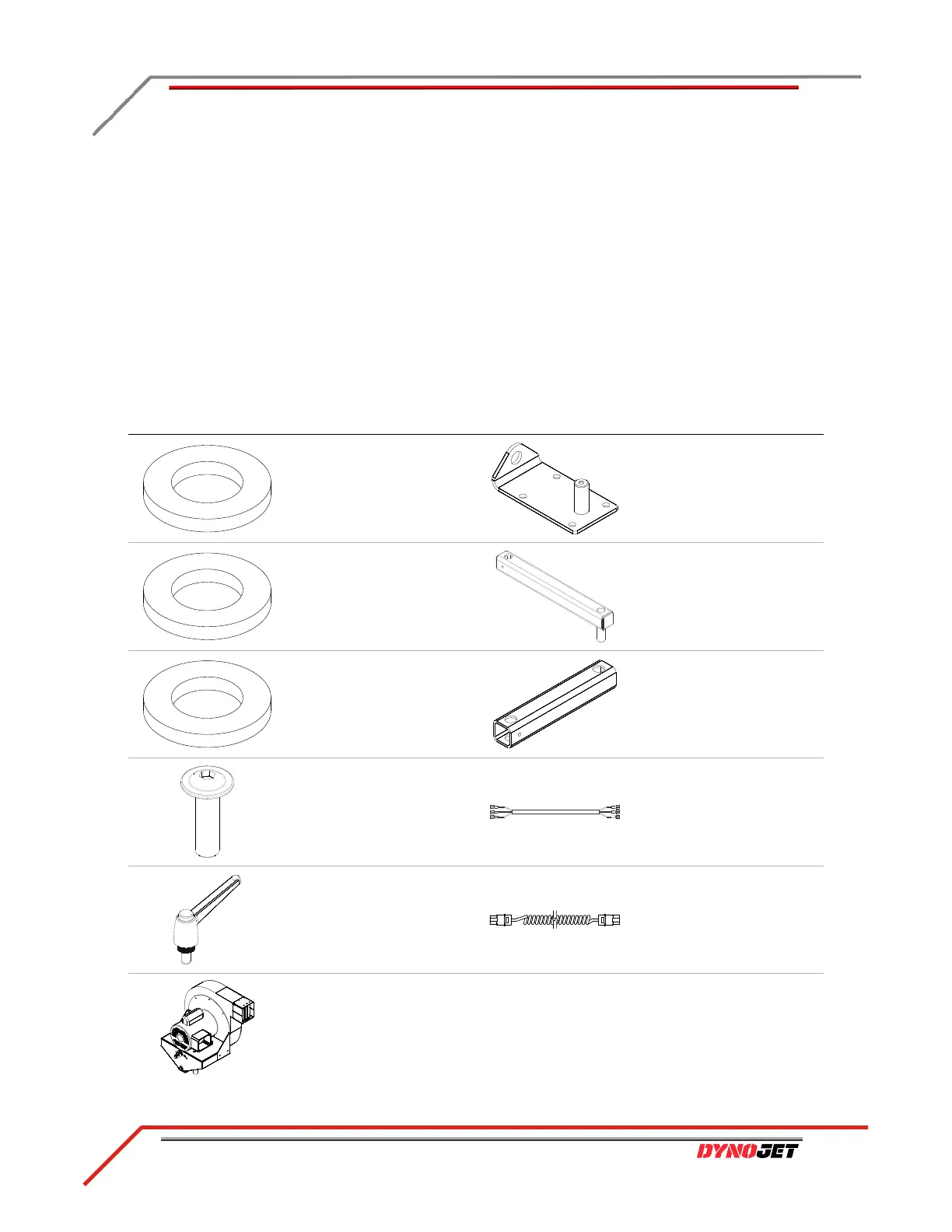

The following table lists all of the parts included in the High Pressure Blower
Installation kit (P/N 76722003). Check your kit against the parts listed to make sure
you have received all of the parts. If any part is missing, contact Dynojet Technical
Support.
Note: Be sure to replace your lower blower arm assemblies with the ones
included in your iX upgrade kit.
part description part description
washer 1.5 x .38 ID x .187
thick, aluminum (2)
P/N 26215220
fan arm mount (2)
P/N 61300009P
*included in iX upgrade kit.
washer 1.87 x 1.25 ID x .12
thick, poly (4)
P/N 26215520
upper pivot arm assembly
P/N 63400000
washer 1.87 x 1.25 ID x .25
thick, poly (4)
P/N 26215521
lower blower arm
P/N 63400002
*included in iX upgrade kit.
bolt, 3/8-16 x 1.25", button-
head, flange (8)
P/N 36582034
cable, fan power extension
P/N 76950053
*included in iX upgrade kit.
clamp lever, 3/8-16 x 3/4" (8)
P/N 35712991
cable, POD to fan extension
P/N 76950317
*included in iX upgrade kit.
blower assembly, right
P/N 61300000
blower assembly, left
P/N 61300003
