High Pressure Blower Installation Guide
C-4
INSTALLING THE EXTENSION ARM ASSEMBLY
The blower extension arm assembly comes ready to mount to the tire stop on the
dyno.
1 Remove the two screws securing the extension arm assembly to the crate and
remove the assembly from the crate.
2 Secure the pivot bracket on the extension arm assembly to the tire stop using four
3/8-16 x 1.5-inch bolts and four 5/16-inch washers.
Note: If you modified the tire stop, you will also need to use four 3/8-inch nylock
nuts.

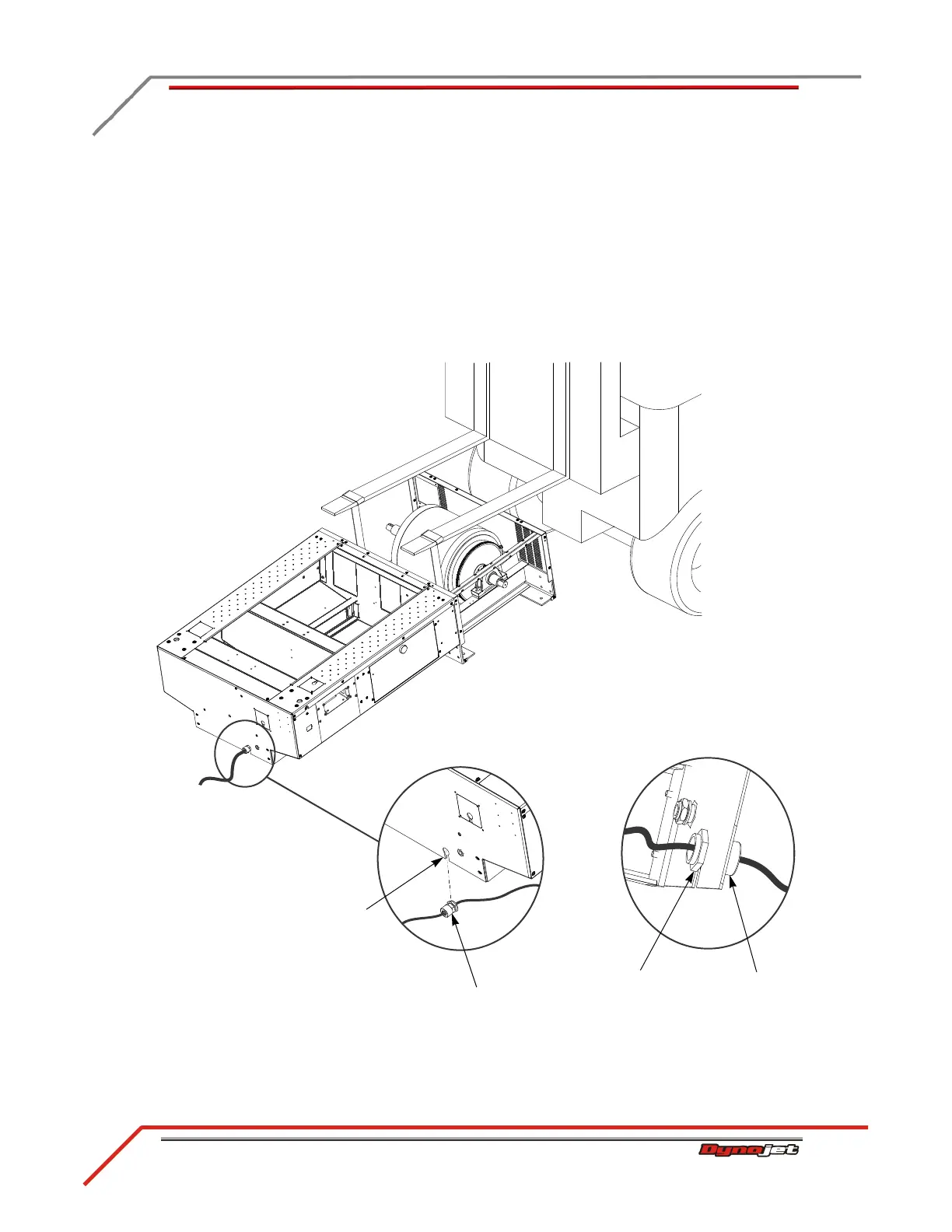

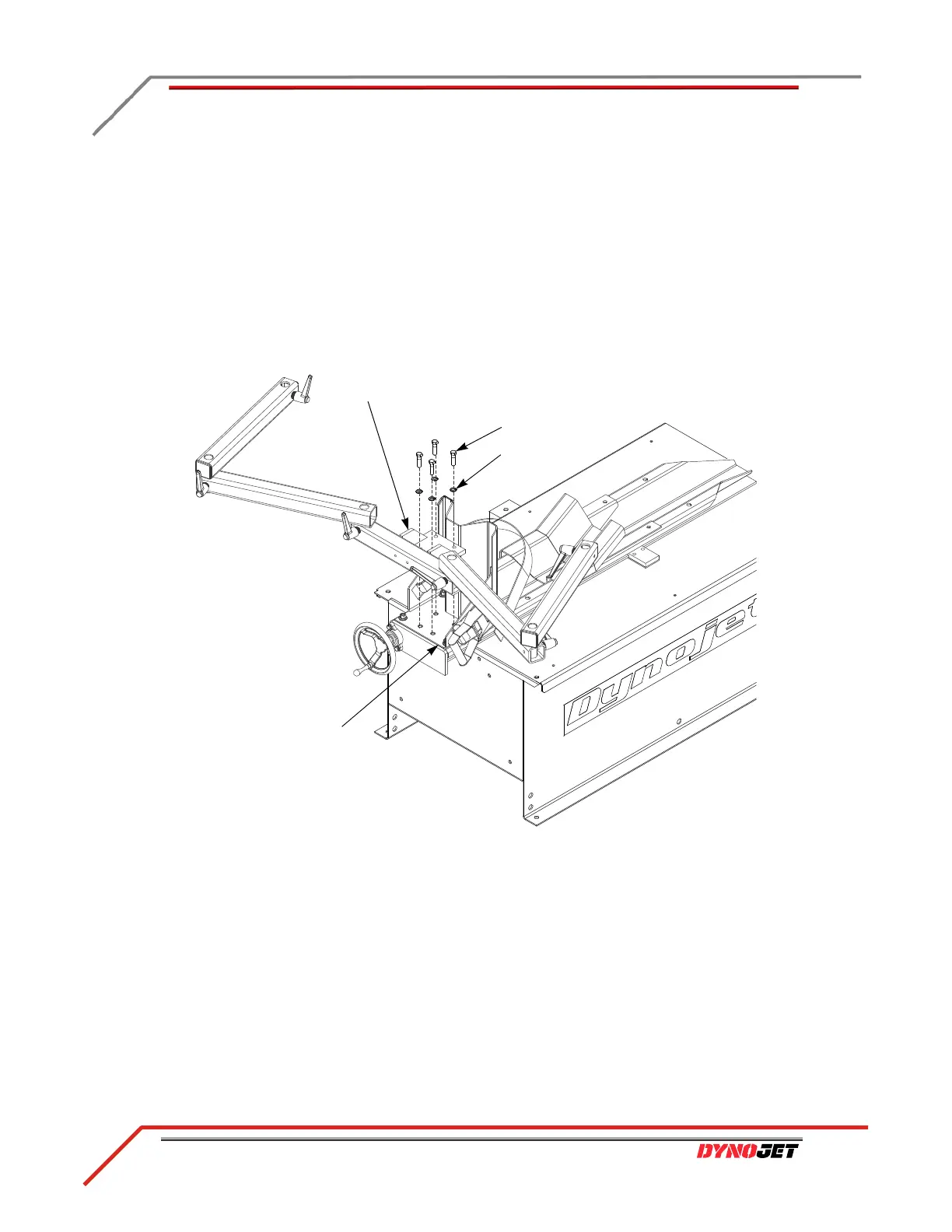

Figure C-2: Secure the Pivot Arm Assembly to the Tire Stop
bolt
washer
bracket
tire stop
