HIGH PRESSURE BLOWER INSTALLATION

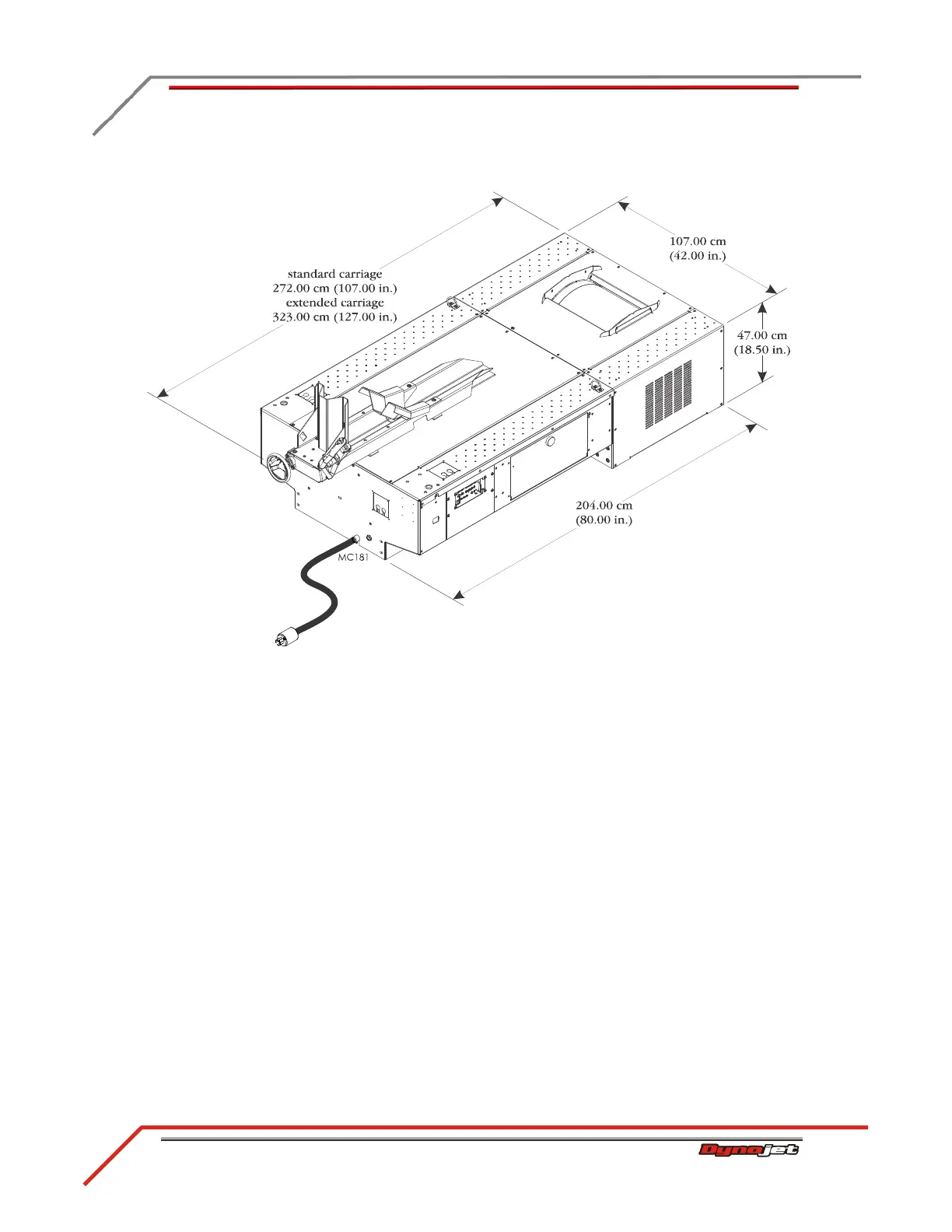

Model 200i/250i In Ground Blower Installation
High Pressure Blower Installation Guide
12
ROUTING THE BLOWER CABLES
Use the following instructions along with Figure 7 on page 12 for routing and
connecting the blower cables. For more detailed cable routing instructions, refer to the
In Ground Model 250iP Motorcycle Dynamometer Installation Guide
P/N 98200053
and the i-Dyno Wiring Schematic P/N 98200082 for additional wiring information
and schematics.
1 Route each high pressure blower cable from the CPI through the designated
power pit conduit, through the pit, and into the junction box.
2 Connect the cables from each blower to the AC sockets on the junction box.
3 Use the blower extension cable for the blower furthest from the junction box. Plug
the power cord from this blower into the supplied blower extension cable and into
the AC socket located at the junction box.
Figure 7: Routing the Blower Cables—In Ground
H 035B
high pressure blower
CPI to junction box cable
control panel
interface (CPI)
route power cables in designated pit conduit
high pressure
blower cable
high pressure blower
high pressure
blower cable
blower extension cable
junction box
AC socket
high pressure blower
CPI to junction box cable
