High Pressure Blower Installation Guide
C-2
INSTALLATION

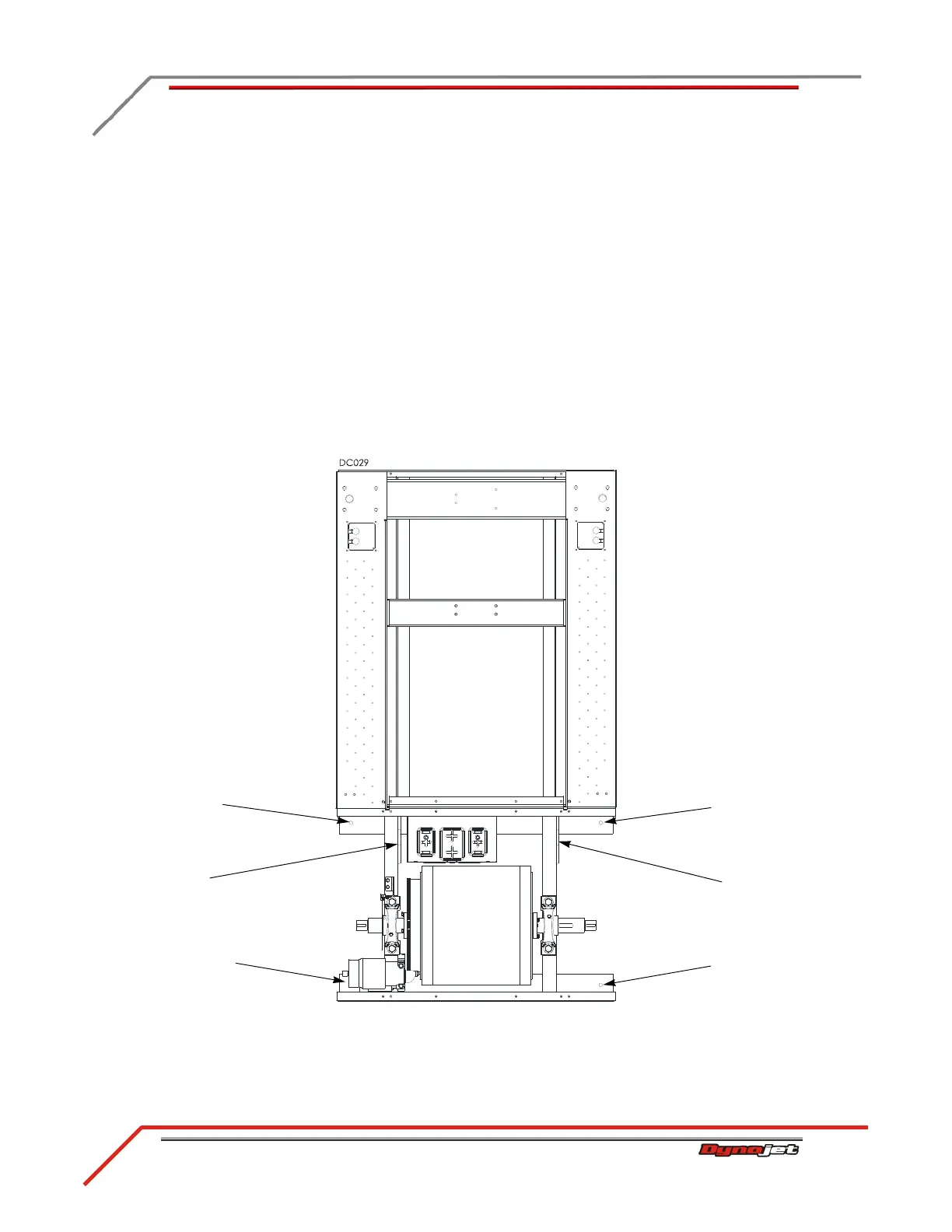

The high pressure blower supplies air to cool the bike’s engine. The blower pivot arms
assembly comes ready to mount to the tire carriage on the dyno.

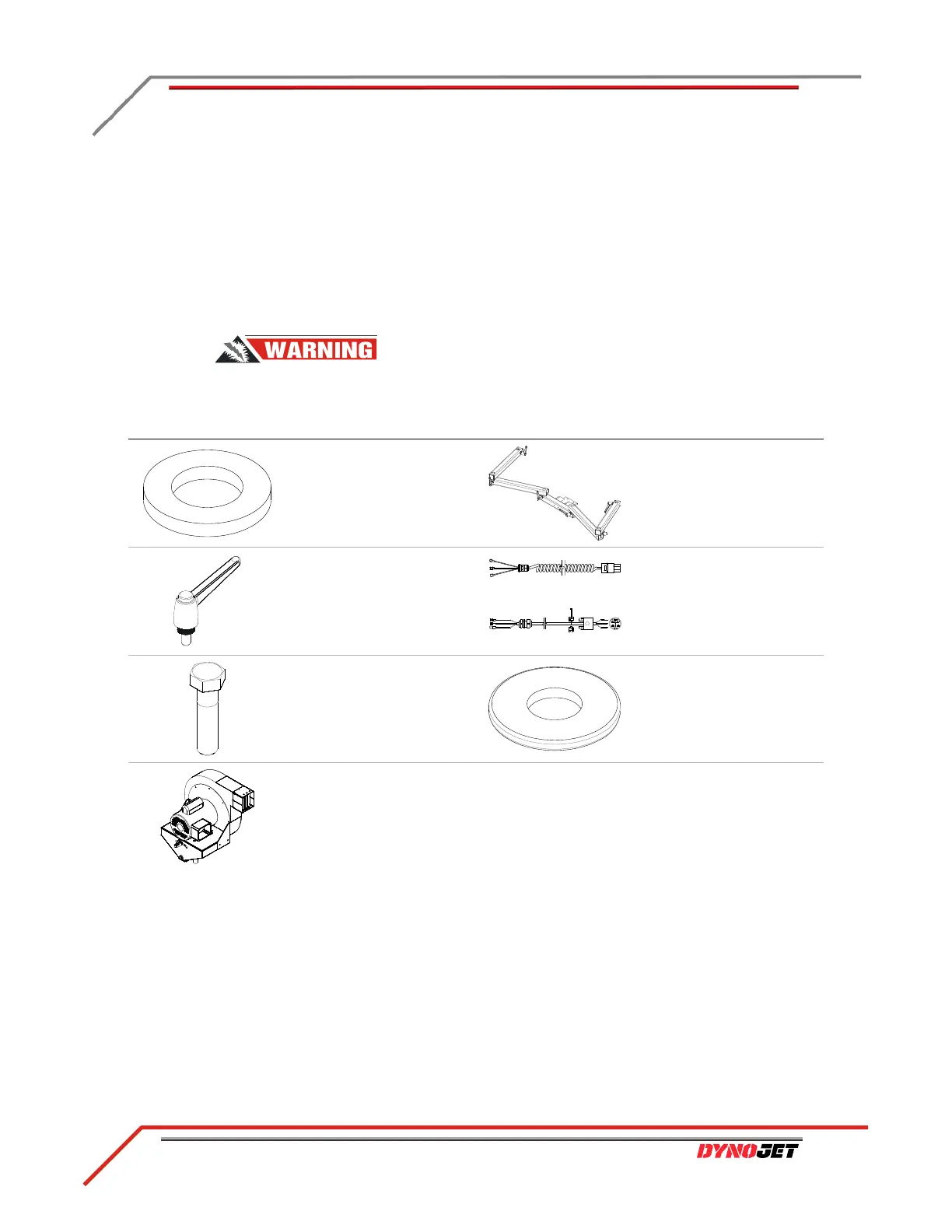

The following table lists all of the parts included in the High Pressure Blower
Installation kit (P/N 77020002 for 110V and P/N 77020003 for 220V). Check your kit
against the parts listed to make sure you have received all of the parts. If any part is
missing, contact Dynojet Technical Support.
To prevent possible injury, disconnect the battery before performing any
dyno maintenance or installing any optional accessory.
part description part description
washer 1.5 x .38 ID x .187
thick. poly (2)
P/N 26215220
blower pivot arms assembly
P/N 63413002
clamp lever, 3/8-16 x 3/4" (2)
P/N 35712991
cable, blower power, 120V (2)
P/N 76950001
or
cable, blower power, 240V (2)
P/N 76950026
bolt, 3/8-16 x 1.5", hex (4)
P/N 36582477
washer, 5/16
"
, flat (4)
P/N DM150-002-007
blower assembly, right
P/N 61300000
blower assembly, left
P/N 61300003
