CHAPTER 3
Air Brake
Above Ground Model 250i Mot
orc
ycle Dynamometer Inst
alla
tion Guide
3-8
5
Secure the switch body to th
e control pane
l using the switch body nut
removed
earlier.

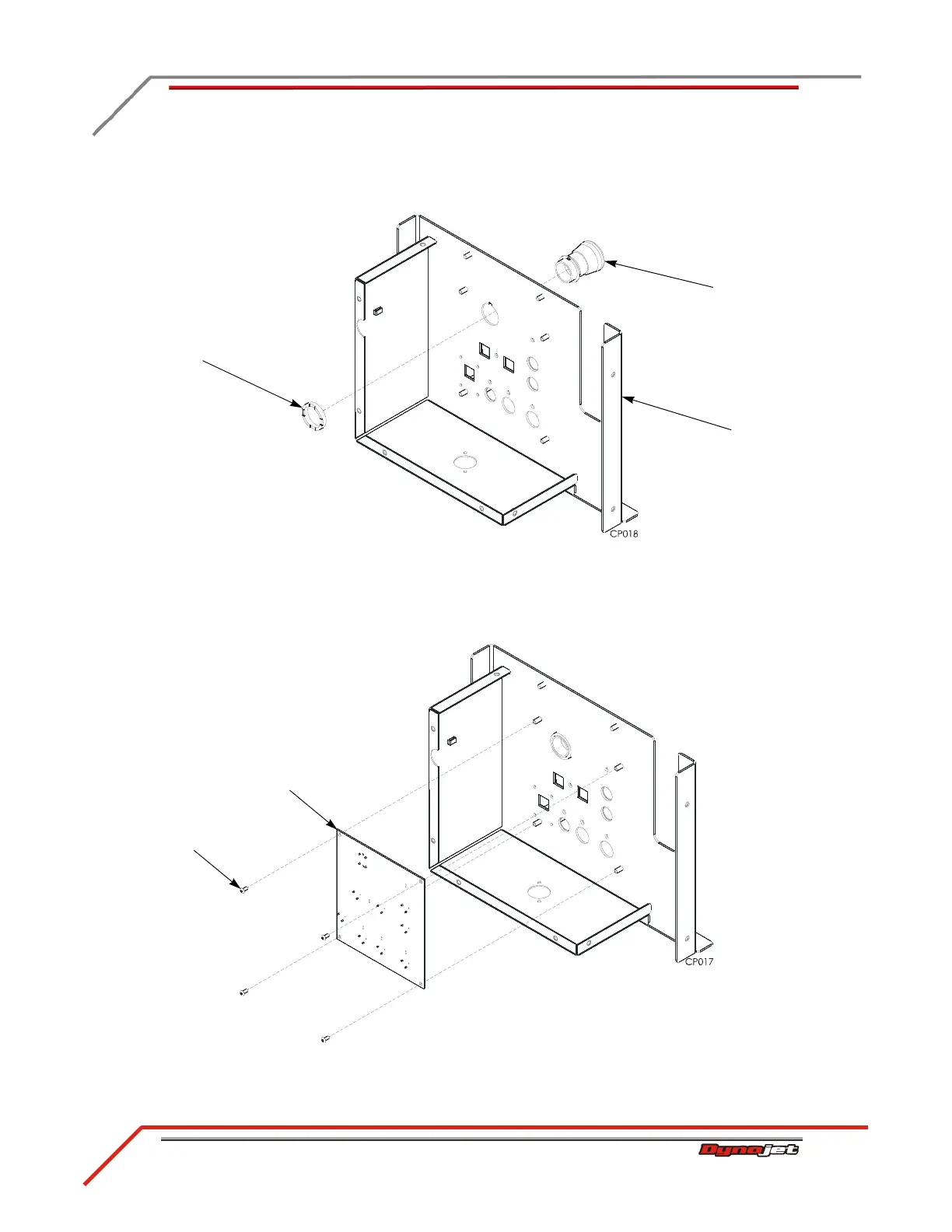

Figure 3-8: Replace the Emergency Stop Button
6
Secure the Button board to t
he control panel using
the four screws removed
earlier.
Figure 3-9: Secure the Button Board
switch body
switch body nut
control panel
screw
button board
87
89
