15.8 Replacing the printer paper

Follow these instructions to change the paper roll in the printer.

Close the whole block of the lid of the printer,

pressing it lightly so as to hook it on to the device.

At this point it is possible to use the printer. See

the parameter "Print".

Lift the top tile, indicated by the arrow.

Lift the whole block of the lid completely.

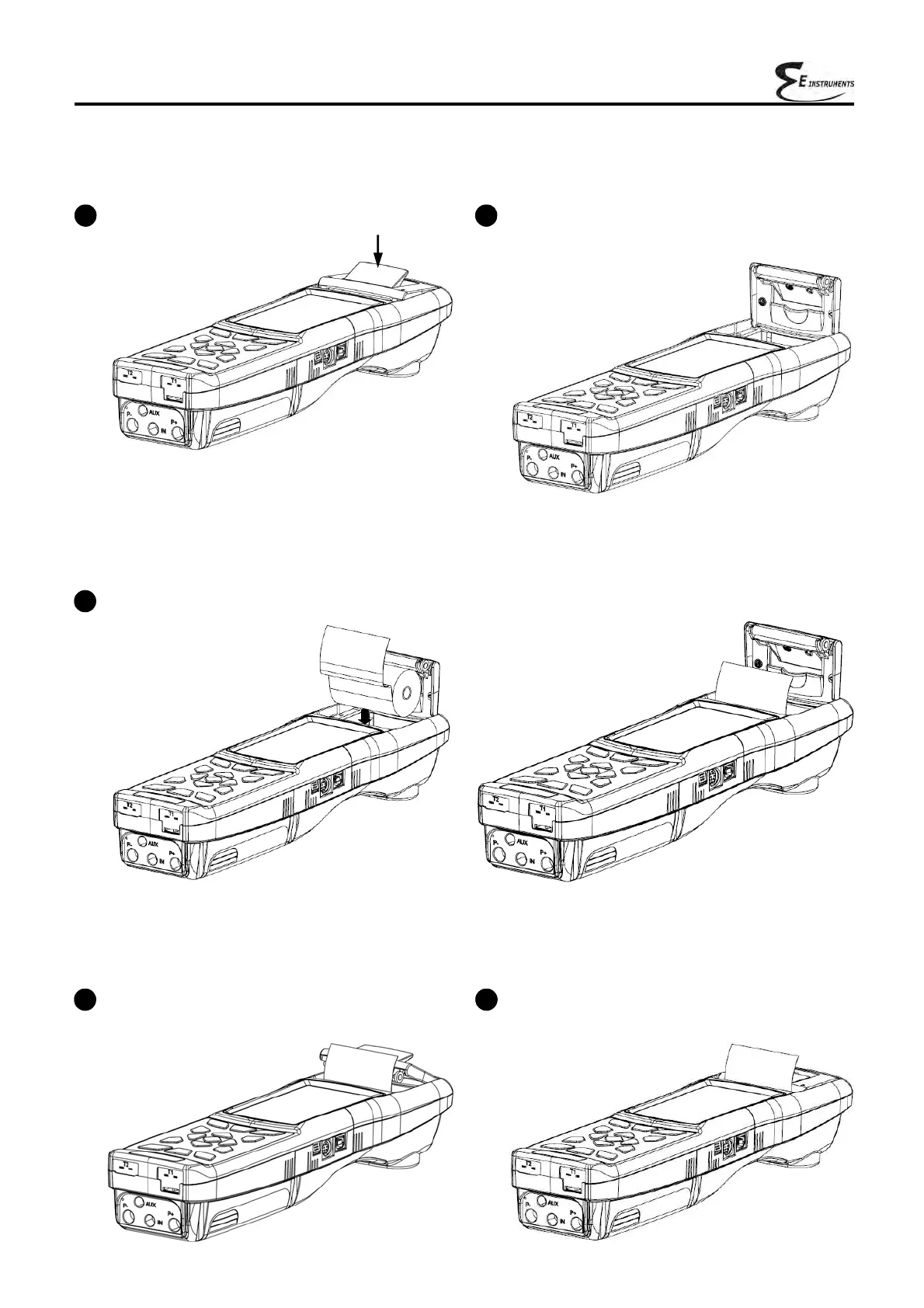

Insert the roll of printing paper as shown in the following figures.
