E-TON EV3 E-MO - Removing Headlight; Meter; Meter Side Cover

11
21
31
41
51
3-4
1
2
4
5
3
(X3)
(X2)
T
R
.
.
4 Nm (0.4 m • kg, 2.9 ft • Ib)
T
R
.
.
4 Nm (0.4 m • kg, 2.9 ft • Ib)
T
R
.
.
4 Nm (0.4 m • kg, 2.9 ft • Ib)
SIDE COVER/ BODY COVER/
HEADLIGHT/ METER REMOVE AND INSTALL
CHK
ADJ

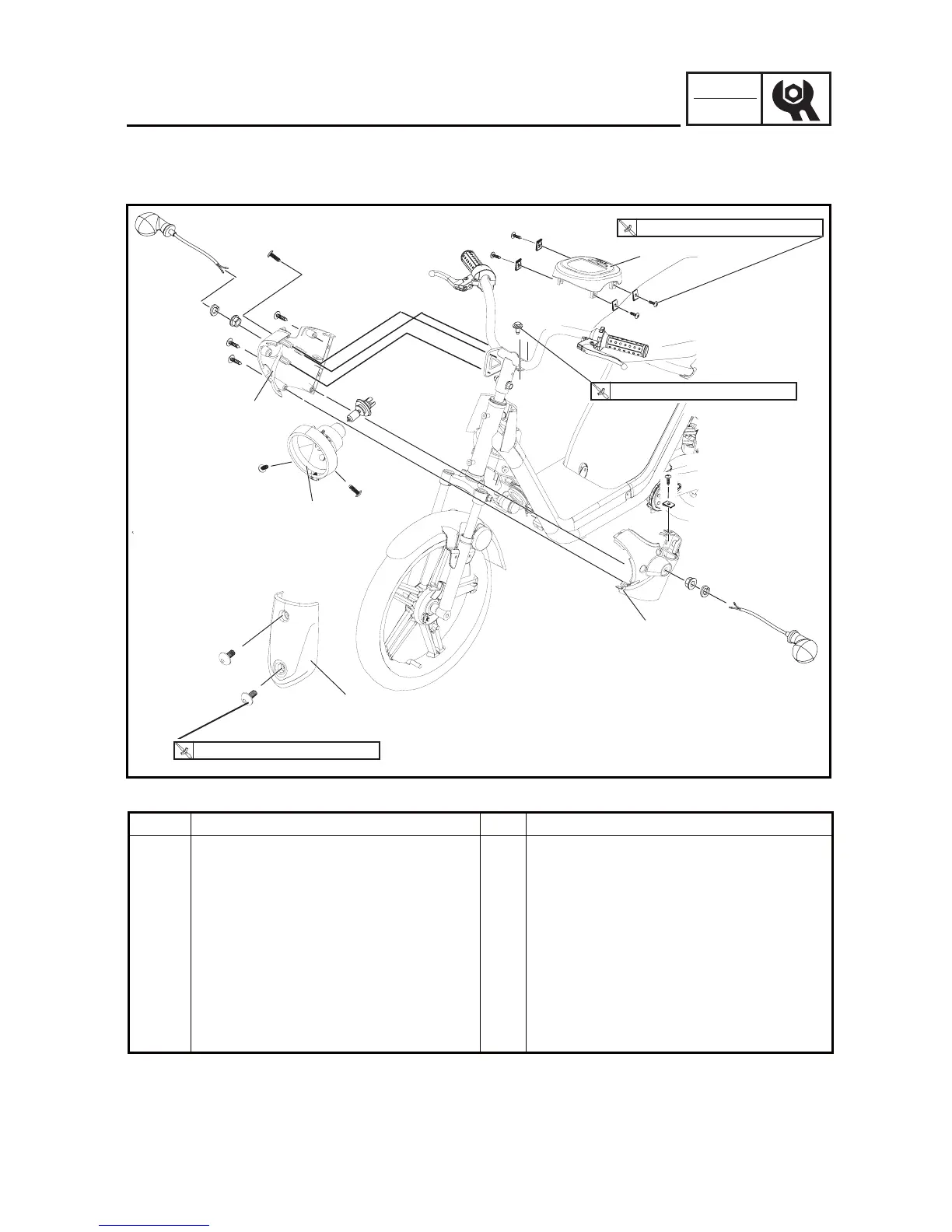

REMOVING HEADLIGHT/ METER/ METER SIDE COVER
Removing headlight/ meter/ meter side
cover
Remove the parts in the order listed.
For installation, reverse the removal pro-
cedure.
Front cap
Meter
Meter side (L)
Headlight
Meter side (R)
Order Job/Part Q’ty Remarks
