7-22

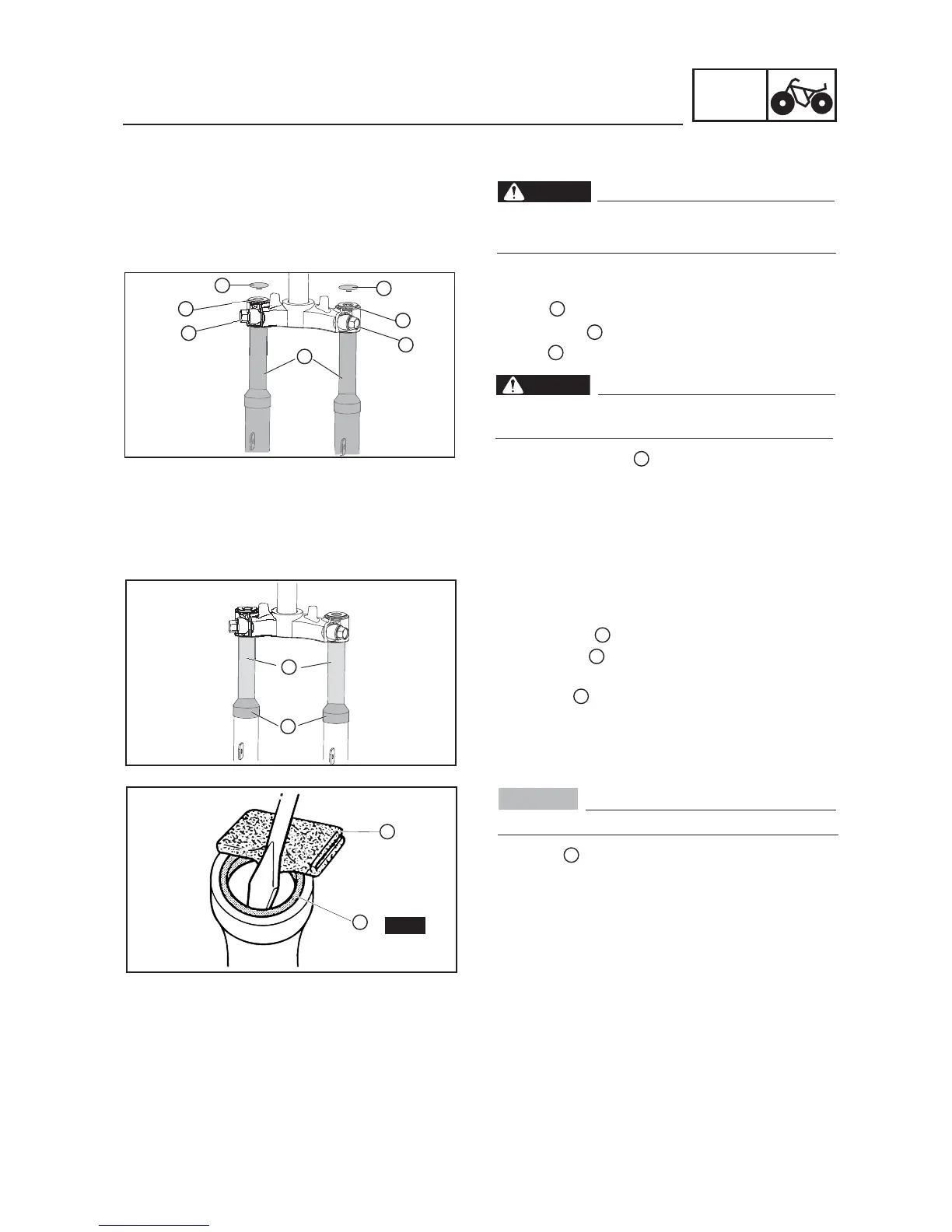

FRONT FORK
CHAS
1. Remove
REMOVING THE FRONT FORK
• Cap
is no danger of it falling over.
WARNING
• Securely support the scooter so that there
• Bolt
• Nut (fork)
WARNING
• Front fork (L/ R)
The fork spring would spring, should pay
attention when remove the bolt.
DISASSEMBLE THE FRONT FORK
1. Remove
• Inner tube
• Dust seal
• Oil seal
• Circlip
• Outer tube
• Wiper
Do not reuse the oil seal.
NEW
NOTICE
1
1
2
3
3
4
4
1
2
1
1
2
2
2
3
3
a
a
a
