E-TON EV3 E-MO - Removing and Installing Rear Bottom Cover; Rear Fender

11
21
32
42
51
3-5
1
2
3
4
5
3
4
(X4)
T
R
.
.
25 Nm (2.5 m • kg, 18.1 ft • Ib)
T
R
.
.
4 Nm (0.4 m • kg, 2.9 ft • Ib)
T
R
.
.
35 Nm (3.5 m • kg, 25.3 ft • Ib)
T
R
.
.
4Nm(0.4m• kg, 2.9 ft • Ib)
61
6
REMOVING AND INSTALLING
REAR BOTTOM COVER/ REAR FENDER
CHK
ADJ

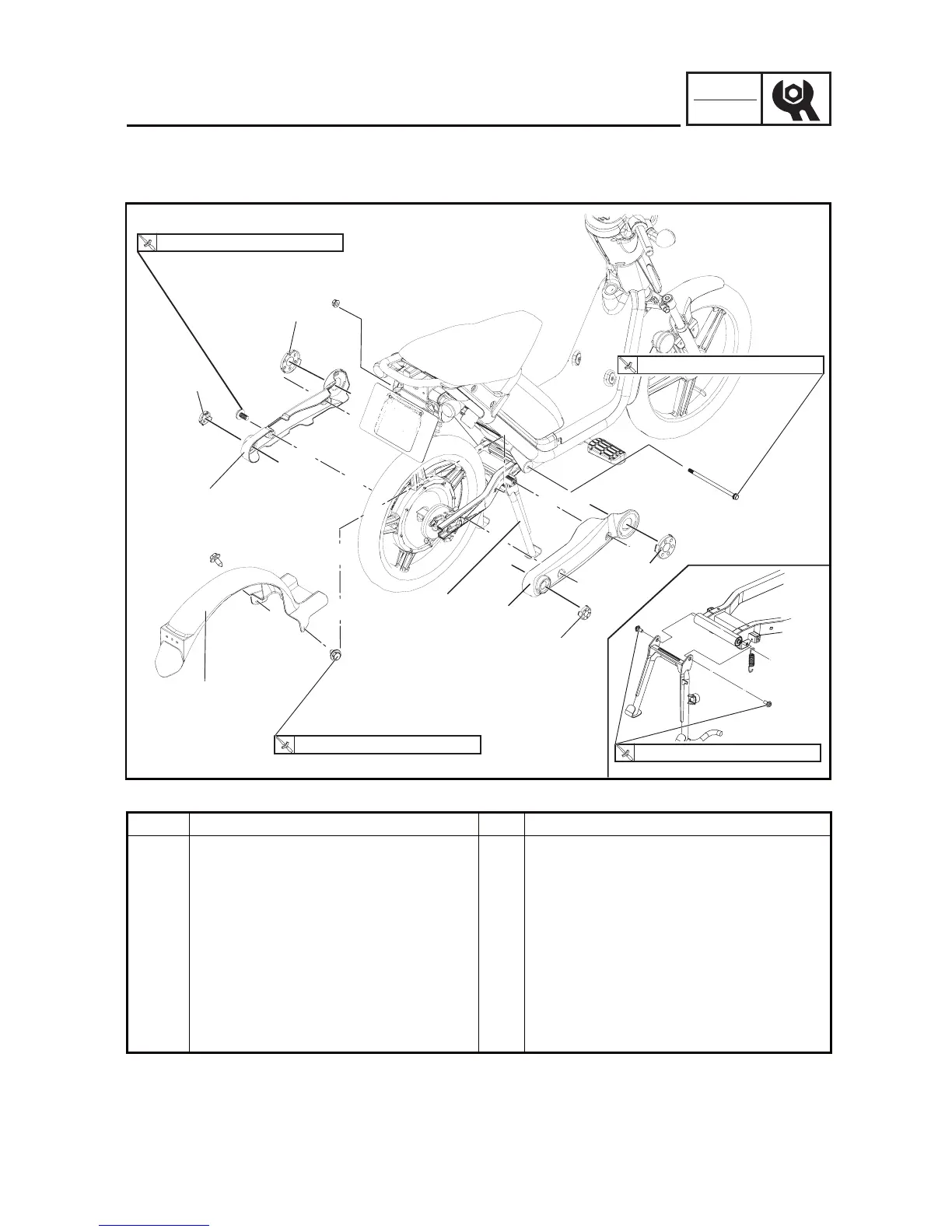

REMOVING REAR BOTTOM COVER/ REAR FENDER
Remove the parts in the order listed.
For installation, reverse the removal pro-
cedure.
Order Job/Part Q’ty Remarks
Removing rear bottom cover/ rear fender
Rear bottom cover (L)
Rear bottom cover (R)
Cap A
Cap B
Rear fender
Main stand
