E-TON EV3 E-MO - Front Brake; Rear Brake; Front Brake

1
3
4
5
6
2
21
1
41
1
51
61
7
8
9
1
2
1
31
7
8
9
7-5
T
R
.
.
35 Nm (3.5 m • kg, 25.3 ft • lb)

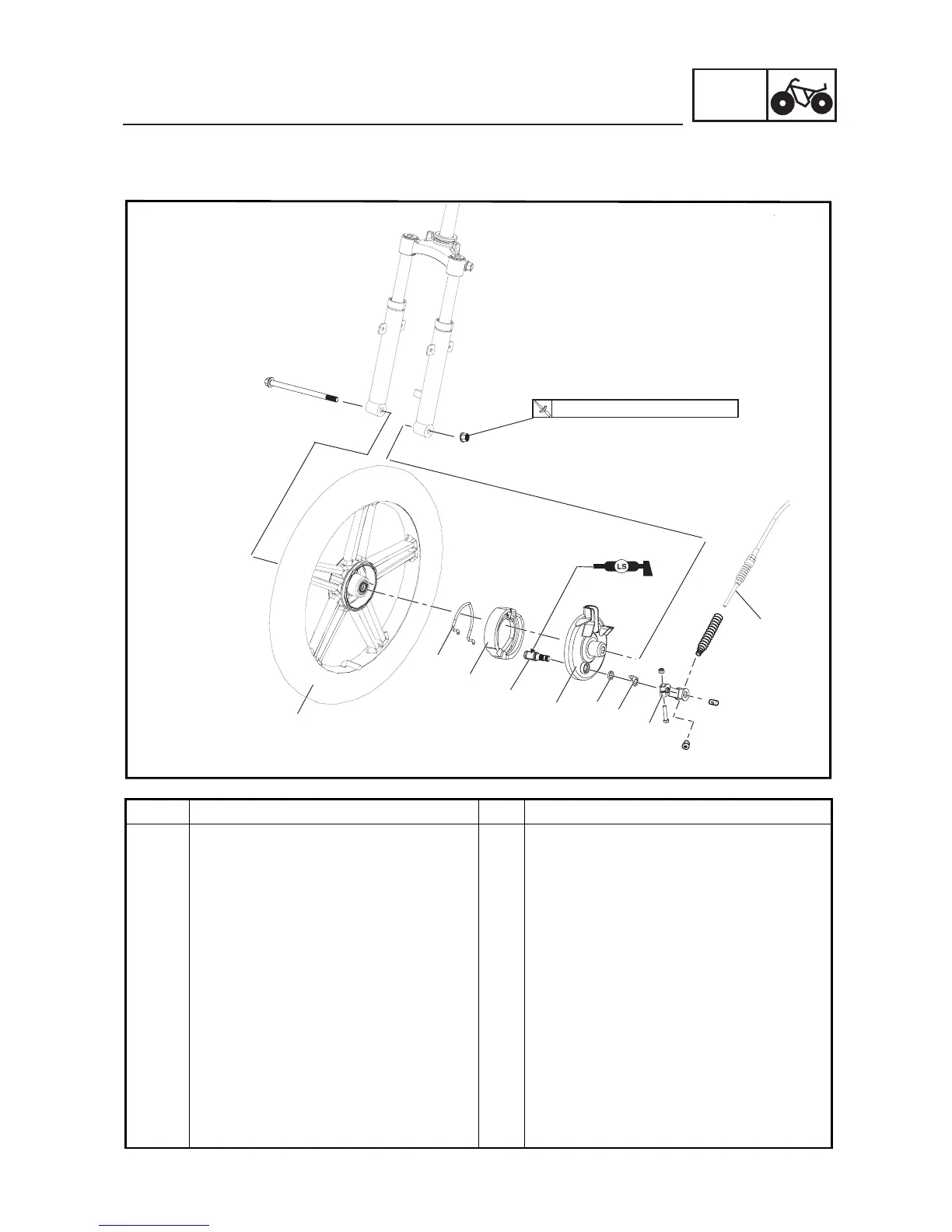

FRONT BRAKE / REAR BRAKE
FRONT BRAKE
CHAS
RemarksQ’tyJob/PartOrder
Removing the front brake Remove the parts in the order listed.
Please refer to " LOWER BRACKET "
in cheaper 7.
For installation, reverse the removal pro-
cedure.
Front fender
Front
brake cable
Front wheel
Brake arm
Brake indicator
Felt seal
Spring
Brake shoe
Brake arm cam
Brake disk A
