SIGNALING SYSTEM
6-14

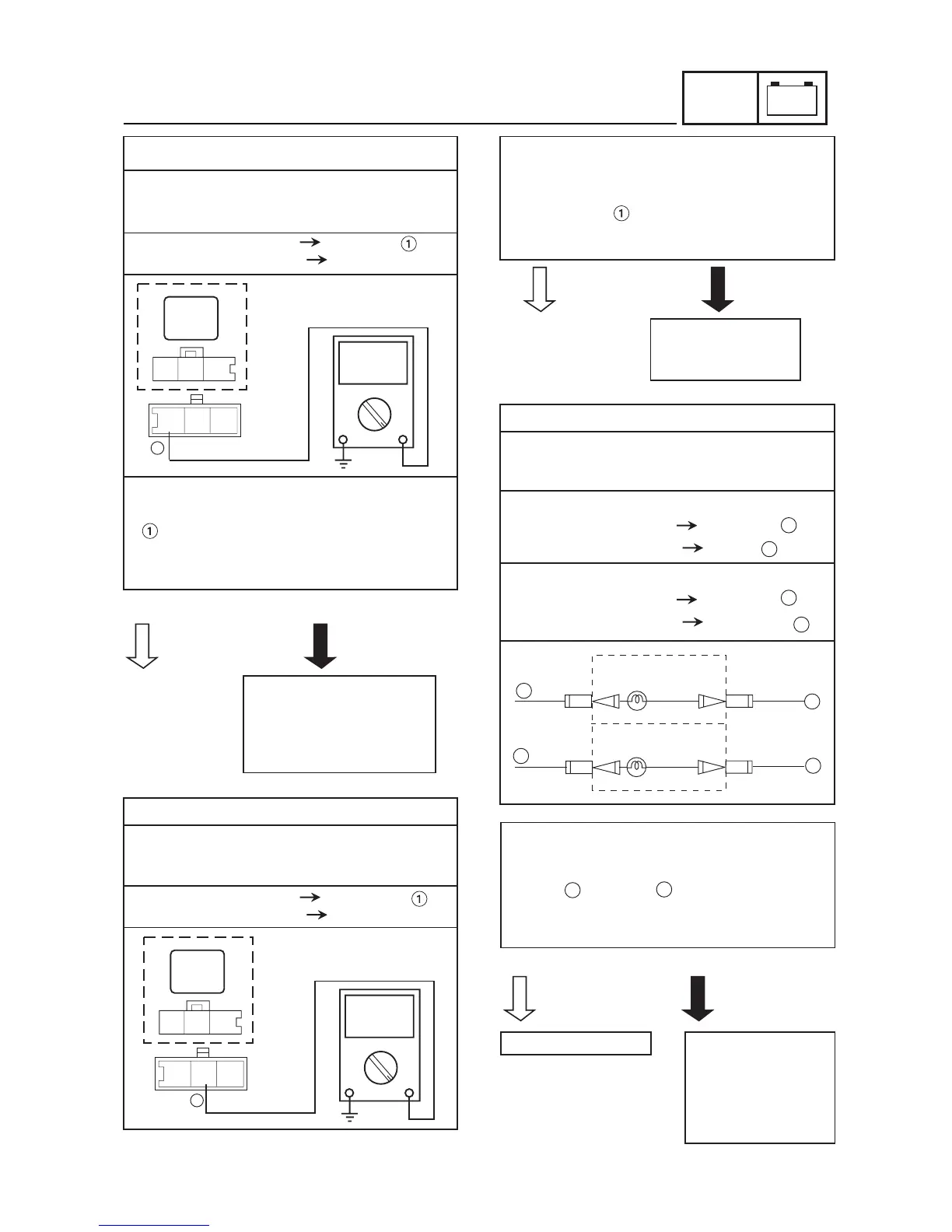

3. Voltage
• Connect the pocket tester (DC 20 V) to the
turn signal relay coupler (wire harness side)
as shown.
Positive tester probe
red/white
red/white
Negative tester probe ground
• Set the main switch to “ON”.
• Measure the voltage (DC 12 V) on red/white
at the turn signal relay coupler (wire har-
ness side).
• Is the voltage within specification?
4. Voltage
• Connect the pocket tester (DC 20 V) to the
turn signal relay coupler (wire harness side)
as shown.
Positive tester probe
yellow/red
Negative tester probe ground
• Set the main switch to “ON”.
• Set the turn signal switch to “L” or “R”.
• Measure the voltage (DC 12 V) on
yellow/red
at the turn signal relay cou-
pler (wire harness side).
• Is the voltage within specification?
5. Voltage
• Connect the pocket tester (DC 20 V) to the
turn signal light connector or meter coupler
(wire harness side) as shown.
Right turn signal light
Positive tester probe
Negative tester probe
light green
-
+
1
The wiring circuit from
the main switch to the
turn signal relay coupler
is faulty and must be
repaired.
The turn signal
relay is faulty and
must be replaced.
YES
NO
YES
NO
1
1
2
2
red/white
Left turn signal light
Positive tester probe
Negative tester probe
brown
1
3
3
3
1
–+
ELEC
B/Y
B/Y
Y/R
Y/R
R/W
R/W
-
+
1
B/Y
B/Y
Y/R
Y/R
R/W
R/W
LG
Br
R/W
R/W
12V 10W
12V 10W
• Set the main switch to “ON”.
• Set the turn signal switch to “L” or “R”.
• Measure the voltage (DC 12 V) of the light
green or brown at the turn signal
light connector (wire harness side).
• Is the voltage within specification?
The wiring circuit
from the turn signal
switch to the turn
signal light connec-
tor is faulty and
must be repaired.
This circuit is OK.
YES
NO
2
