E-XTEQ DS One - Starting a Diagnostic Test Sequence

28/40
E-XTEQ DS ONE User Manual / Ref. MAN_DSOne_STL_EN_V1.3
Diagnostic PDI 6/9
START DIAGNOSTIC ////////

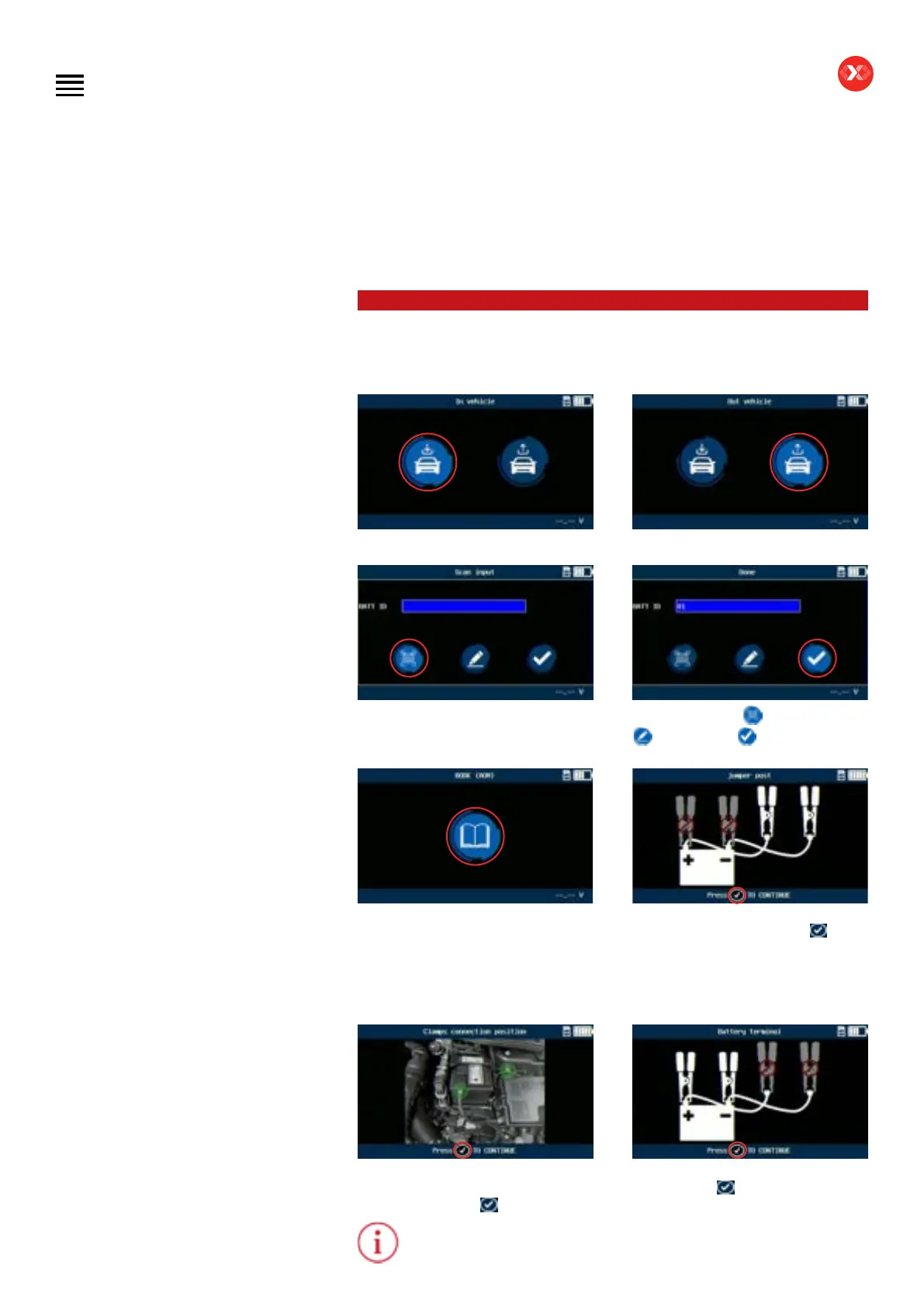

Once the characteristics of the battery are selected (either with the BK code or with
the VIN), the tool will ask if the battery is inside or outside the vehicle.
Select battery location, inside vehicle. Or out of the vehicle battery location.
If you select out of the vehicle, a
battery ID must be entered. Minimum
2 characters must be lled in.
Enter the ID using
or manually with
, then click on
to validate.
If a test is made using a BK code
containing a compensation value and
the battery is in the vehicle, or, this
screen will appear prompting the
user to consult the manual of clamp
connection positioning, if the vehicle
is not available in the database.
Then this screen stating a remote
connection will appear. Press
to continue.
Either a picture will show the
connection position of the clamps to
be respected. Press
to continue.
In all other cases this screen will
appear. Press
to continue.
The previous step will allow to calculate the resistance
due to the location of the battery if applicable.
