E-XTEQ DS One - Performing Diagnostic Test Steps and Checks

29/40
E-XTEQ DS ONE User Manual / Ref. MAN_DSOne_STL_EN_V1.3
Diagnostic PDI 7/9
START DIAGNOSTIC ////////

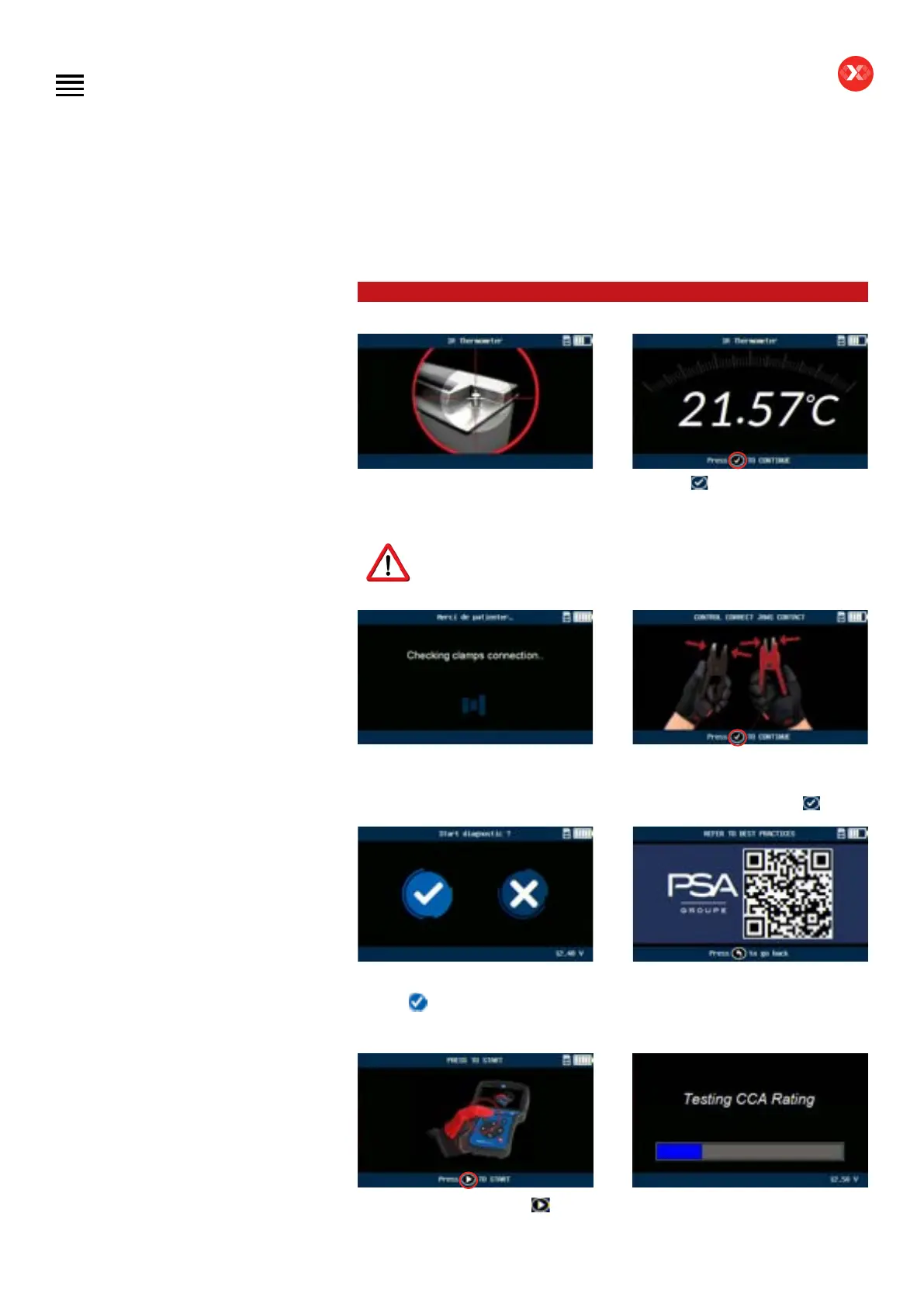

The tool will then ask you to point the
laser at the battery terminals to take
the temperature.
Press the
button on the keypad to
validate.
Do not point laser at individuals or reective objects.
If a clamp connection issue is detected
this screen will be displayed, please
check that the 2 jaws of both clamps
are in contact and press the
button.
The DS One will check the clamps
connection, please wait.
When the voltage is detected and
stable this screen will be displayed.
Click on
to start the diagnostic.
After three validation attempts, if there
is an issue with the clamp’s connection,
this screen will appear. Please refer to
the “Best Practices” section of the user
manual.
The tool will ask to press the
button to start the diagnostic.
If everything is connected properly
and voltage threshold acceptable, the
tool will complete the test.
