Eaglemaster E8 - White;red Engine control input( tachometer orgenerator input)

Yellow/black (-) factory disarm output
This wire sends a negative pulse every time the remote start is activated. This can be used
to pulse the disarm wire of the vehicle's factory anti-theft device. Use a relay to send a (-) or
(+) pulse to the disarm wire as shown in the diagrams below.
White/red Engine control input ( tachometer or generator input)
No. 9)
This input provides the module with information about the engine's revolutions per minute
(RPMs).
This input can be programmed three ways to detect engine status - run or not .
( Tachometer RPMs & Generator (+) /(-) & Voltage "noise" ) .
by programmable (Table-3 of
- Control by tacho sensor:
connection to such circuit is ensure right starter disconnection. There are some
cars where tacho signal amplitude is lower than 4V. Therefore you need to use additional
Capacitor .
- Control by generator (+) or (-):
connect the wire to "generator charge lamp" on dashboard. This wire circuit must
changed from 0V(engine stop) to 9-12V (engine running) or from +12V to 0V (Table-3 of
No. 9) there are some car models where +12V is appear when starter is running.
- Control by Voltage "noise" :
When you can't use engine control by tacho and by generator. Starter disconnection
according to the Table-3 of No.9 , white/red wire do not used.

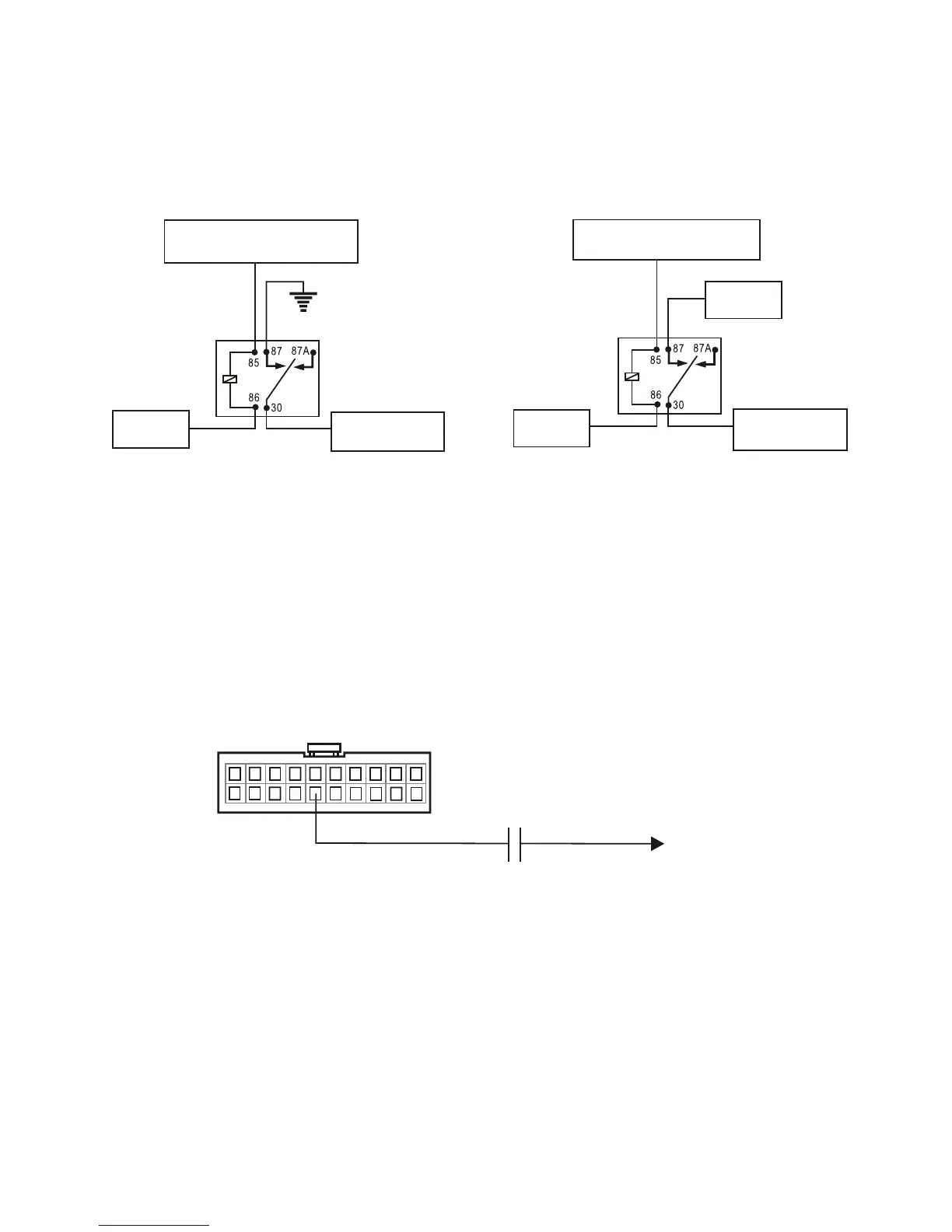

Relay for Negative (-) Disarm Wire
Relay for Positive (+) Disarm Wire
Yellow/black (-)
factory disarm output
Yellow/black (-)
factory disarm output
(+)12V
(+)12V
(+)12V
To disarm (-)
wire
To disarm (+)
wire
1 2 3 4 5 6 7 8 9
10
11
20
White/red wire
To Tachometer sensor
1.0 uf/250V
