EasyIO FW Series – User Reference v3.0
22
Both SSID (SSID 1 and SSID 2) and ethernet ports has a DHCP server built in. If you are connected to the
FW series controller via Wi-Fi or Ethernet you will obtain an IP address assign by the DHCP server.
The 2 ethernet ports on board function as a normal unmanaged network switch.
It supports 10/100 Mbps Half Duplex and Full Duplex.
For details explanation and configurations, please refer to EasyIO FW Network Configuration Guide.
**Important Note**
Supplied antennas are Wi-Fi 2.4Ghz, 2dBi antennas.
DO NOT use any other antenna which are not compatible with 2.4GHz Wi-Fi
In some installation where obstructions exist such as dry wall, concrete wall, air conditioning duct
works higher gain antenna is required to maintain its signal reception.
If required higher gain antenna can be purchase from any local computer store.
Antenna extension cable with magnetic base mount can also be used.
Do take note that using or extending the antenna with an antenna extension cable reduce its gain.
Generally for every 5 feet of antenna extension wire run it losses 2dBi.
Each dBi lost is equivalent to 20% of transmission power.
Maintain signal strength 65% and above for Wi-Fi best performance.

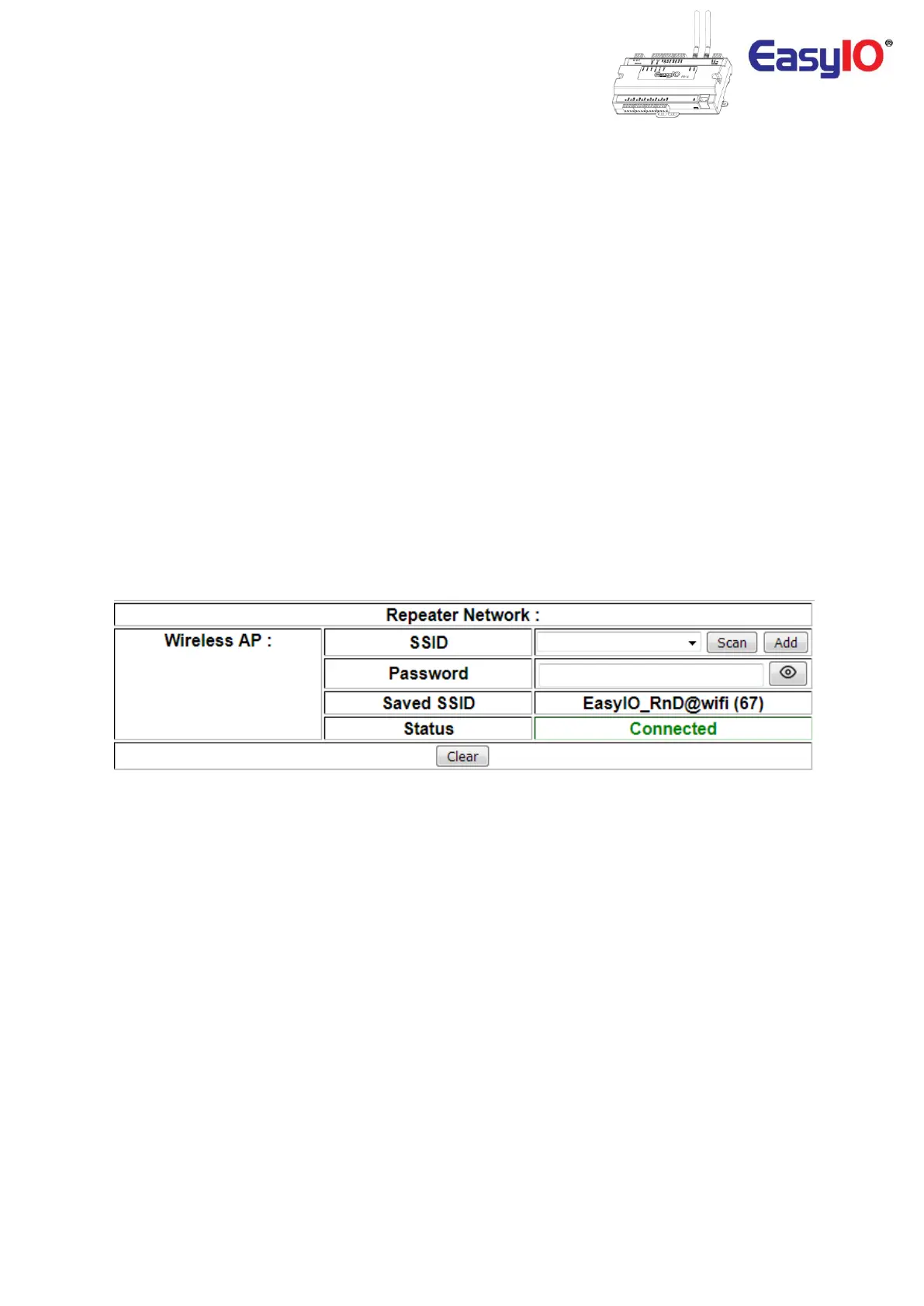

Image below shows signal strength of 67%.
This information is available in the “Network Configuration Page” access via the “Utility” menu at the
side bar.
