Eaton i-on16 Installation Guide

i-on16 Installation
Page 15
Figure
31.
Inserting I-RC01 Module
Output on KEY-KPZ01
The output on any KEY-KPZ01 is not available for
use with an i-on16.
Step 5. Fit and Connect I-
SD01 (Optional)
Safety Notice
Figure 32 identifies connectors for Safety Extra-Low
Voltage (SELV) and Telecommunications Network
Voltage (TNV) circuits on the control unit's main
PCB. These terms are used in accordance with the
definitions in Safety Standard EN60 950.
The Installer must ensure that TNV terminals are
connected only to other circuits designated as TNV
circuits (for example, the PTSN) and that SELV
terminals are connected only to other circuits
designated as SELV circuits. Strict adherence to the
installation instructions will ensure that the
equipment continues to comply with the safety
regulations to which it was approved.
1. SELV terminals
2. TNV terminals.
Figure
32.
SELV and TNV Terminals
CAUTION: Make sure that the end station is not
powered (either mains or battery) before fitting the I-
SD01.
Before fitting the I-SD01 module, check whether the
telephone line you intend to use is shared with an
ADSL (broadband) modem. If it is, then remove the
factory fitted jumpers from the SD01 and fit filter
ADSL01 as shown in Figure 33 .

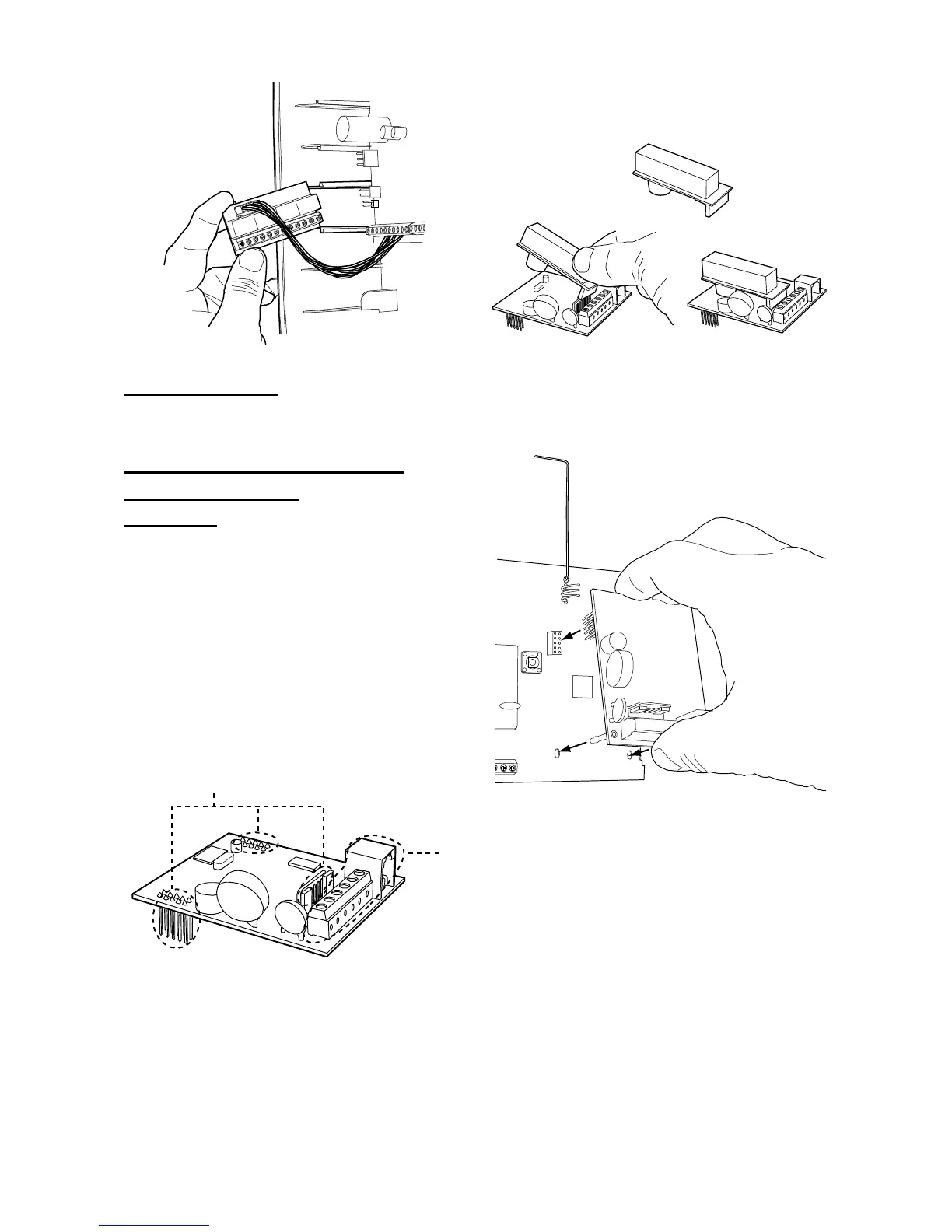

Figure
33.
Fitting ADSL01 to I-SD01
Note: If you are not fitting an ADSL01 then leave
the factory fitted jumpers in place.
Fit the I-SD01 to the plug on module sockets (see
11 on Figure 3).
Figure
34.
Fitting I-SD01 Module
The person connecting the I-SD01 module to the
PSTN must be suitably qualified. Connect the I-
SD01 telephone connector (see Figure 35) ONLY to
the PSTN or to other circuits designated as
Telecommunications Network Voltage.
1
2
ADSL01
