i-on16 Installation
Page 13
Keep the prox reader cable clear of cables
supplying sounders or extension loudspeakers.

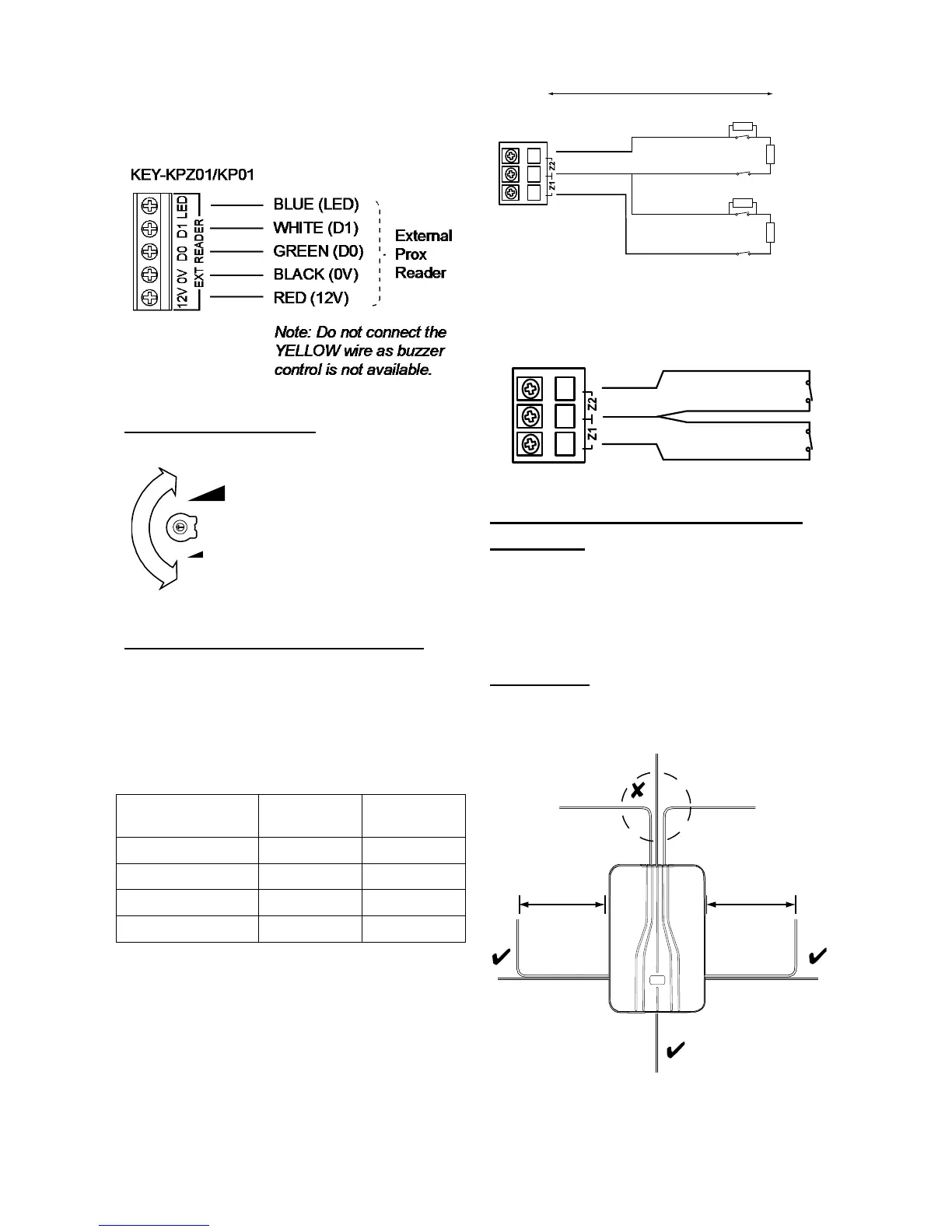

Figure 23 shows the wiring connections at the
keypad.
Figure
Connecting the External Prox Reader
Tone Volume – All Keypads
To adjust the volume of tones from the keypad:
Note: This control changes the
volume of non-alarm tones (for
example Exit/Entry tone). The
volume of alarm tones is fixed.
Adjusting Keypad Volume.
Connecting Wired Zones (KEY-KPZ01 only)
The KEY-KPZ01 provides terminals for up to two
zones. You must enable the zones from the Installer
Menu – Detectors/Devices – Wired Keypads – Edit
Keypad (keypad number) – Zones.
Once the zones are enabled they occupy the zone
numbers at the top of the numbering range,
depending on the address of the keypad.
To select the wiring type for the keypad zones use
Installer Menu - System Options - Wired Zone Type – All
Zones. Alternatively, to select the wiring type for an
individual keypad, use Installer Menu –
Detectors/Devices – Wired Keypads – Edit Keypad
(keypad number) – Wired Zone Type.
Figure 25 shows the wiring connections for FSL
zones on a KEY-KPZ01. Note that the resistance
values shows are examples.
Figure
Wiring FSL Zones on KEY-KPZ01
Figure 26 shows the wiring connections for Closed
Circuit Loop connections to the zones on a KEY-
KPZ01,
Figure
KEY-KPZ01 CCL Zone Wiring
Step 3. Connect End Station
to Mains
WARNING: ENSURE THAT THE MAIN SUPPLY IS
DISCONNECTED AND ISOLATED BEFORE
MAKING ANY MAINS CONNECTIONS. All mains
electrical connections must be carried out by a
qualified electrician and must comply with the
current local regulations (e.g. IEE).
Mains Cabling
Make sure that the mains supply cable does not run
vertically behind the aerials within the end station
case.
Figure
KEY-KPZ01
Zone 0
Zone 1
2K2 EOL
4K7
Alarm contacts
Tamper contacts
2K2 EOL
4K7
Alarm contacts
Tamper contacts
100 Ohms
Tamper Zone 1
Alarm Zone 1
KEY-KPZ01
