Introduction
2 Eaton Remote Power Panel (RPP) User’s Guide 164202125—Rev 5 www.eaton.com/powerquality
l
Front and rear barrier plate for isolating dual source inputs
l
Optional Energy Management System (EMS) monitoring on front and/or rear: EMS provides two levels of
configuration and metering, from basic activity monitoring to branch circuit monitoring (BCM). With BCM,
you can see the current values of each of the distribution branch breakers, letting you measure, plan, and
manage power with greater precision. EMS also provides communication options such as building alarm
monitoring and network connectivity.
l
Optional see-through doors allow you to visually inspect the state of branch circuit breakers without opening
the front doors.
l
Optional surge protection with Surge Protective Device (SPD)
l
Easy conversion to isolated ground by the customer.
Figure 1 shows an RPP.

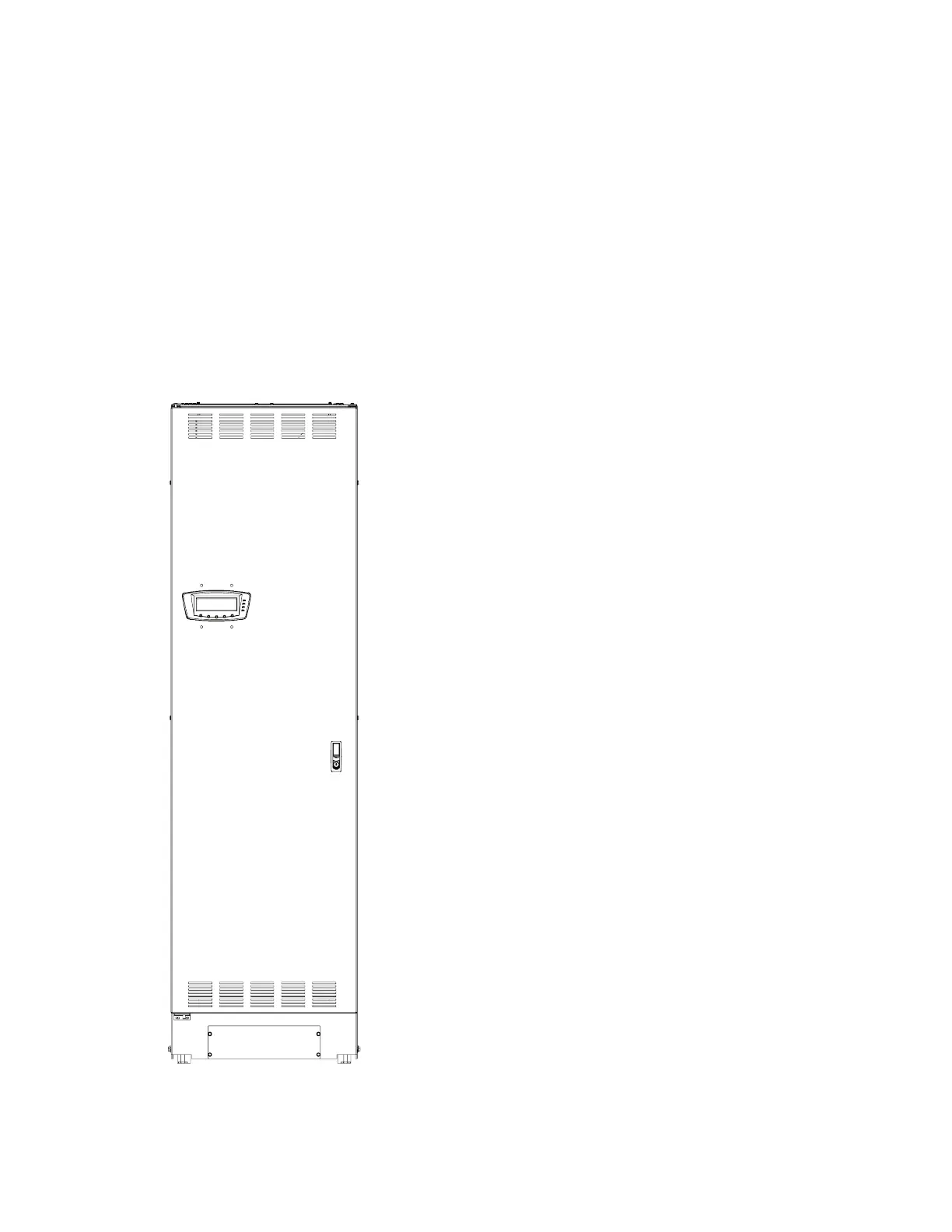

Figure 1. Small or Large RPP (Front View)
