Eaton Remote Power Panel - Figure 7. Wiring the Input Connections (each Side) for Single or Dual MLO RPP

Installation
16 Eaton Remote Power Panel (RPP) User’s Guide 164202125—Rev 5 www.eaton.com/powerquality

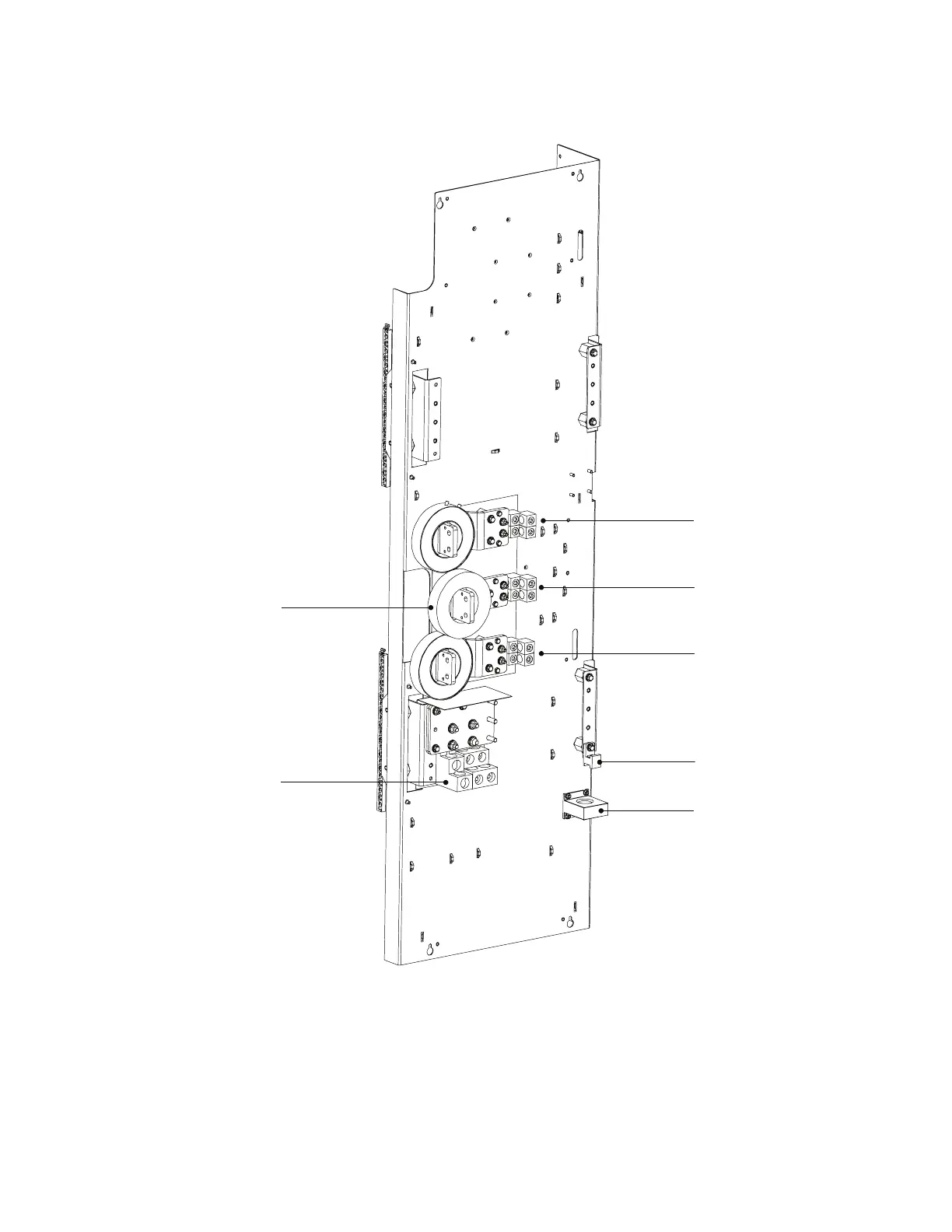

Figure 7. Wiring the Input Connections (each side) for Single or Dual MLO RPP
For chassis and
isolatd ground
connections,
see Figure 9 on
page 18.
Ground
}
Phase A
Neutral
Current CTs
(one per phase)
Phase B
Phase C
Ground CT
