User manual SEFELEC 5x Series 99 v1.06

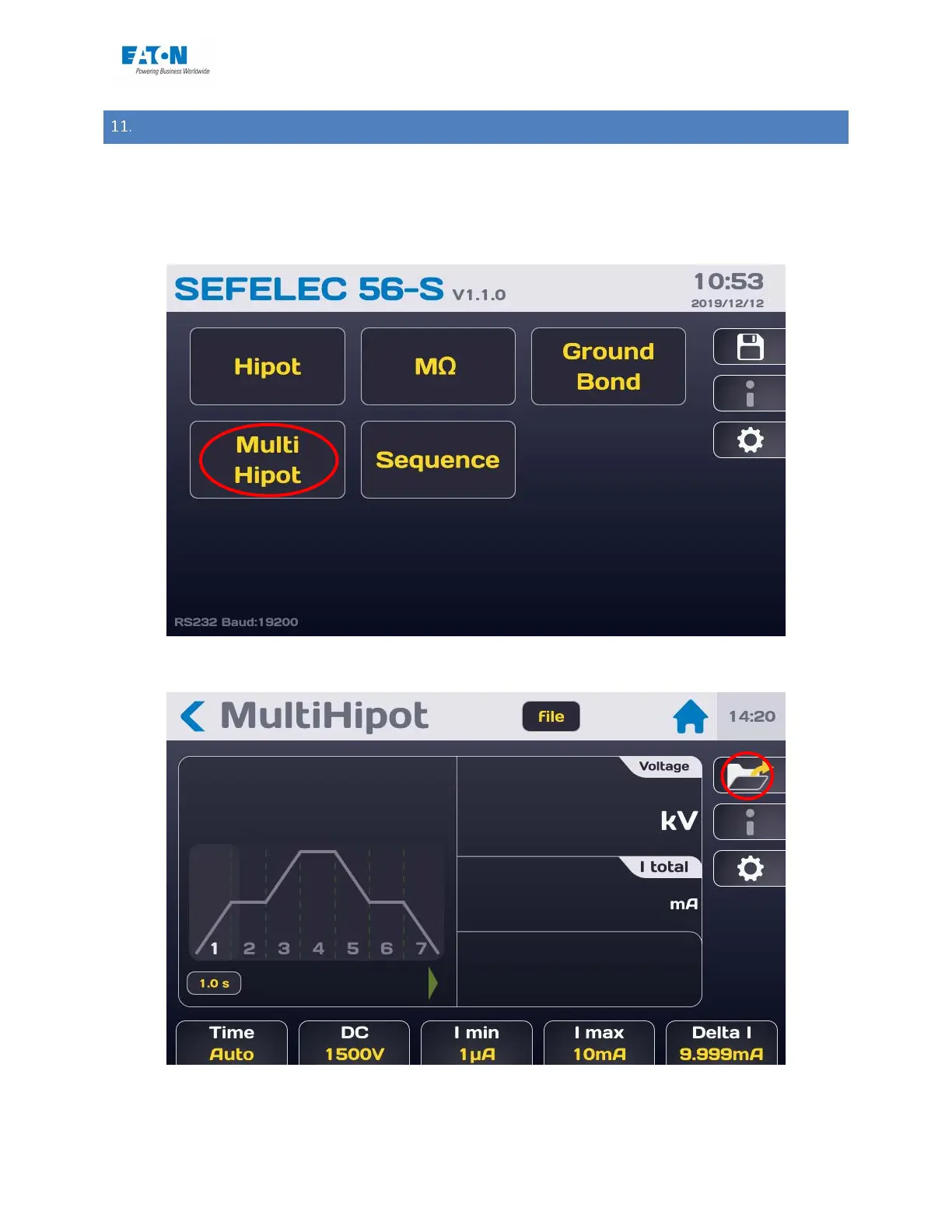

MULTI-SLOPE DIELECTRIC STRENGTH TESTS:

The multi-slope dielectric strength function enables us to produce a sequence of 7 voltage Rise,

Hold or Fall phases. If the device has a multi-slope dielectric strength function, press the key

from the following menu:

To obtain the following screen:
