User manual SEFELEC 5x Series 41 v1.06

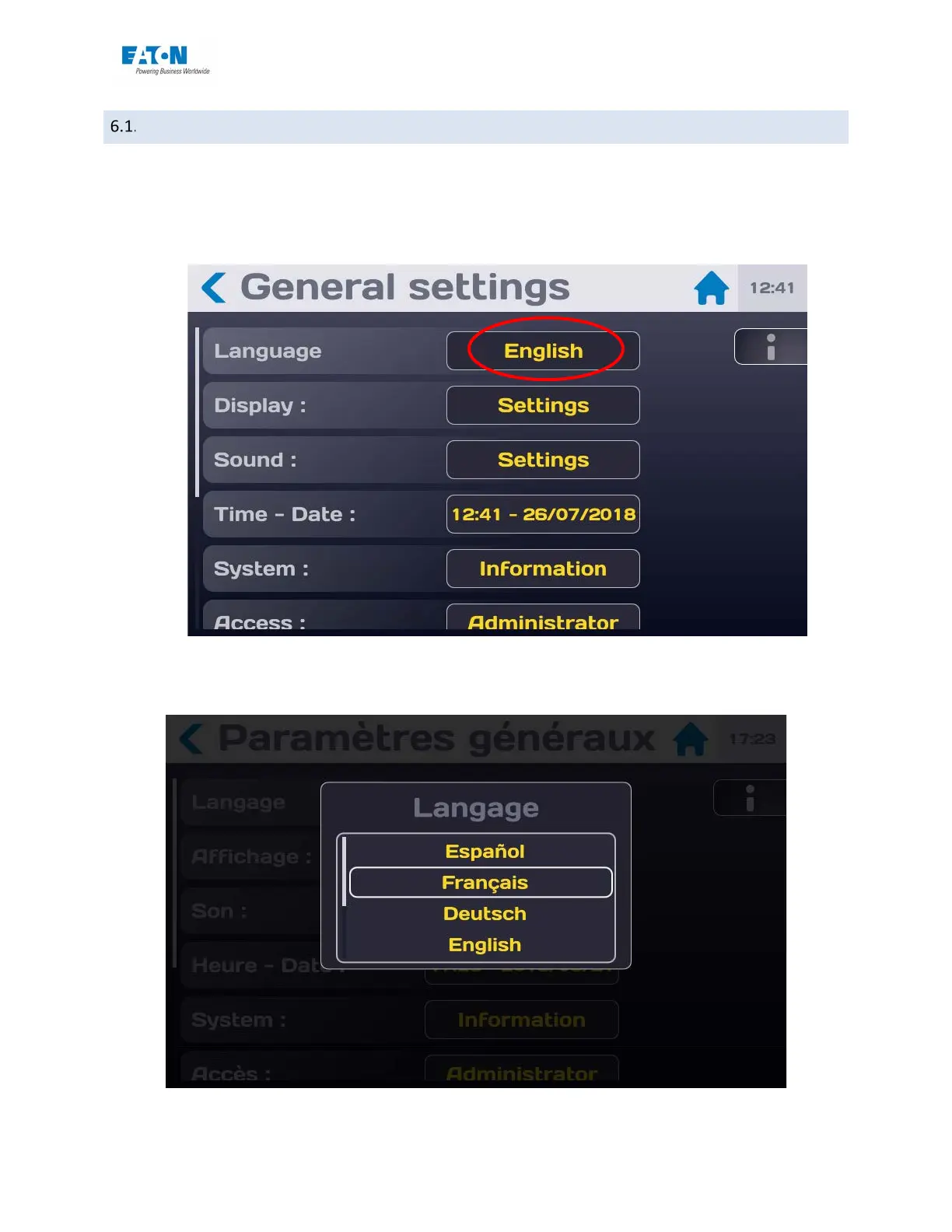

LANGUAGE SELECTION

The messages displayed on the screen can be in English, German, French, etc. To

choose a language, make the selection by pressing the field indicating the selected lan-

guage.

Then scroll through the different languages and select the new language by pressing again

on the field.
